Adding a VCR: Connecting to a Television and a Video Cassette Recorder
To recording from a VCR
Refer to “Recording from an External Device” ( 30).
Using a fully wired 21-pin Scart cable
– You can use a variety of Q Link functions by connecting the unit to a Q Link compatible television ( 42).
– You can enjoy high-quality viewing by connecting the unit to an RGB compatible television.
“AV1 Output” in the Setup menu is set to “RGB 1 (without component)” or “RGB 2 (without component)” ( 71).
Make “AV2 Input” settings in the Setup menu ( 71).
Use of the RF coaxial cable
Keep the RF coaxial cables as far away as possible from other cables.
Do not roll up the RF coaxial cables.
RF IN
AV
RF IN
RF IN
HDMI OUT
HDMI IN
RF OUT
RF OUT
AV
This unit
TV
VCR

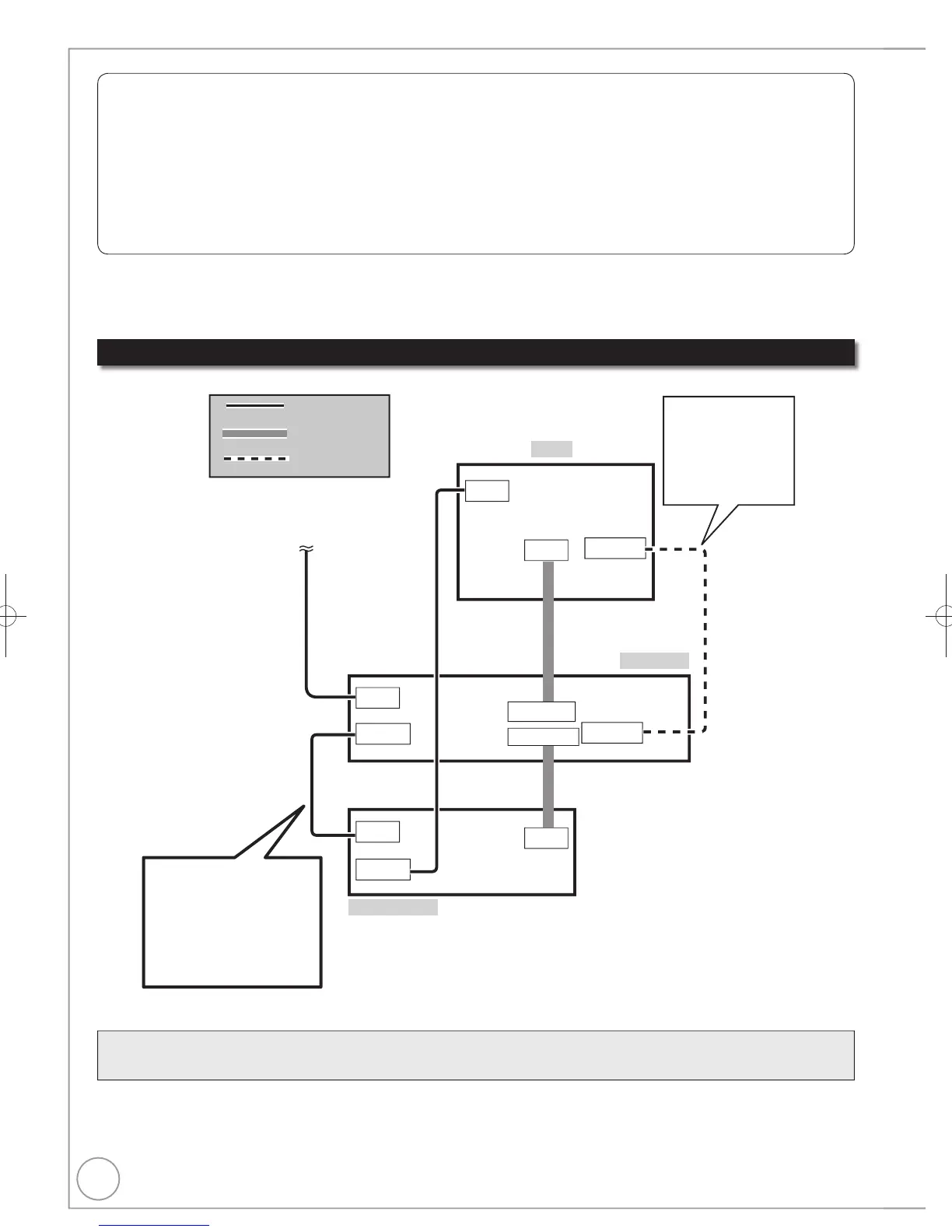

HDMI cable
21-pin Scart cable
RF coaxial cable
AV1(TV)
AV2 (EXT)
You can enjoy
high-quality picture
by adding
the HDMI cable
connection12
To the aerial
Before connection, turn off the mains for all connected equipment and read the appropriate operating instructions.
Connect AC mains lead only after all other connections are complete.
BE SURE TO READ THE CAUTION FOR THE AC MAINS LEAD ON PAGE 3 BEFORE CONNECTION.
Additional Connections
The RF coaxial cable cannot
be used for showing pictures
from the unit.The unit must
be connected using another
method, e.g.21-pin Scart cable
to show pictures from the unit
on the television set.
