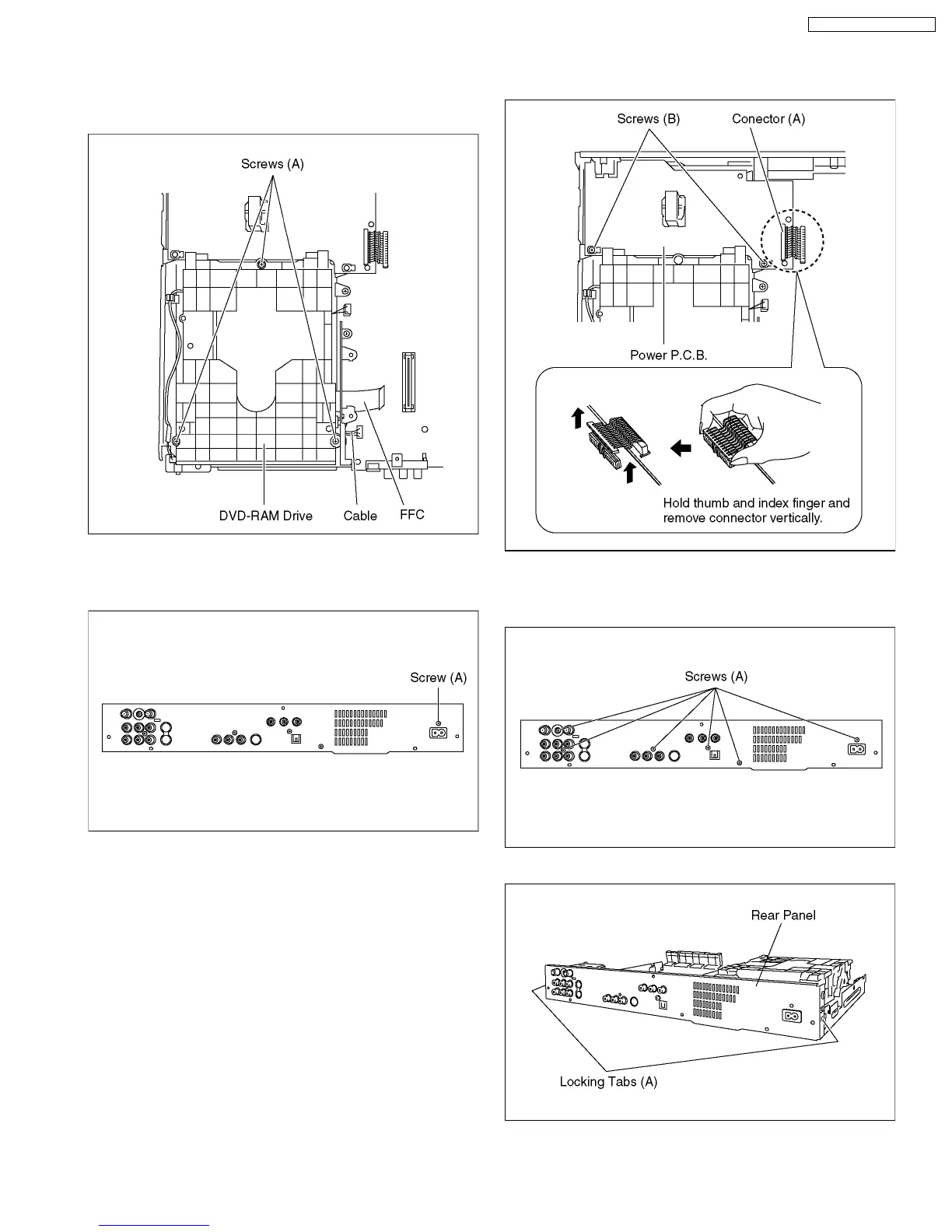

10.6. DVD-RAM Drive
1. Remove 3 Screws (A) to remove DVD-RAM Drive.
2. Lift up DVD-RAM Drive slightly and remove FFC and
remove Cable between DVD-RAM Drive and Main P.C.B.
10.7. Power P.C.B.
1. Remove Screw (A).
2. Remove 2 Screws (B) and disconnect Connector (A) to
remove Power P.C.B.
10.8. Rear Panel
1. Remove 6 Screws (A).
2. Unlock 2 Locking Tabs (A) to remove Rear Panel.
