Panasonic DMR-ES10P

19 Print Circuit Board
19.1. Power P.C.B.
1
A
B
C
D
E
23456789

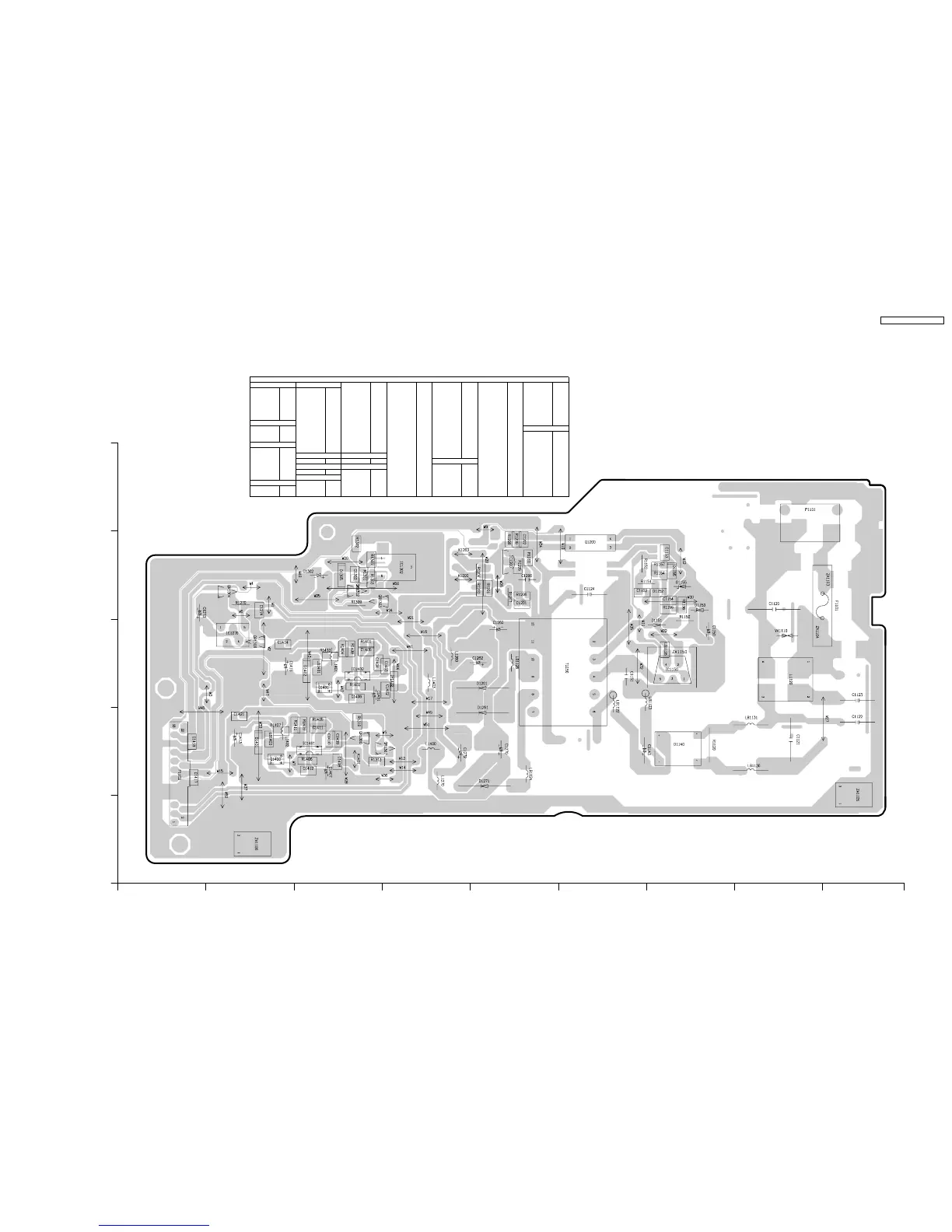

Power P.C.B.
DMR-ES10P/PC
Power P.C.B.
(VEP71105A)
L1400 B-4 C1143 B-6 C1405 C-3 R1156 D-7 R1403 C-3
IC1150 C-7 D1140 B-7 L1401 C-3 C1150 C-7 C1406 C-3 R1157 D-7 R1404 C-3
IC1200 D-5 D1151 C-7 L1402 B-2 C1151 C-6 C1407 B-3 R1200 D-5 R1405 B-3
IC1270 C-2 D1152 D-7 L1403 C-4 C1152 D-6 C1408 B-3 R1201 D-5 R1406 B-3
IC1302 D-4 D1153 D-7 LB1122 C-6 C1153 D-7 C1409 B-3 R1204 D-5 R1407 B-2
IC1401 B-3 D1155 D-7 LB1123 C-6 C1154 D-7 C1410 B-3 R1205 D-5 R1408 C-3
IC1402 C-3 D1156 D-7 LB1124 B-5 C1200 D-5 C1411 B-3 R1206 D-5 R1409 B-3
D1201 C-5 LB1125 C-5 C1201 D-5 C1412 B-3 R1207 D-5 R1411 B-3
Q1200 D-6 D1261 B-5 LB1126 C-7 C1202 D-5 C1413 B-2 R1208 D-5
Q1400 B-2 D1271 B-5 LB1130 B-8 C1260 C-5 C1414 C-2 R1209 D-5 VA1110 C-8
Q1401 C-3 D1305 D-3 LB1131 B-8 C1262 C-5 C1415 C-2 R1210 D-5
D1401 B-2 LB1400 B-2 C1270 B-5 C1417 B-1 R1270 D-2
QR1300 B-3 D1402 C-3 LB1401 C-3 C1272 B-4 C1418 B-1 R1301 D-3
QR1302 D-3 C1273 D-1 C1421 B-2 R1302 D-3
QR1303 D-3 IP1402 C-4 F1101 D-8 C1274 D-2 R1303 D-3
QR1304 D-2 C1302 D-3 R1120 B-7 R1305 D-3
QR1307 B-4 T1150 C-6 C1120 D-8 C1303 D-3 R1150 C-7 R1309 D-3
QR1308 C-2 C1121 B-8 C1401 C-3 R1151 D-6 R1310 B-3
L1120 C-8 C1122 B-9 C1402 C-4 R1152 D-6 R1313 B-3
P1101 E-8 L1260 C-4 C1123 C-9 C1403 C-4 R1154 D-7 R1401 C-3
P1102 B-1 L1270 B-4 C1124 D-6 C1404 C-3 R1155 D-7 R1402 C-3
Power P.C.B.
Integrated Circuit
Transistor
Transistor-resistor
Connector
Diode
IC Protector
Transformer
Coil
Fuse
Capacitor
Resistor
Varistor
DMR-ES10P / DMR-ES10PC
51
