Panasonic DMR-ES10P

11 Service Fixture and Tools
Part Number Description Compatibility
RFKZ0125 Extension FFC (Digital P.C.B. - DVD-RAM Drive / 40 Pin) Same as E50/ E55 series
RFKZ0126 Extension Cable (MainP.C.B. - DVD-RAM Drive/ 4 Pin) Same as E30/HS2 series
RFKZ0216 Extension Cable (MainP.C.B. - Power P.C.B. / 23 Pin) Same as E55 series
RFKZ0260 Extension Cable (MainP.C.B. - Digital P.C.B. / 88 Pin) New
12 Service Positions
Note:
For description of the disassembling procedure, see the section 10.

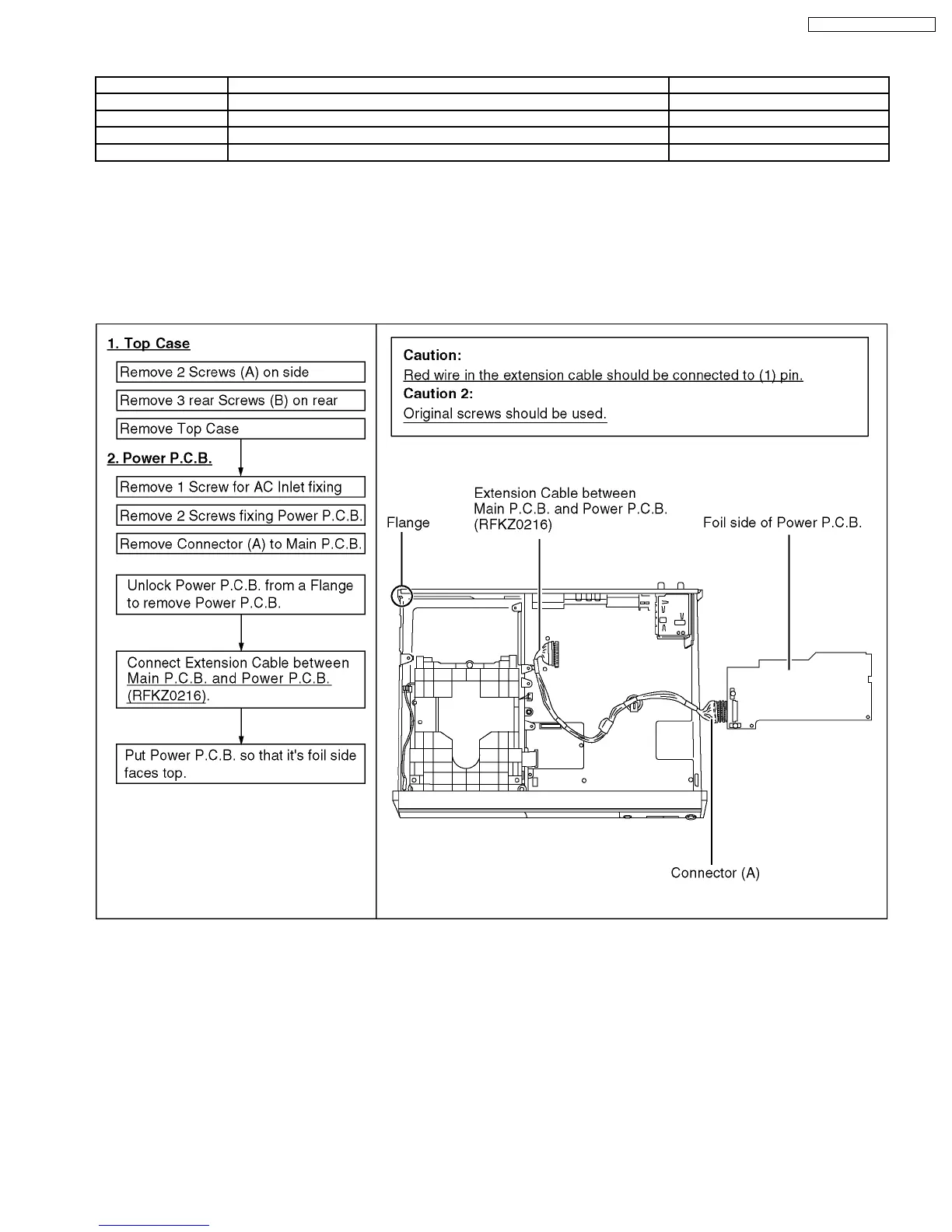

12.1. Checking and Repairing of Power P.C.B.
23
DMR-ES10P / DMR-ES10PC
