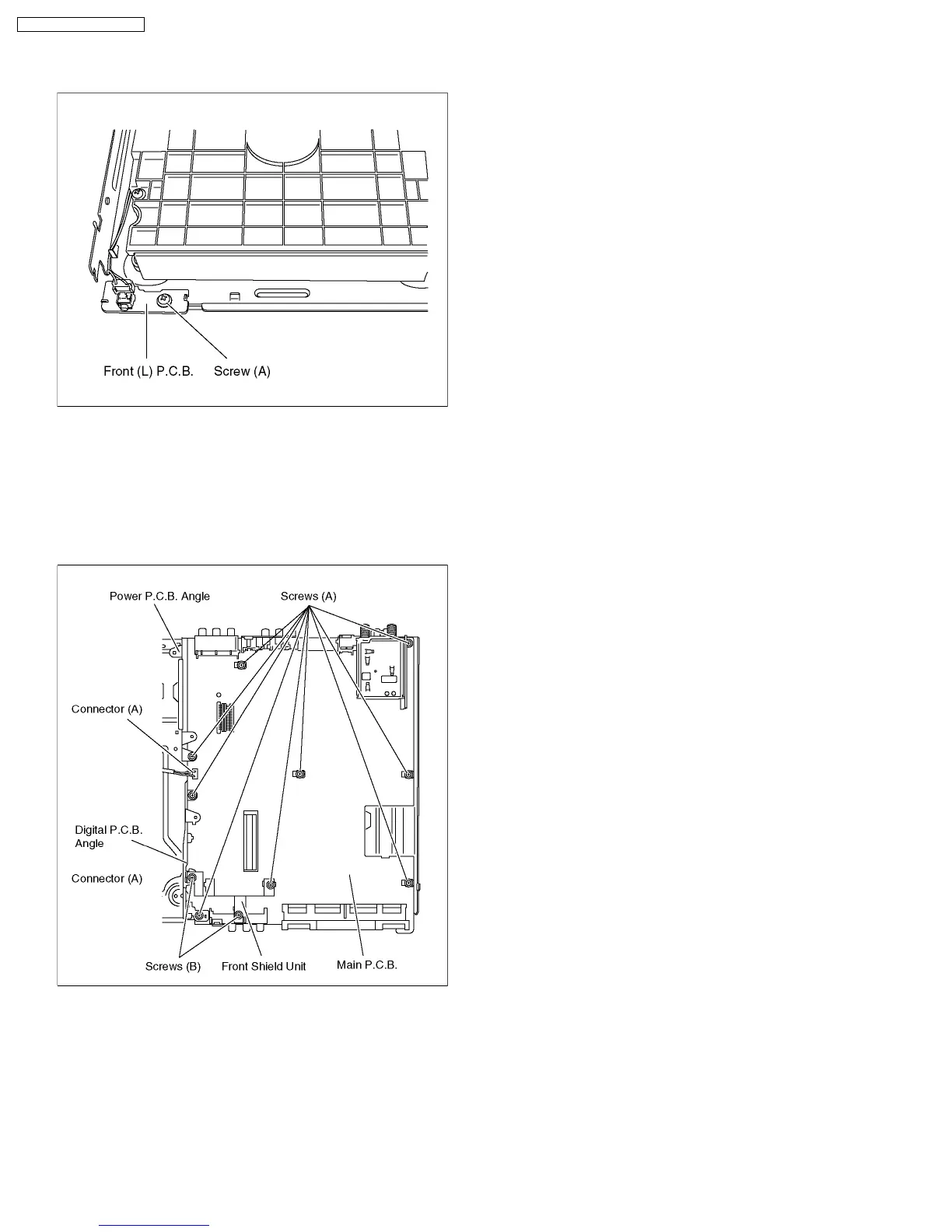

10.9. Front (L) P.C.B.
1. Remove a Screw (A) to remove Front (L) P.C.B.
10.10. Main P.C.B.
1. Disconnect Connector (A) for Front (L) P.C.B.
2. Remove 9 Screws (A),.2 Screws (B)
3. Remove Power P.C.B. Angle, Digital P.C.B. Angle and
Front Shield Unit, and disconnect Connector (A) to remove
Main P.C.B.
22
DMR-ES10P / DMR-ES10PC
