14.4. TOP CASE

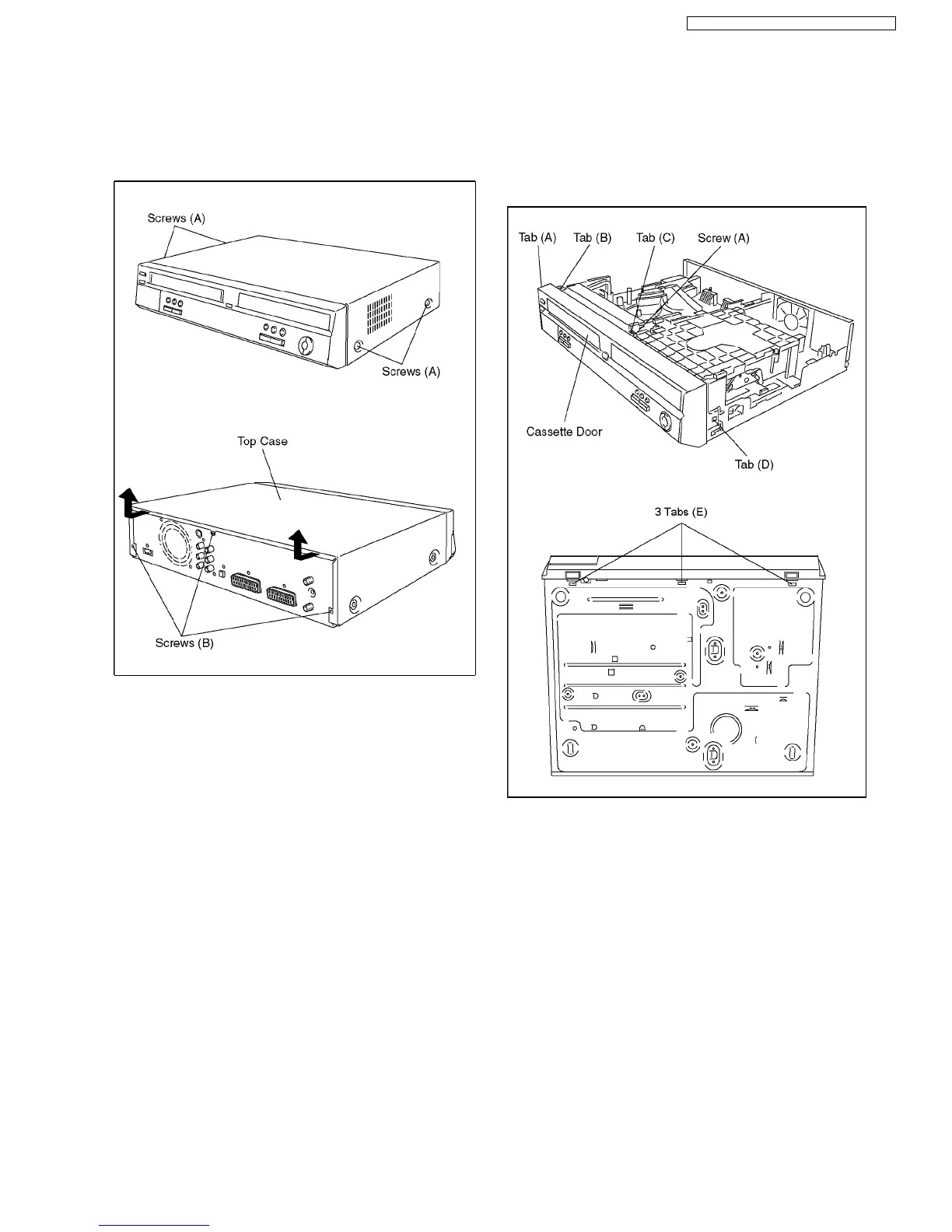

1. Remove the 4 screws (A) and 3 screws (B).
2. Slide the Top Case for rear direction slightly, and open the
both ends at rear side of the Top Case a little and lift up the
Top Case for the direction of the arrows.
14.5. FRONT PANEL
1. Remove one screw (A).
2. Unlock tab (A) and tab (B) simultaneously.
3. Unlock tab (C) and tab (D) simultaneously.
4. Unlock 3 tabs (E) respectively and pull out Front Panel with
connector slightly.
31
