14.12. DIGITAL P.C.B.

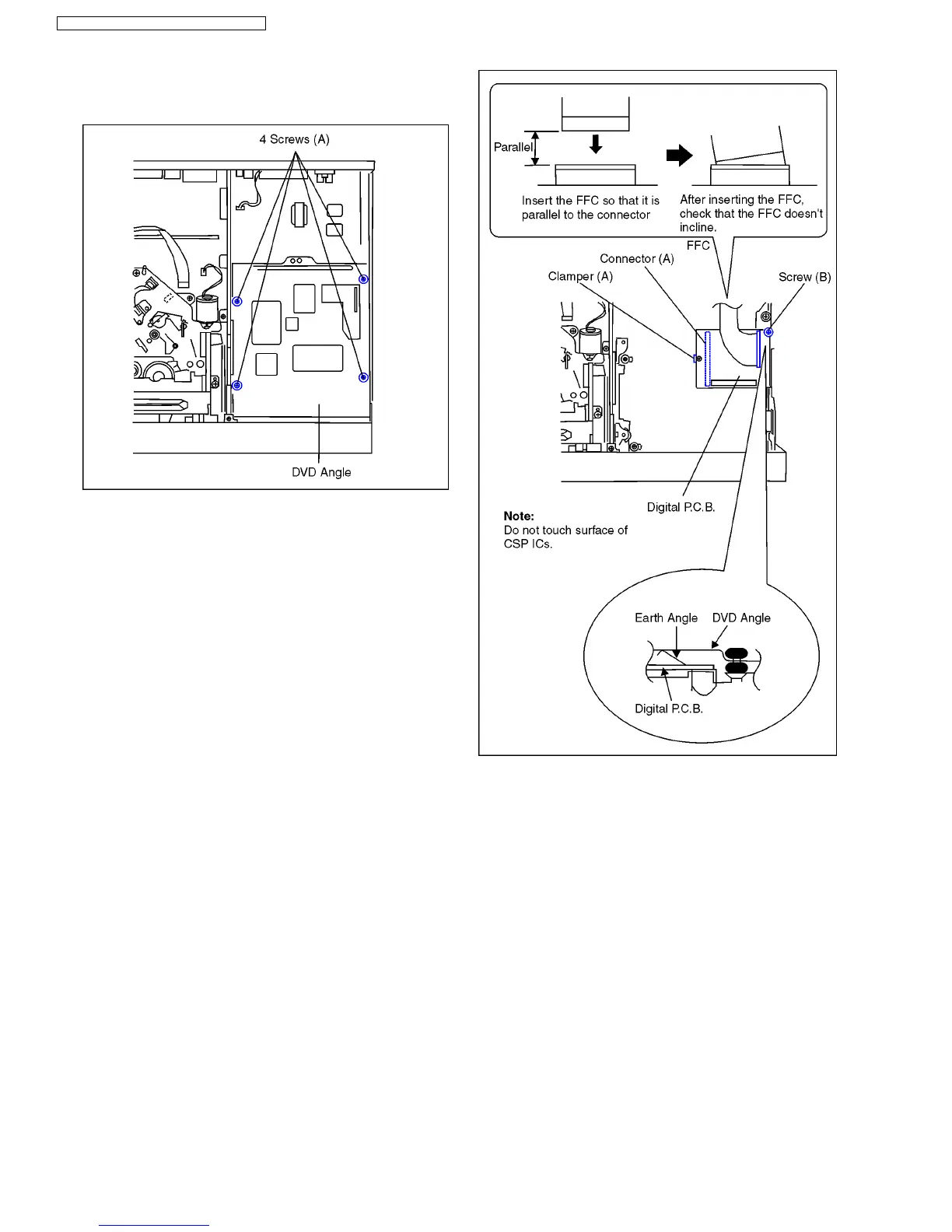

1. Remove 4 Screws (A) and DVD Angle.
2. Disconnect FFC.
3. Remove Screw (B).
4. Unlock Clamper (A), pay attention to Connector (A), and
pull out Digital P.C.B. to disconnect Connector (A).
CAUTION 1:
When replacing Digital P.C.B., pay attention to inserting
FFC, and be careful to do not touch surface of CSP ICs.
If you have touched surface of CSP IC, clean up with
alcohol and so on to prevent oxidation.
CAUTION 2:
When attaching Digital P.C.B. on to Earth Angle, Earth
Angle should be touches to DVD angle as shown below.
36
DMR-ES30VEG / DMR-ES30VEC / DMR-ES30VEB
