Panasonic DMR-ES30VEG

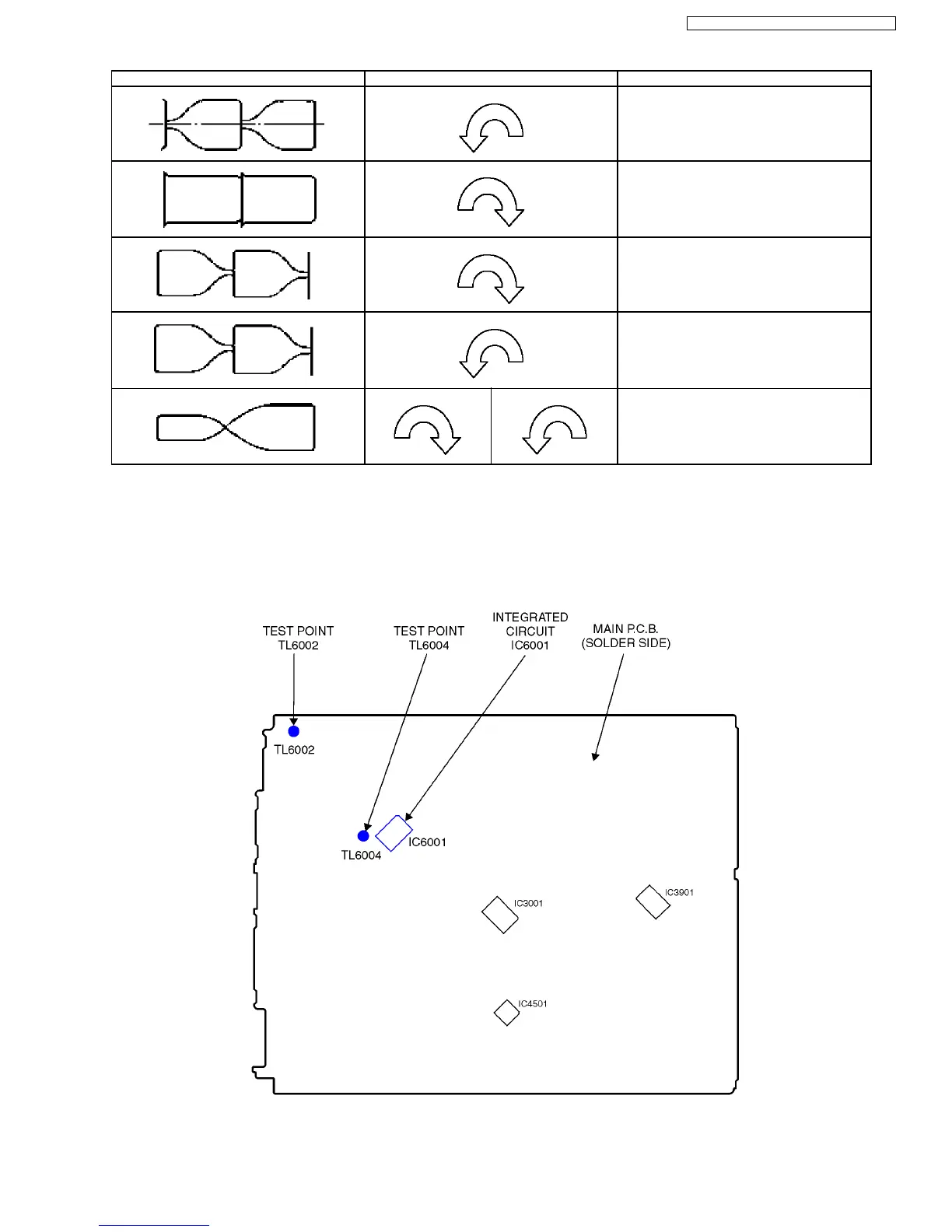

Envelope Post Name Adjustment Method
P2 Post Turn P2 Post counter-clockwise
(Approx. 1/2 revolution)
P2 Post Turn P2 Post clockwise
(Approx. 1/4 revolution)
P3 Post Turn P3 Post clockwise
(Approx. 1/2 revolution)
P3 Post Turn P3 Post counter-clockwise
(Approx. 1/4 revolution)
P2 Post P3 Post Turn P2 Post clockwise
(Less than 1 revolution)
Turn P3 Post counter-clockwise
(Less than 1revolution)
18.3. (VHS) CAUTION AFTER REPLACING VHS MICROPROCESSOR (IC6001)
After replacing VHS Microprocessor IC6001, if the unit does not operate normally, reset IC6001.
1. Turn on the power.
2. Short out circuit between TL6004 (RESET_L) and TL6002 (GND) momentarily to reset IC6001.
45
DMR-ES30VEG / DMR-ES30VEC / DMR-ES30VEB
