Panasonic DMR-ES30VEG

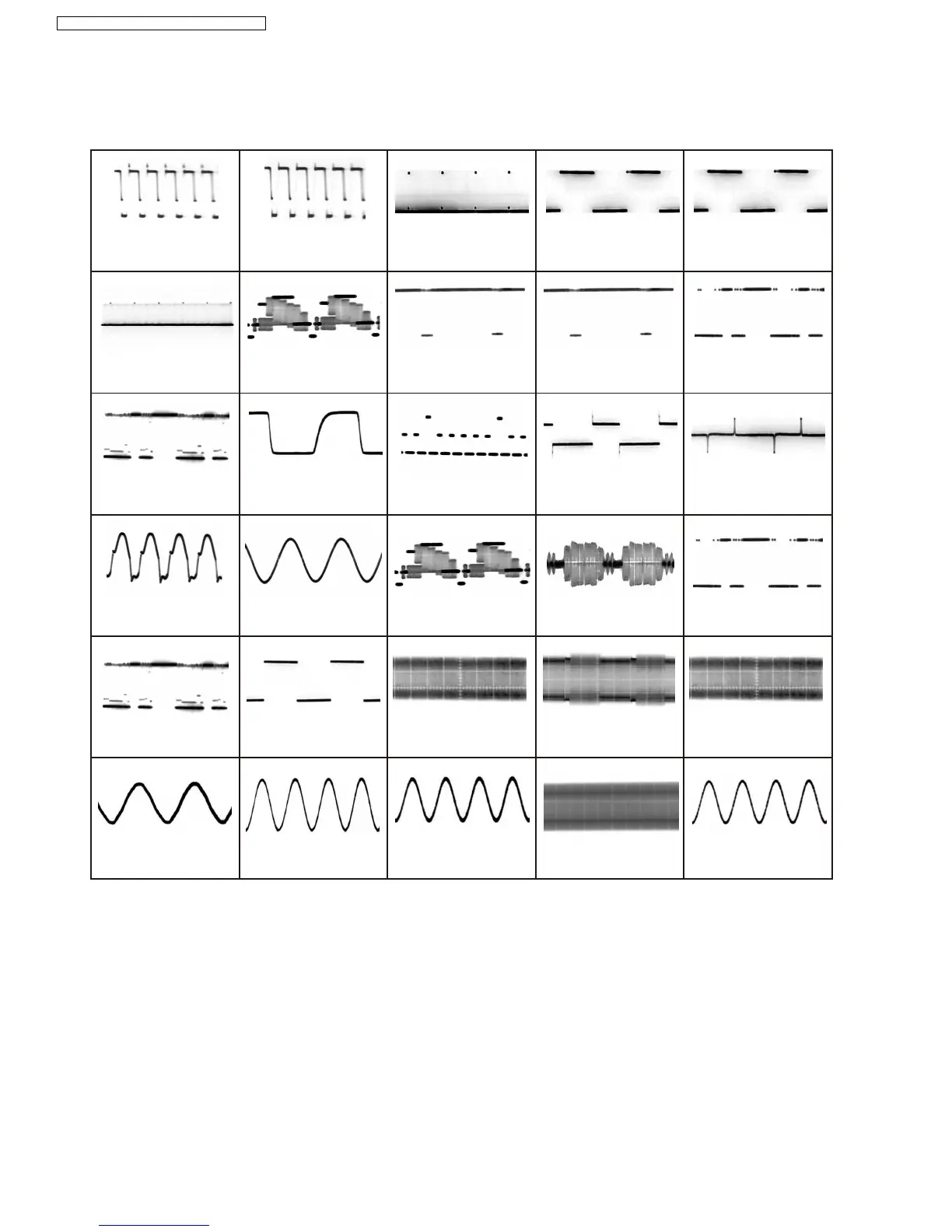

20.1. WAVEFORM CHART
NOTE:
The waveforms are measured with PAL colour bar signal.
IC6001-71 REC
5.0Vp-p (10msec.div.)
IC3001-98 REC
2.4Vp-p (1msec.div.)
IC3001-96 PLAY
5.0Vp-p (5msec.div.)
IC3001-86 REC
1.5Vp-p (5msec.div.)
IC3001-85 PLAY
1.5Vp-p (20µsec.div.)
IC6001-72 REC
5.0Vp-p (10msec.div.)
IC6001-90 REC
5.0Vp-p (10msec.div.)
IC6001-94,95 REC
6.0Vp-p (10msec.div.)
IC6001-97 PLAY
4.5Vp-p (10msec.div.)
IC2501-2,4 REC
12Vp-p (5msec.div.)
IC6001-70 REC
5.0Vp-p (10msec.div.)
IC6001-68,69 REC
5.0Vp-p (10msec.div.)
IC6001-13 PAUSE
5.0Vp-p (10msec.div.)
IC6001-18 REC
5.0Vp-p (10msec.div.)
IC6001-19 REC
5.0Vp-p (10msec.div.)
IC6001-48 REC
0.5Vp-p (10msec.div.)
IC3001-87 PLAY
1.5Vp-p (20µsec.div.)
IC3001-73 REC/PLAY
5.0Vp-p (5msec.div.)
IC3001-74 REC/PLAY
5.0Vp-p (5msec.div.)
IC3001-15,17,19 REC
1.1Vp-p (20µsec.div.)
IC3001-80 REC/PLAY
0.6Vp-p (10msec.div.)
IC3001-45,46 PLAY
0.5Vp-p (20µsec.div.)
IC3001-6 REC/PLAY
0.9Vp-p (0.5msec.div.)
IC6001-79,80 FF/REW
5.0Vp-p (1msec.div.)
IC6001-52 REC
2.1Vp-p (20µsec.div.)
T1101-5 STOP
50Vp-p (5µsec.div)
T1101-6 STOP
0.2Vp-p (5µsec.div)
IC4501-9,14 REC
100mVp-p (1msec.div.)
IC4501-53,57 REC/PLAY
1.9Vp-p (0.2msec.div.)
IC4501-21(TW4501) REC
1.5Vp-p (20µsec.div.)
52
DMR-ES30VEG / DMR-ES30VEC / DMR-ES30VEB
