6.1.1. (DVD) FORCIBLE DISC EJECT
6.1.1.1. (DVD) WHEN THE POWER CAN
BE TURNED OFF.
1. Turn off the power and press [STOP], [CH UP] keys on the
front panel simultaneously for 5 seconds.
6.1.1.2. (DVD) THE POWER CAN NOT BE
TURNED OFF.
1. Press [POWER] key on the front panel for over 10 seconds
to turn off the power forcibly and press [STOP] [CH UP]
keys on the front panel simultaneously for 5 seconds.
6.1.2. (DVD) WHEN THE FORCIBLE DISC
EJECT CAN NOT BE DONE.
1. Turn off the power and pull out AC cord.
2. Remove the Top Case.

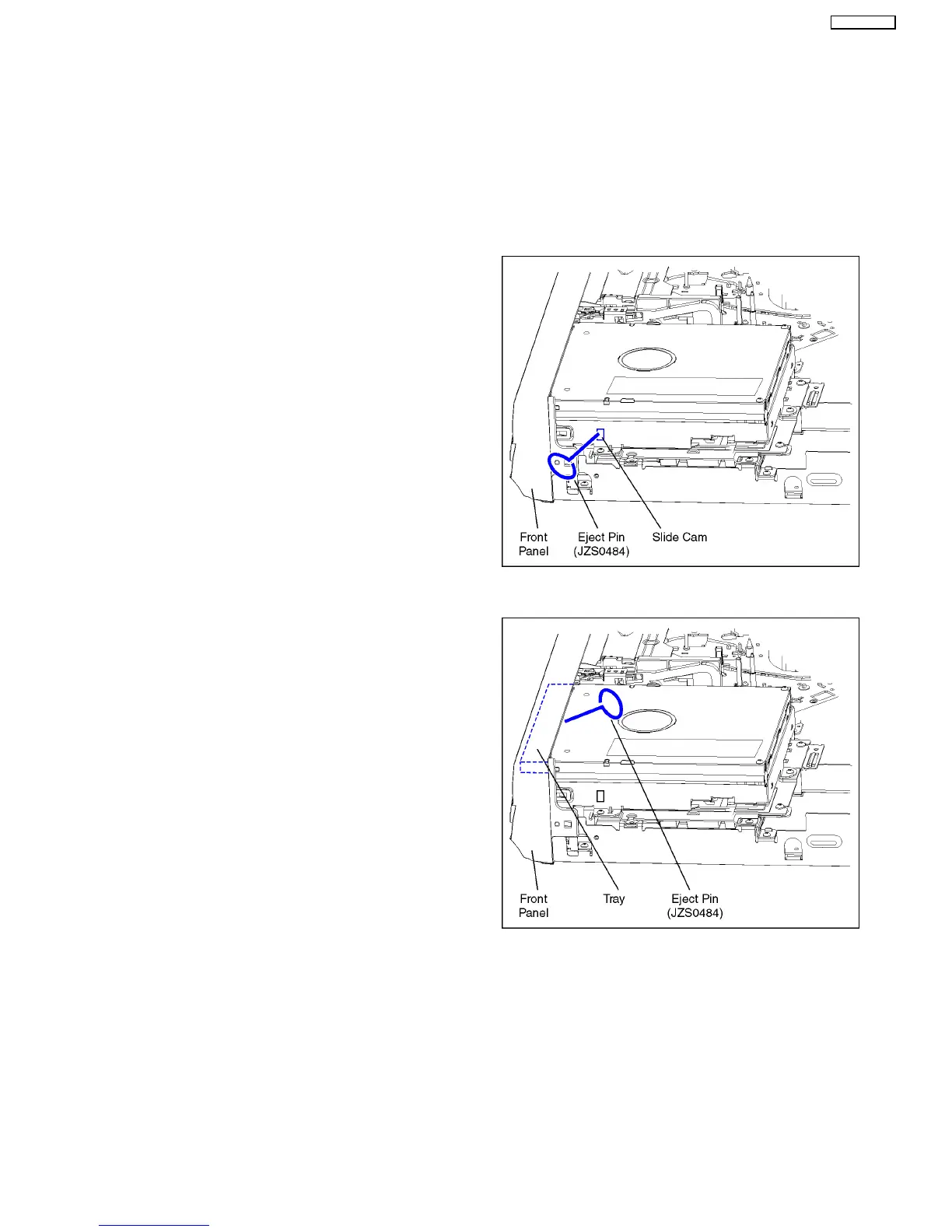

3. Push in SLIDE CAM by Eject Pin (JZS0484) or minus screw
driver (small) to eject tray slightly.
4. Push out Tray by Eject Pin (JZS0484) or minus screw driver
(small).
6 OPERATING INTRUCTIONS
6.1. (DVD) TAKING OUT THE DISC FROM RAM-DRIVE UNIT WHEN THE
DISC CANNOT BE EJECTED BY OPEN/CLOSE BUTTON
11
DMR-EZ45VEB
