7.2.3.1.3. CLEAR FOR THE SELF-DIAGNOSIS HISTORY
1. Press STOP and EJECT buttons simultaneously over 5 seconds during turning on Service Information Display mode.
7.2.3.1.4. INDICATION OF THE SELF-DIAGNOSIS HISTORY

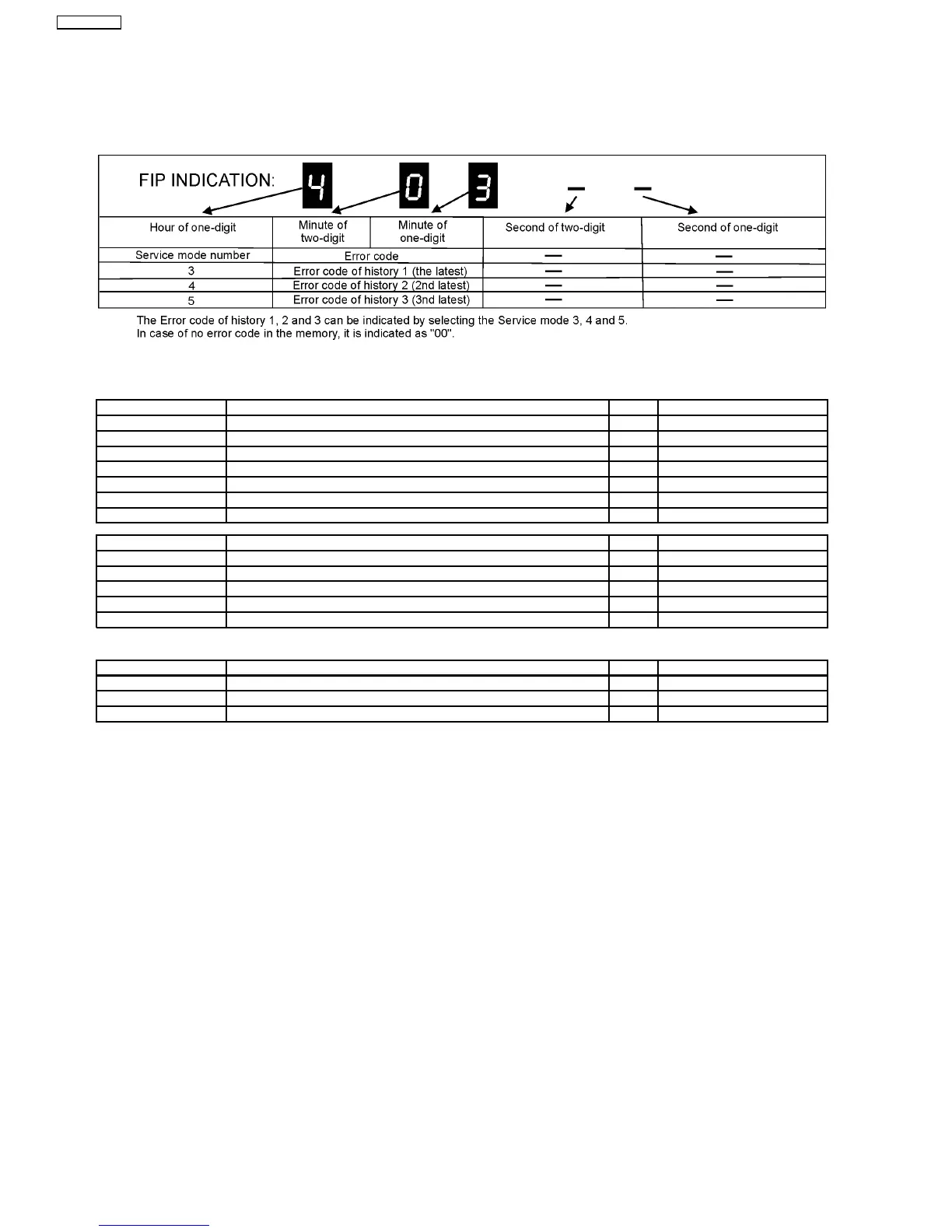

The self-diagnosis histories can be indicated on the FIP with Service Mode number 3 to 5.
The procedure of service mode setting and indication format are the same as usual.
8 SERVICE FIXTURE AND TOOLS
Part Number Description Pcs Compatibility
RFKZ03D01K Lead Free Solder (0.3 mm / 100 g Reel) 1 Same as ES15
RFKZ06D01K Lead Free Solder (O.6 mm / 100 g Reel) 1 Same as ES15
RFKZ010D01 Lead Free Solder (1.0 mm / 100 g Reel) 1 Same as ES15
RFKZ0316 Solder Remover (Lead free 10 W temperature Solder / 180 g) 1 Same as ES15
RFKZ0328 Flux 1 Same as ES15
RFKZ0329 Bottle of Flux 1 Same as ES15
JZS0484 Eject Pin 1 Same as ES15
Part Number Description Pcs Compatibility
RFKZ0240 Extension Cable (Main P.C.B. - Power & Digital I/F P.C.B. / 19 pin) 1 Same as E75V
RFKZ0327 Extension Cable (Main P.C.B. - Power & Digital I/F P.C.B. / 15 pin) 2 New
RFKZ0260 Extension Cable (Power Digital I/F P.C.B. - Digital P.C.B. / 88 pin) 1 Same as EH50 series
RFKZ0366 Extension Cable (HDMI P.C.B. - Digital P.C.B. / 40 pin / 500 mm) 1 Same as EH55 / EH56 series
RFKZ0239 Extension Cable (to Front Jack P.C.B. and FL P.C.B. / 10 pin) 4 Same as E75V
(for VHS)
Part Number Description Pcs Compatibility
VFJ8125H3F PAL VHS Alignment Tape 1 Same as E75V
VFK0329 Post Adjustment Screwdriver 1 Same as E75V
VFK0330 Fine Adjustment Gear Driver 1 Same as E75V
