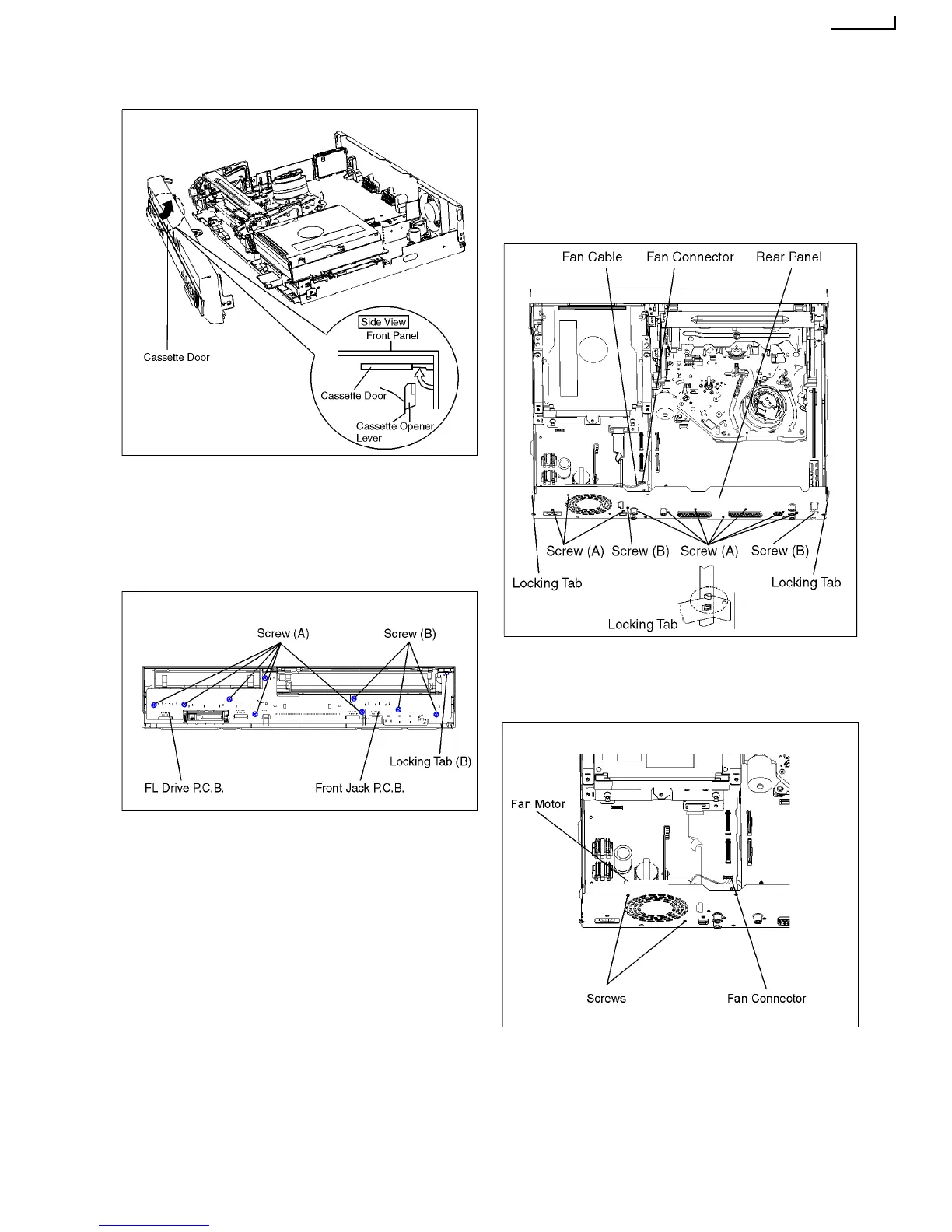

Note:
When attaching Front Panel, in order to hook Cassette
Door Opener Lever to Cassette Door, push up cassette
door in the direction of arrow and insert a front panel.
9.6. FRONT JACK P.C.B. & FL
DRIVE P.C.B.
1. Remove one 6 screws (A) to remove FL Drive P.C.B.
2. Remove 3 screws (B) and unlock the Locking Tab (B) to
remove Front Jack P.C.B.
9.7. REAR PANEL & FAN MOTOR
1. Remove 10 Screws (A), Screw (B)
and Fan Connector.
2. Unlock 2 Locking Tabs to remove Rear Panel
with Fan Motor.
3. Attention when inserting Rear Panel:
Don’t shut the Fan Cable between Rear Panel
and Chassis.
Check that the Locking Tabs on both sides on
the Rear Panel snap into the holes of the Chassis.
9.7.1. ONLY FAN MOTOR
1. Remove 2 Screws and Fan Connector
to remove Fan Motor.
29
DMR-EZ45VEB
