10.2. CAUTION FOR REPLACING PARTS
10.2.1. NOTICE AFTER REPLACING DVD-RAM/DIGITAL P.C.B. MODULE
TM AV1 is displayed after replacing DVD-RAM/Digital P.C.B. Module. Power-off and start-up again.
10.2.2. NOTICE FOR REPLACING PARTS OF VHS MECHANISM
10.2.2.1. REGARDING CHANGE OF PARTS OF VHS MECHANISM
The following parts are not compatible with past R4 Mechanism. Use parts of exclusive use.
Ref. No. Part Name Part Number Pcs
Current Previous
101 RDD CYLINDER ASS’Y VEG1699KIT VEG1648T/VEG1648-DT 1 *1
101-1 FPC HOLDER VMD5464 VMD4983 1
102 CAPSTAN MOTOR VEM0800T VEM0750T 1
105 INTERMEDIATE GEAR VDG1686 VDG1510 1
106 MAIN CAM GEAR VDG1685 VDG1511 1
114 OPENER PIECE VMD5466 VMD4252 1
116 MAIN LEVER VML3934 VML3624 1
117 PINCH CHARGE ARM VML3933 VML3626 1
122 AC HEAD ASS’Y L1AE00000044 L1AE00000036 1
130 T BRAKE ARM VXL3343 VXL3113 1
135 SIDE PLATE L VMD5468 VMD4255 1
136 SIDE PLATE R VMD5469 VMD4254 1
137 CASSETTE HOLDER UNIT VXA8265 VXA7110 1
139 SECTOR GEAR VXA8323 VXA7311 1
*1: Part Number off RDD CYLINDER ASS’Y is different depending on the model.
Capstan Motor (VEM0800T) used for current R4 Mechanism is not compatible with
Capstan Motor (VEM075oT) of previous R4 Mechanism.
Therefore, confirm part number by Service Manual of individual models and use part of exclusive use.

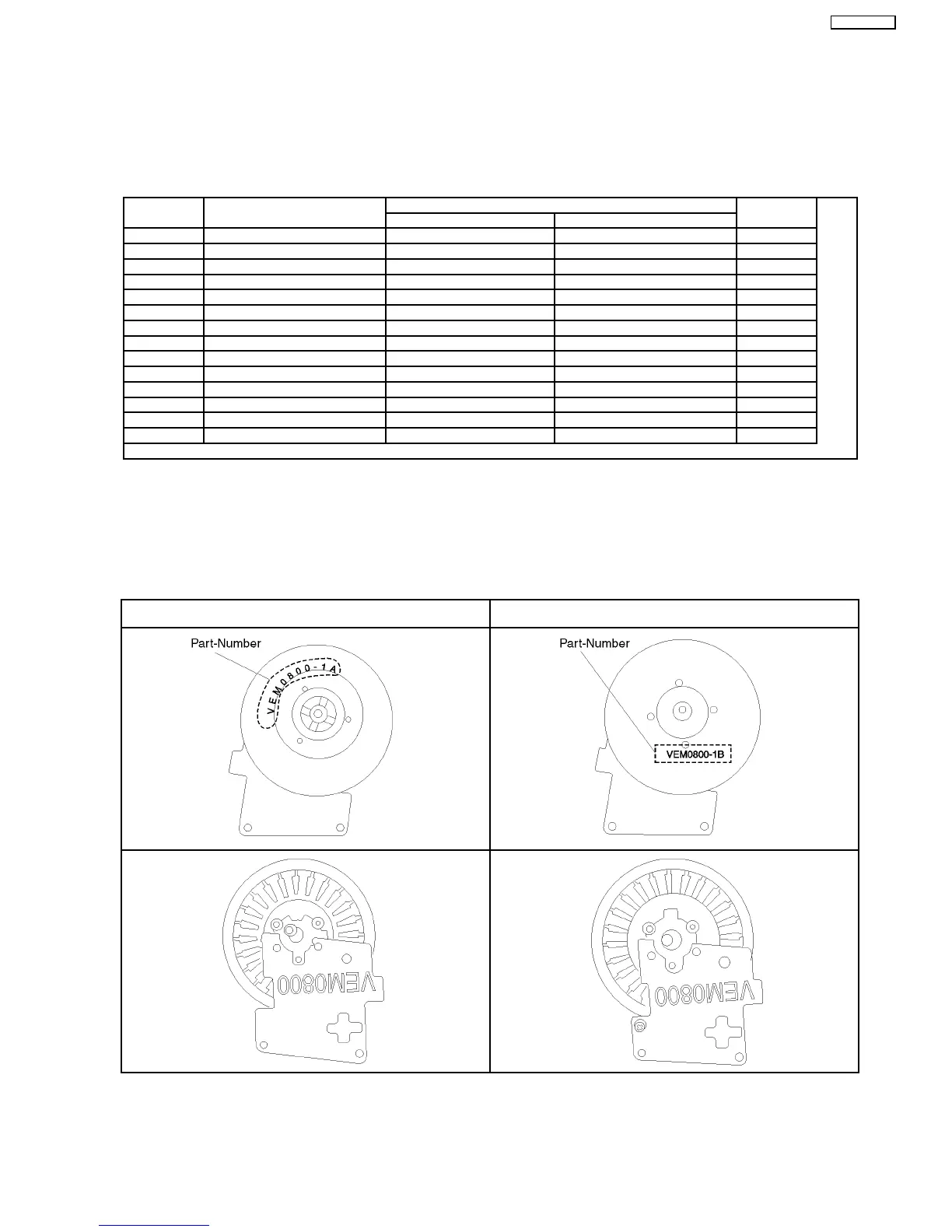

10.2.2.2. NOTICE FOR REPLACING CAPSTAN MOTOR
VEM0800-1A is printed on capstan motor of replacement part. VEM0800-1B is printed on capstan motor of product.
Thought printed part numbers differ between product and replacement part, VEM0800-1A and VEM800-1B have compatibility.
Replacement Part
“VEM0800-1A” or “VEM0800-1B”
Product
“VEM0800-1B”
Bottom Bottom
Top Top
