9.2. P.C.B. POSITIONS 9.3. CAUTION WHILE INSERTING
CASSETTE TAPE WHEN
DISASSEMBLING THE UNIT
NOTE:
Video Cassette might not enter when a strong lighting is
applied to VHS Mechanism when Video Cassette is
inserted. Please weaken the lighting or cover with the top
panel etc.
9 ASSEMBLING AND DISASSEMBLING

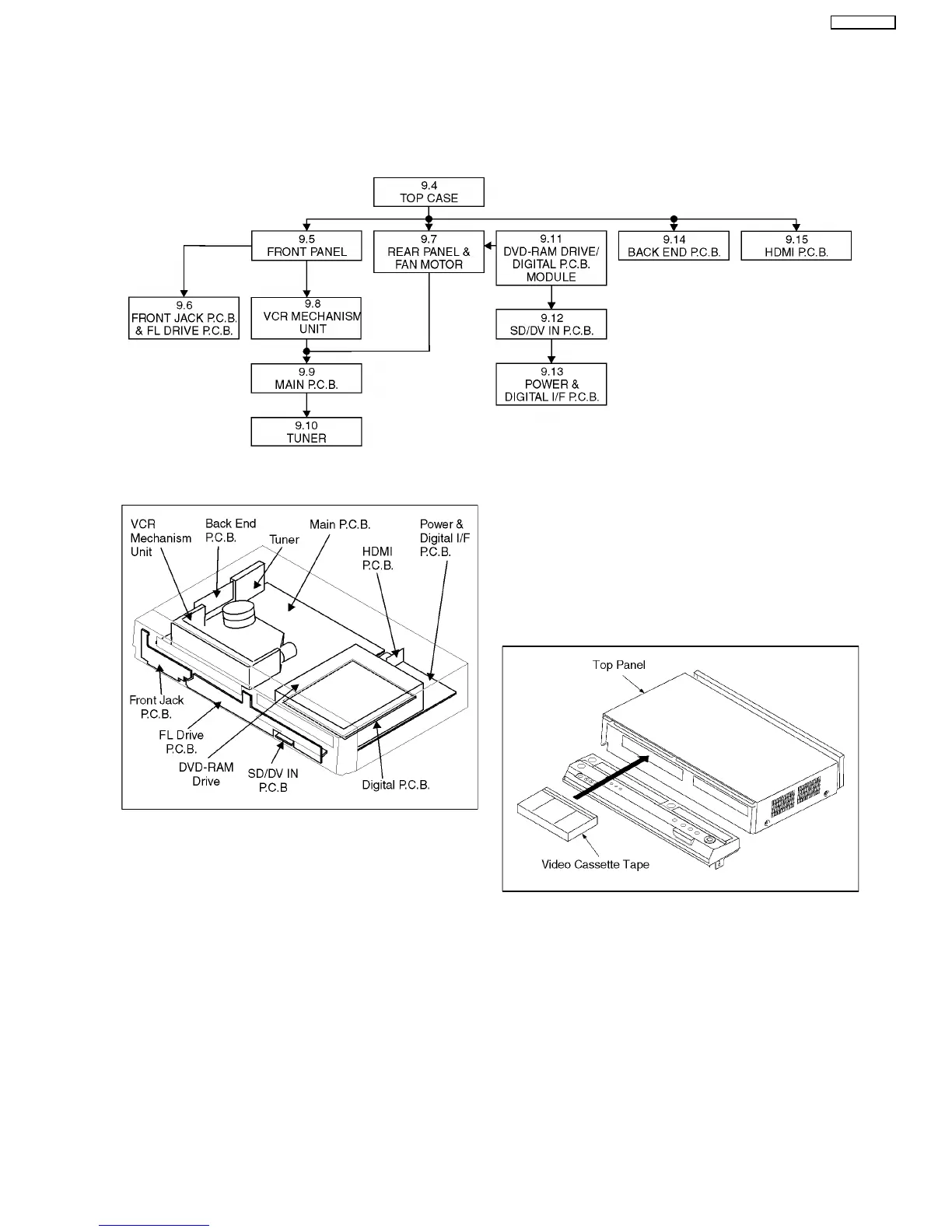

9.1. DISASSEMBLY FLOW CHART
The following chart is the procedure for disassembling the casing
and inside parts for internal inspection when carrying out the servicing.
To assemble the unit, reverse the steps shown in the chart below.
27
DMR-EZ45VEB
To Next Page
