Panasonic DMR-EZ45VEB

10 MEASUREMENTS AND ADJUSTMENTS
10.1. SERVICE POSITIONS
10.1.1. CHECKING AND REPAIRING OF POWER & DIGITAL I/F P.C.B.
CAUTION:
Before repairing of Power & Digital I/F P.C.B. read and observe “CAUTION FOR DIVX” (NEW FEATURE) first.
1. Top Case
· Remove 4 Screws (A) on side and 3 Screws (B) on rear side.
· Remove Top Case.
2. Front Panel
· Remove one Screw (A) on center.
· Unlock 2 Locking Tabs (A), (D) on Front Panel side and 2 Locking Tabs (B), (C) on Front Panel topside.
· Unlock 2 Locking Tabs (E) on Front Panel bottom side and remove Front Panel.
3. Rear Panel with Fan Motor
· Remove 10 Screws (A) and (B) on Rear Panel.
· Unlock 2 Locking Tabs on the sides and remove Rear Panel with Fan Motor.
4. Digital P.C.B.
· Remove 4 Screws and DVD Angle.
· Disconnect FFC and 4 Screws from Digital P.C.B.
5. DV P.C.B.
· Remove 2 Screws.
· Pull out the DV P.C.B. backwards.
6. Power & Digital I/F P.C.B.
· Disconnect 3 Connectors.
· Remove 4 Screws from DVD Angle (A) and DVD Angle (B).
· Remove 2 Screws from P.C.B.
· Remove DVD Angle (A) and DVD Angle (B).
· Lift up Power & Digital I/F P.C.B., put it upside-down.

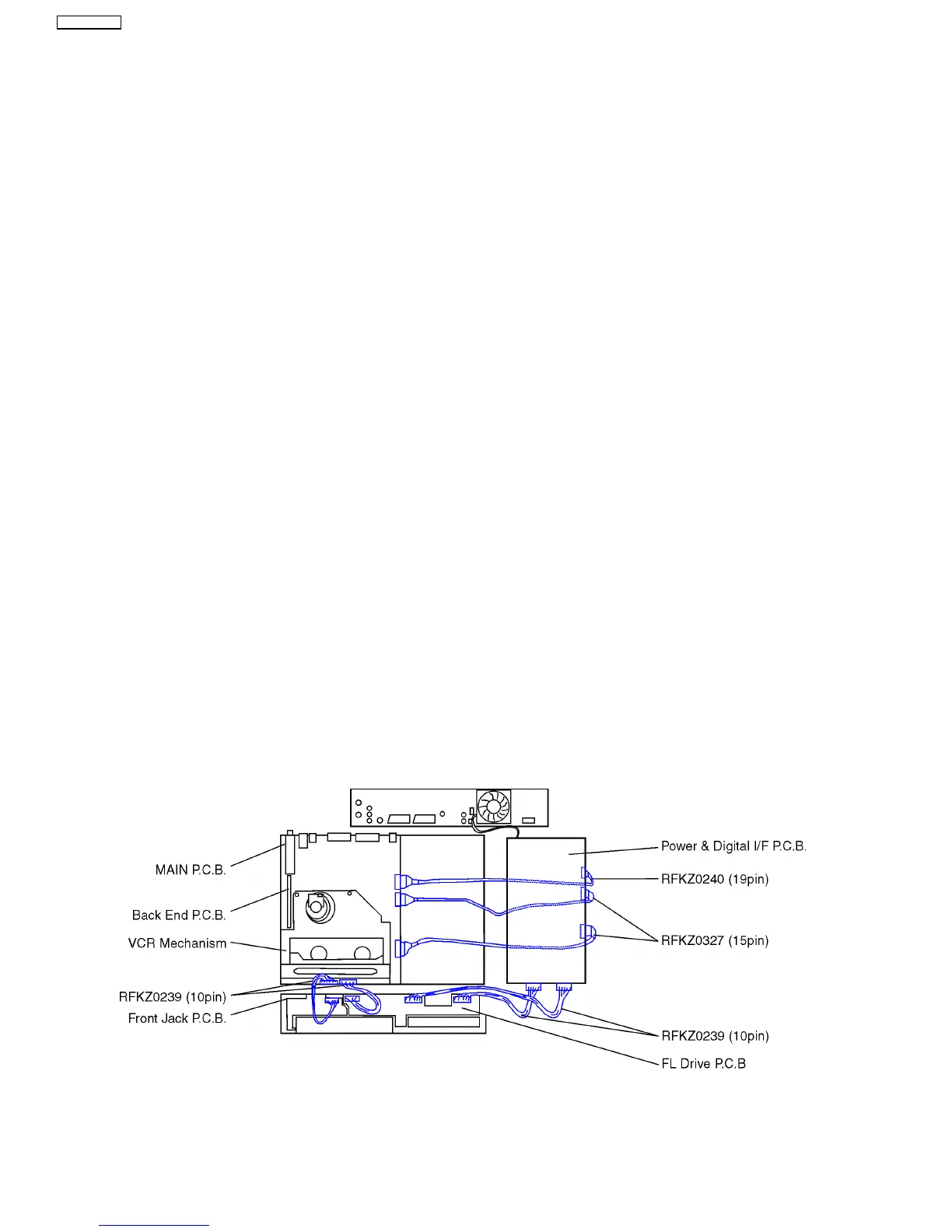

· Connect Extension Cables:
− between Main P.C.B. and Power Digital I/F P.C.B. : RFKZ0327 (2x) and RFKZ0240
− between Main P.C.B. and Front Jack P.C.B.: RFKZ0239
− between Main P.C.B. and FL Drive P.C.B.: RFKZ0239
− between Power & Digital I/F P.C.B. and FL Drive P.C.B.: RFKZ0239 (2x)
