Panasonic DMR-EZ45VEB

10.1.2. CHECKING AND REPAIRING OF MAIN P.C.B.
1. Top Case
· Remove 4 Screws (A) on side and 3 Screws (B) on rear side and remove the Top Case.
2. Front Panel
· Remove on Screw (A) on center.
· Unlock 2 Locking Tabs (A), (D) on Front Panel side and unlock 2 Locking Tabs (B), (C) on Front Panel topside.
· Unlock 3 Locking Tabs (E) on Front Panel bottom side and remove Front Panel.
3. Rear Panel with Fan Motor
· Remove 10 Screws (A) and (B) on Rear Panel.
· Unlock 2 Locking Tabs on the sides and remove Rear Panel with Fan Motor.
4. VCR Mechanism Unit
· Disconnect 3 Connectors and remove 3 black Screws (A) and 3 Screws (B), (C), (D).
· Lift up VCR Mechanism Unit to remove it.
5. Main P.C.B.
· Disconnect 3 Connectors.
· Remove 3 Screws and remove Main P.C.B.
· Attach VTR Mechanism Unit on to Main P.C.B.
· Tighten Screw (C) with Earth Wire and tighten Screw (D).
· Insert Connectors and 2 FFCs.
· Hold Main P.C.B. with VTR Mechanism, put it upside-down.

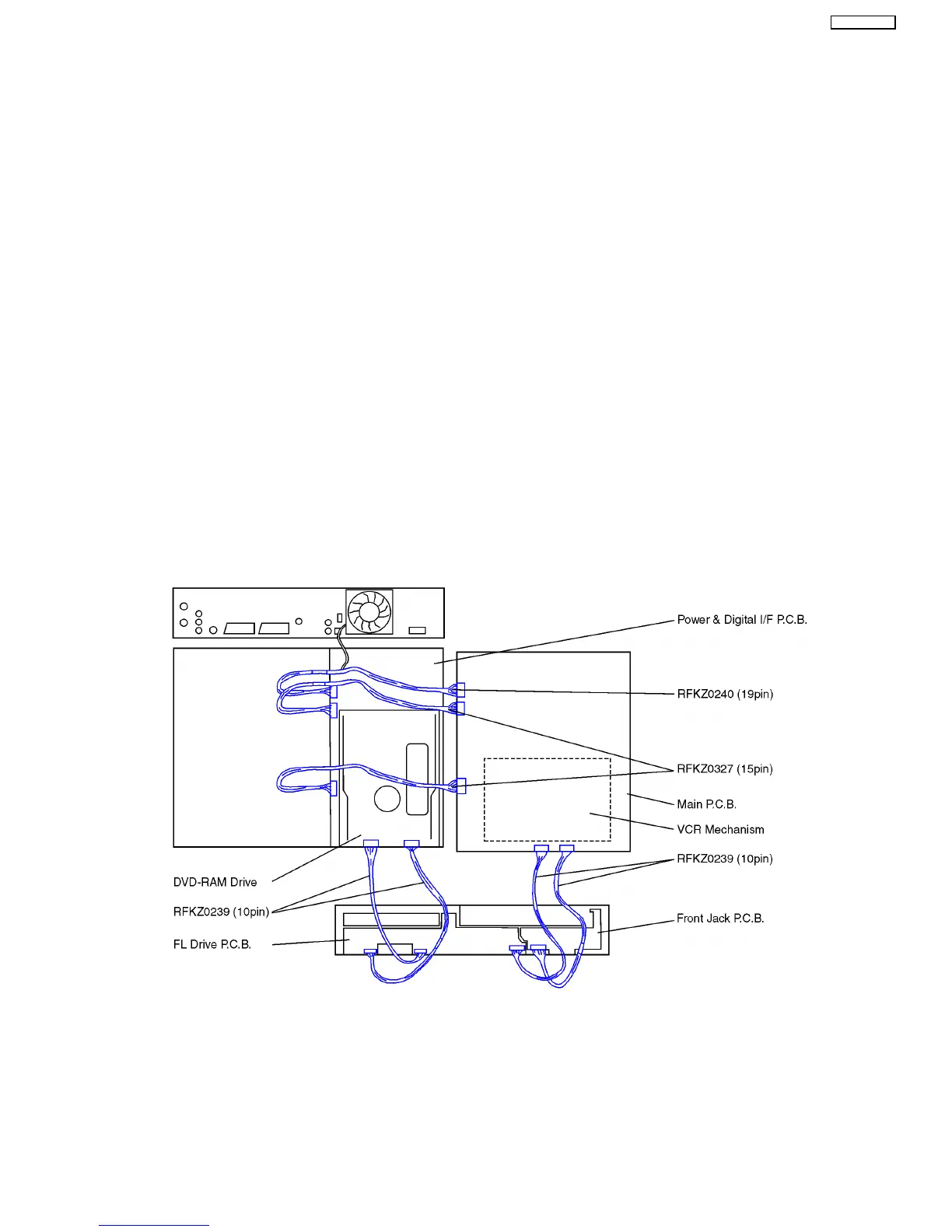

· Connect Extension Cables:
− between Main P.C.B. and Power Digital I/F P.C.B.: RFKZ0327 (2x) and RFKZ0240
− between Main P.C.B. and Front Jack P.C.B.: RFKZ0239
− between Main P.C.B. and FL Drive P.C.B.: RFKZ0239
− between Power & Digital I/F P.C.B. and FL Drive P.C.B.: RFKZ0239 (2x)
37
DMR-EZ45VEB
