Panasonic DMR-EZ48V

67
RQT9127
Additional connections
§
Leave “Yellow” unconnected.
The S VIDEO OUT terminal achieves a more vivid picture than the VIDEO OUT terminal. (Actual results depend on the television.)
COMPONENT VIDEO terminals can be used for either interlace or progressive output (➡ 81) and provide a purer picture than the S VIDEO OUT
terminal.
≥Connect to terminals of the same colour.
If you have a regular television (CRT: cathode ray tube)
Progressive output may cause some flickering, even if it is progressive compatible. Turn off “Progressive” if you are concerned about it (➡ 62).
This is the same for multi system televisions using PAL mode.

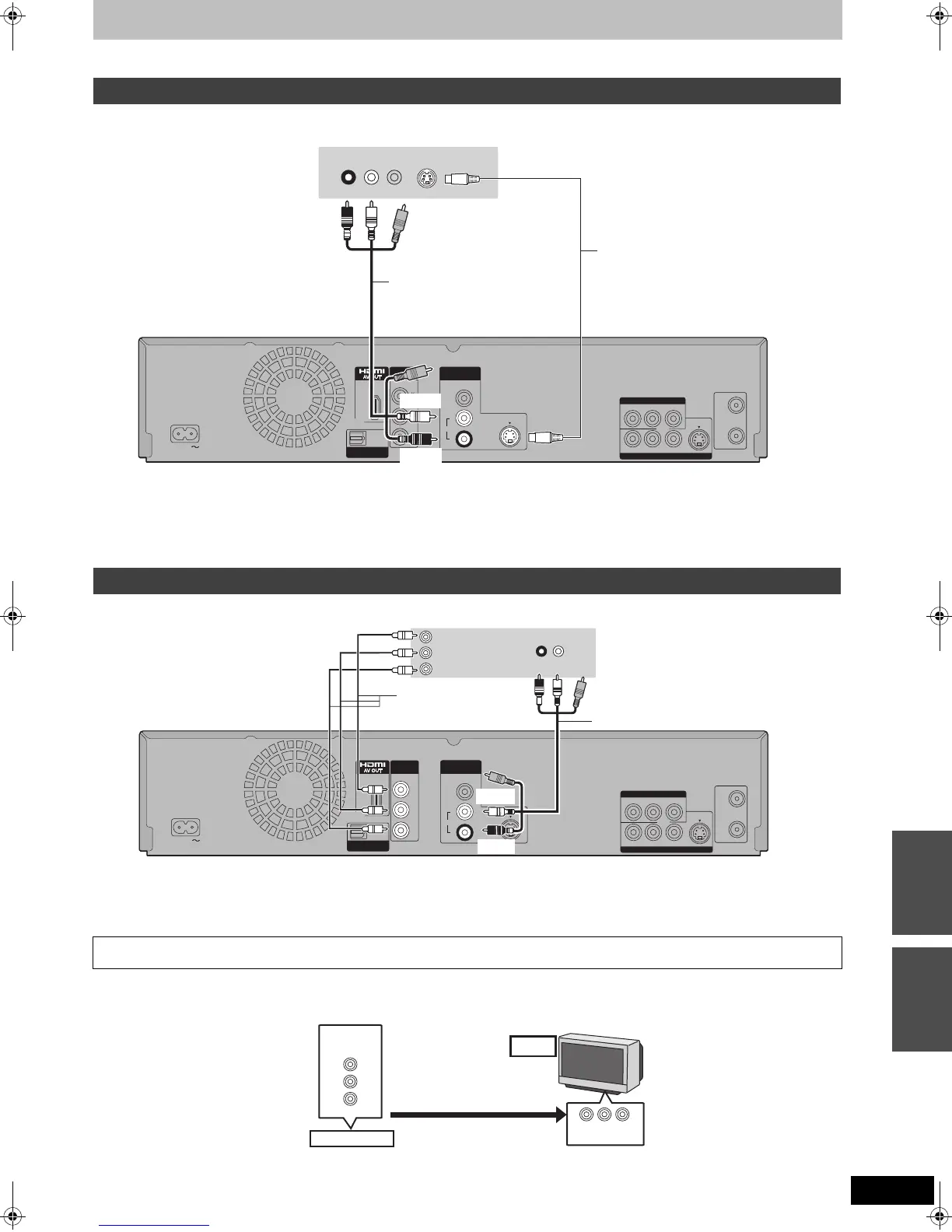

Connecting a television with S VIDEO terminals
Connecting a television with COMPONENT VIDEO terminals
AC IN
RF
RF
IN
IN
RF
RF
OUT
OUT
OPTICAL
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
COMPONENT
VIDEO OUT
DVD PRIORITY OUT
VIDEO
AUDIO
L
R
PR
PB
Y
S VIDEO
DVD/VHS COMMON OUT
AV1 IN
S VIDEO
VIDEO
VIDEO
R-AUDIO-L
R-AUDIO-L
S VIDEO
IN
AUDIO IN
R L
VIDEO
IN
§
§
Television’s rear panel
S Video
cable
Red White
Red
Audio/Video cable
(included)
This unit’s rear panel
White
AC IN
RF
RF
IN
IN
RF
RF
OUT
OUT
OPTICAL
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
COMPONENT
VIDEO OUT
DVD PRIORITY OUT
VIDEO
AUDIO
L
R
PR
PB
Y
S VIDEO
DVD/VHS COMMON OUT
AV1 IN
S VIDEO
VIDEO
VIDEO
R-AUDIO-L
R-AUDIO-L
AUDIO IN
R L
PR
PB
Y
COMPONENT
VIDEO IN
§
§
Red White
Red
Component
Video cable
Audio/Video cable
(included)
Television’s rear panel
This unit’s rear panel
White
[Required]setting]
“Progressive” setting in the Setup menu (➡ 62)
COMPONENT
VIDEO OUT
COMPONENT
VIDEO IN
CRT
This unit
Progressive output
DO NOT
Other Settings/Additional connections
