8
RQT9127
STEP 1 Connection
≥Before connection, turn off all equipment and read the appropriate operating instructions.
≥Confirm connections not listed below with your dealer.
The unit has DVD/VHS COMMON OUT terminals and DVD priority out terminals.
DVD/VHS COMMON OUT
≥For DVD/VHS COMMON OUT terminals, both DVD and VHS signals can be output.
DVD priority out
≥This is the dedicated terminal to enjoy pictures played on DVD in higher picture quality. (➡ 9, 67)
≥The DVD priority out terminals can also output the VHS signal. However this is not possible during DVD recording or DVD timer recording.
When a digital TV and another piece of equipment such as a VCR are connected to this unit:
If the broadcast signal is input into a TV through another piece of external equipment, then the signal will be attenuated and even digital
broadcasts cannot be received. Split the broadcast signal from the antenna using a splitter so that the broadcast signal can be directly fed
to the TV.
Make sure to use the pair of supplied RF coaxial cables
Use the pair of supplied RF coaxial cables only when you make connections to the unit through its RF IN and RF OUT terminals. Striping may
appear and disrupt images on the TV if you use different cables for connection.
When the unit is not to be used for a long time
To save power, unplug it from the household mains socket. This unit consumes a small amount of power, even when it is turned off
[approx. 4.3 W (Power Save mode)]
When “Power Save” is set to “On”, the “Quick Start” function does not work.
DVD output and DVD/VHS output

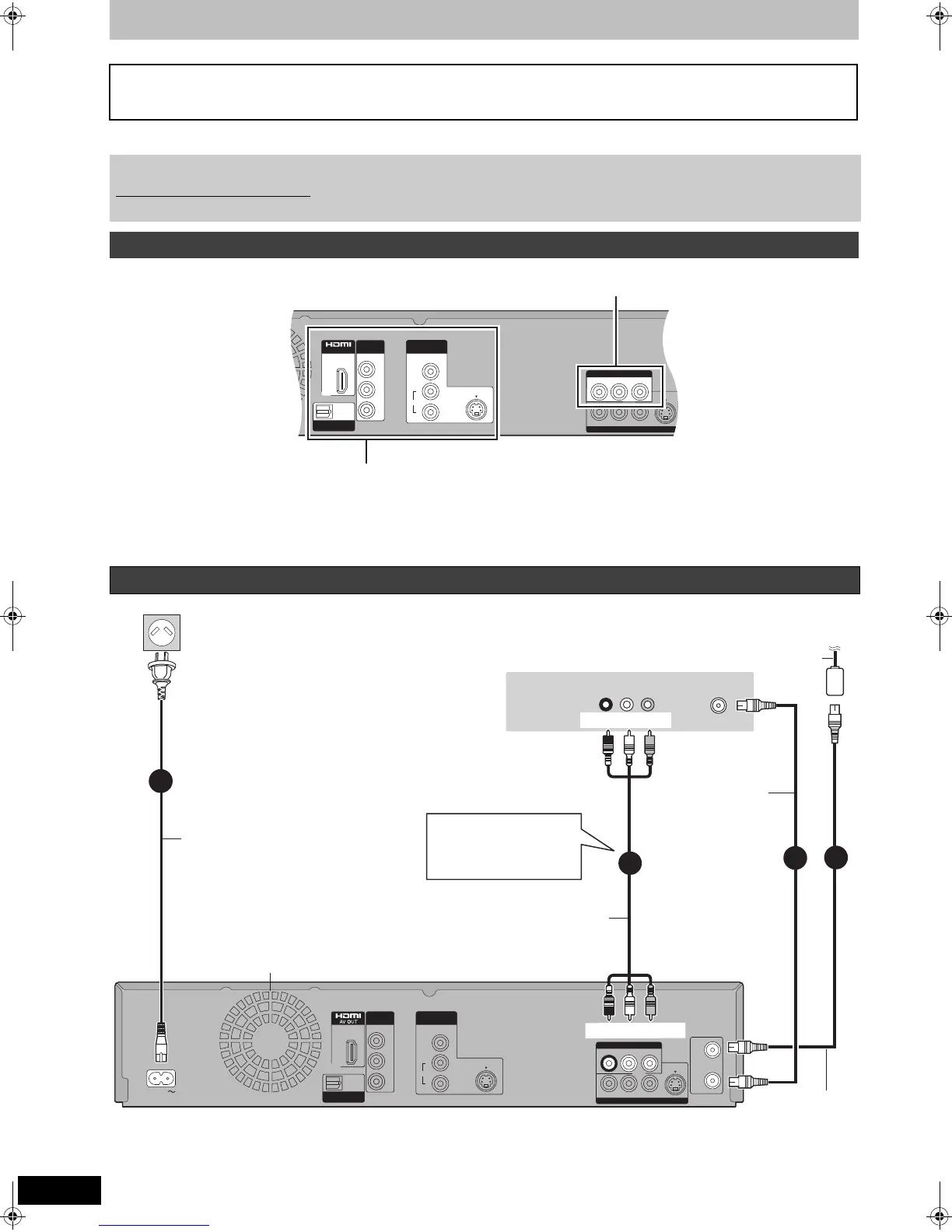

Connecting a television
RF
IN
RF
OU
OPTICAL
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
AAV OUV OUTT
COMPONENT
VIDEO OUT
DVD PRIORITY OUT
VIDEO
AUDIO
L
R
PR
PB
Y
S VIDEO
DVD/VHS COMMON OUT
AV1 IN
S VIDEO
VIDEO
VIDEO
R-AUDIO-L
R-AUDIO-L
DVD/VHS COMMON OUT
DVD priority out
This unit’s rear panel
AC IN
RF
IN
RF
OUT
OPTICAL
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
COMPONENT
VIDEO OUT
DVD PRIORITY OUT
VIDEO
AUDIO
L
R
PR
PB
Y
S VIDEO
DVD/VHS COMMON OUT
AV1 IN
S VIDEO
VIDEO
VIDEO
R-AUDIO-L
R-AUDIO-L
VHF/UHF
RF IN
AUDIO IN
R L
VIDEO IN
2
1
2
4
3
To the aerial
Television’s rear panel
Aerial
cable
RF coaxial cable
(included)
This unit’s rear panel
To household mains socket
(AC 220 to 240 V, 50 Hz)
AC mains lead
(included)
Connect only after all other
connections are complete.
Cooling fan
RF coaxial
cable
(included)
Red White Yellow
Red White Yellow
Audio/Video cable
(included)
Other connections
(➡ 9, 67)
