You can enjoy high-quality picture by changing the connection between this unit and your TV as follows.
When connected to an HDMI compatible unit, an uncompressed digital audio and video signal is transmitted. You can enjoy high quality, digital
video and audio with just one cable. When connecting to an HDMI-compatible HDTV (High Definition Television), the output can be switched to
1080p, 1080i or 720p HD video.
≥This unit incorporates HDMI
TM
(V.1.3 with Deep Colour) technology.
≥Video sources converted to 1920k1080 resolution, while of high quality, will exhibit somewhat lower subjective image resolution than true,
native 1080p full-HD sources. See dealer for details.
≥Please use High Speed HDMI Cables that have the HDMI logo (as shown on the cover).
≥When outputting 1080p signal, please use the HDMI cables 5.0 meters or less.
[Required]setting]
Set “Digital Audio Output” to “HDMI and Optical” (➡ 63). (The default setting is “HDMI and Optical”.)
[Note]
≥If you are connecting to a TV that is only compatible with 2 channel audio output, audio with 3 channels or more will be down mixed (➡ 81) and
output as 2 channels, even if connecting with an HDMI cable. (Some discs cannot be down mixed.)
≥You cannot connect this unit to DVI devices that are incompatible with HDCP.
For units compatible with HDCP (High-Bandwidth Digital Content Protection) copyright protection that are equipped with a digital DVI input
terminal (PC monitors, etc.):
Depending on the unit, images may not display properly or at all when connecting with a DVI/HDMI switching cable. (Audio cannot be output.)
≥Usually you can watch video from HDMI input on TV. When you want to playback VHS while recording on DVD, switch to an appropriate AV input
on TV.
Connecting to a TV with an HDMI (High Definition Multimedia Interface) cable
Regarding VIERA Link “HDAVI Control
TM
” function
When connecting with a Panasonic TV (VIERA) or a receiver equipped with the “HDAVI Control” function, linked operations would be possible.
[➡ 40, Linked operations with the TV (VIERA Link “HDAVI Control
TM
”)]
≥Non-HDMI-compliant cables cannot be utilised.
≥It is recommended that you use Panasonic’s HDMI cable.
Recommended part number:
RP-CDHG10 (1.0 m), RP-CDHG15 (1.5 m), RP-CDHG20 (2.0 m), RP-CDHG30 (3.0 m), RP-CDHG50 (5.0 m), etc.
AC IN
RF
IN
RF
OUT
OPTICAL
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
COMPONENT
VIDEO OUT
DVD PRIORITY OUT
VIDEO
AUDIO
L
R
PR
PB
Y
S VIDEO
DVD/VHS COMMON OUT
AV1 IN
S VIDEO
VIDEO
VIDEO
R-AUDIO-L
R-AUDIO-L
HDMI AV OUT
AUDIO IN
R L
VIDEO IN
AV IN
HDMI IN

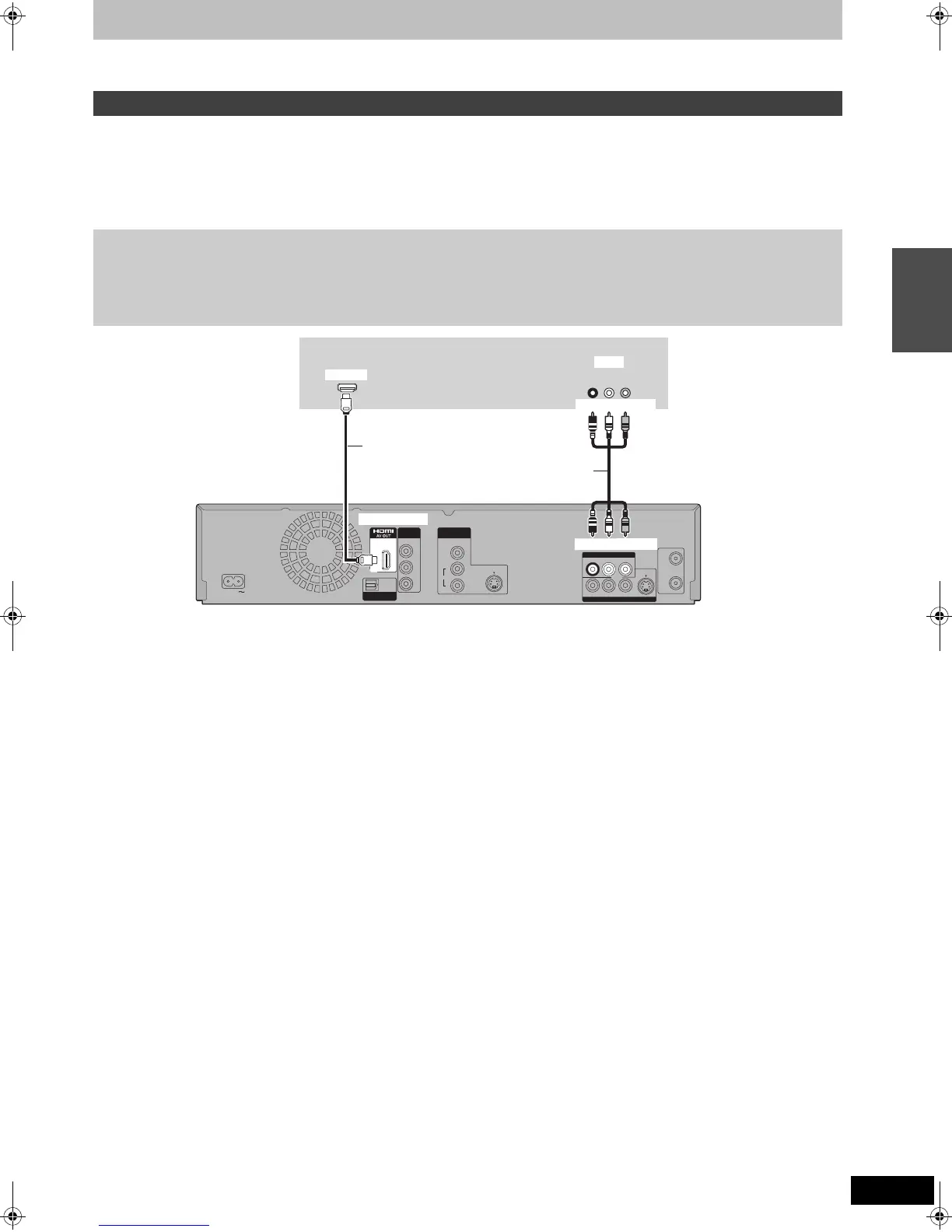

Television’s rear panel
This unit’s rear panel
Audio/Video cable
(included)
Red White Yellow
Red White Yellow
HDMI cable
STEP 1 Connection
