Additional connections
≥To enjoy multi-channel surround sound DVD-Video, connect an amplifier with Dolby Digital, DTS and MPEG decoders.
[Required]setting]
“Digital Audio Output” in the Setup menu (➡ 61)
≥When this unit is connected to an amplifier with an optical digital audio cable and connected to a television with an HDMI cable, you can enjoy
the highest quality of audio from the disc by setting “Digital Audio Output” to “Optical Only” in the Setup menu (➡ 63). In this case audio is only
output from the amplifier not the television.
≥Before purchasing an optical digital audio cable (not included), check the terminal shape of the connected equipment.
≥You cannot use DTS Digital Surround decoders not suited to DVD.

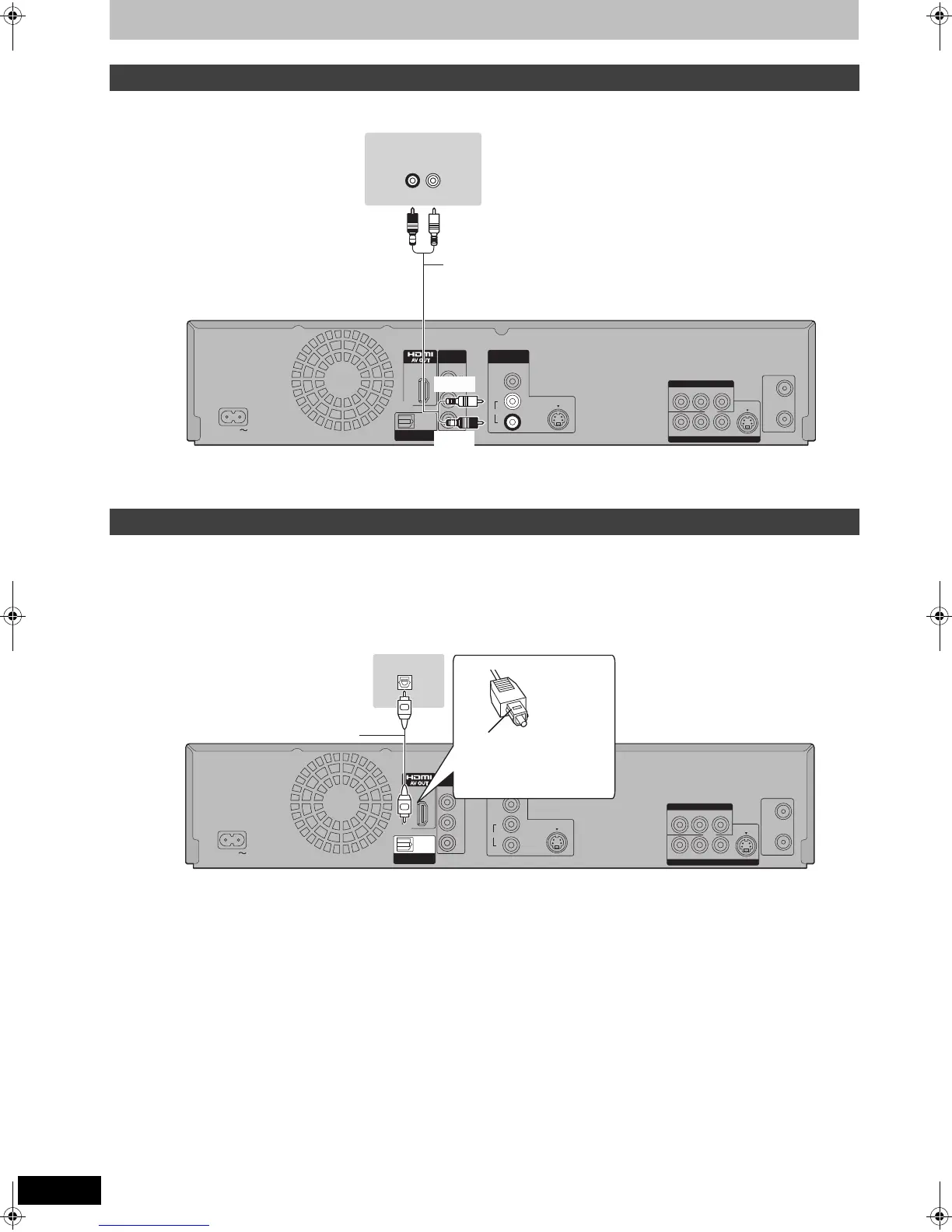

Connecting a stereo amplifier
Connecting an amplifier with a digital input terminal
AC IN
RF
RF
IN
IN
RF
RF
OUT
OUT
OPTICAL
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
COMPONENT
VIDEO OUT
DVD PRIORITY OUT
VIDEO
AUDIO
L
R
PR
PB
Y
S VIDEO
DVD/VHS COMMON OUT
AV1 IN
S VIDEO
VIDEO
VIDEO
R-AUDIO-L
R-AUDIO-L
AUDIO IN
R L
Red
Red White
Audio cable
This unit’s rear panel
Amplifier’s rear panel
White
AC IN
RF
RF
IN
IN
RF
RF
OUT
OUT
OPTICAL
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
COMPONENT
VIDEO OUT
DVD PRIORITY OUT
VIDEO
AUDIO
L
R
PR
PB
Y
S VIDEO
DVD/VHS COMMON OUT
AV1 IN
S VIDEO
VIDEO
VIDEO
R-AUDIO-L
R-AUDIO-L
OPTICAL IN
Optical digital audio cable
Do not bend sharply when
connecting.
This unit’s rear panel
Insert fully, with this side
facing up.
Amplifier’s
rear panel
