General Specifications FP2 Multi-wire Link Unit
1-6
1.1 How the Multi-wire Link Unit Works
1.1.3 MEWNET-F Mode

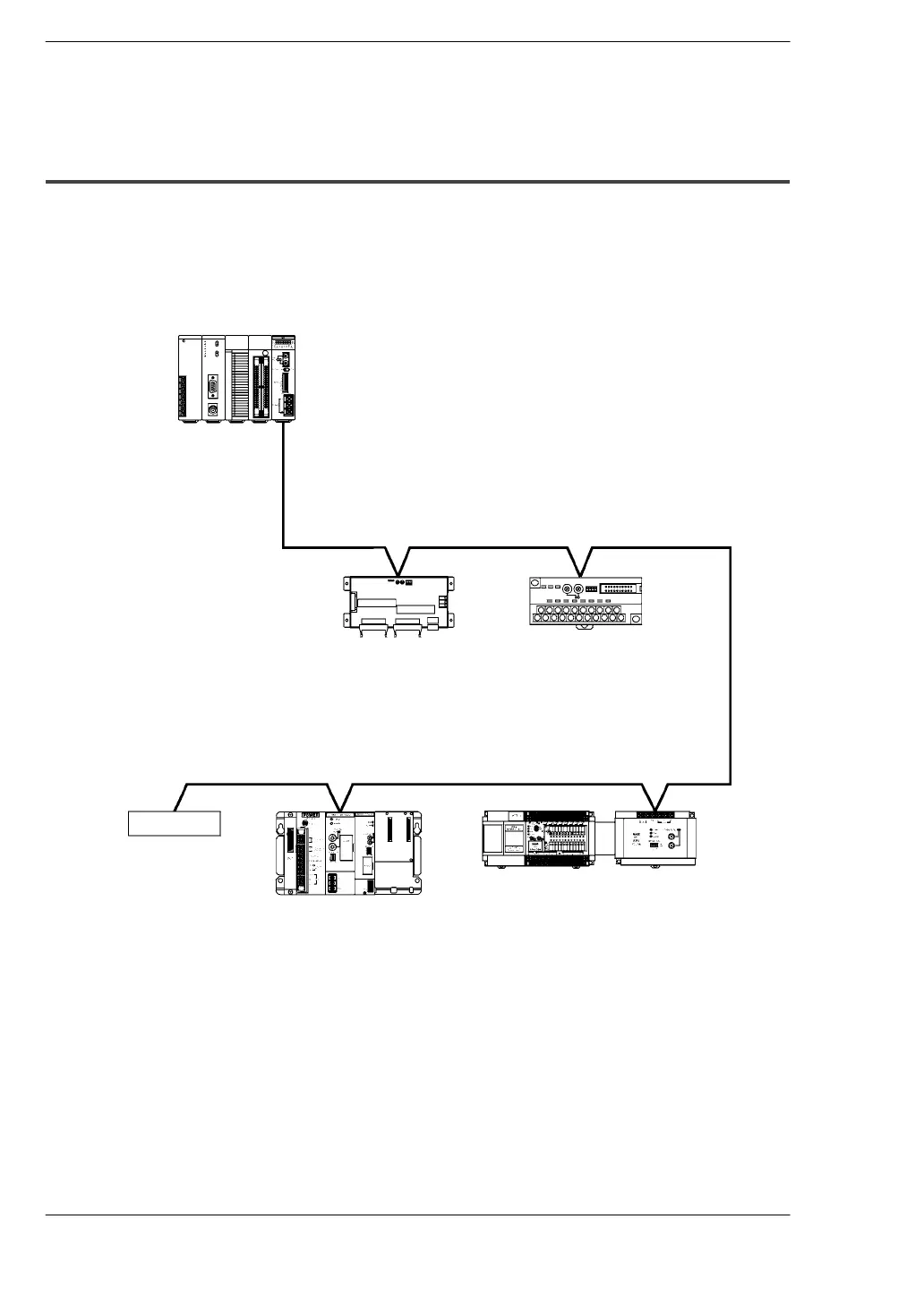

Dual-core cables reduce the amount of wiring in the remote I/O system.
Remote I/O control is possible, using the FP2 as the master station.
Communicationwith conventionalslavestations ispossible,usingthe FP2asthemaster
station.
Commercially
available manifold
solenoid valve
Master station
FP2 Multi-wire link unit
(F mode)
Slave station
FP3 MEWNET-F
(remote I/O) slave unit
FP1 I/O link unit
I/O terminal unit
Twisted pair cable/VCTF
cable
I/O terminal board
FP0 and FP-M can also be connected
using slave station units or boards.
