Panasonic GT02

9-19
9.3.2 RS422 Connection

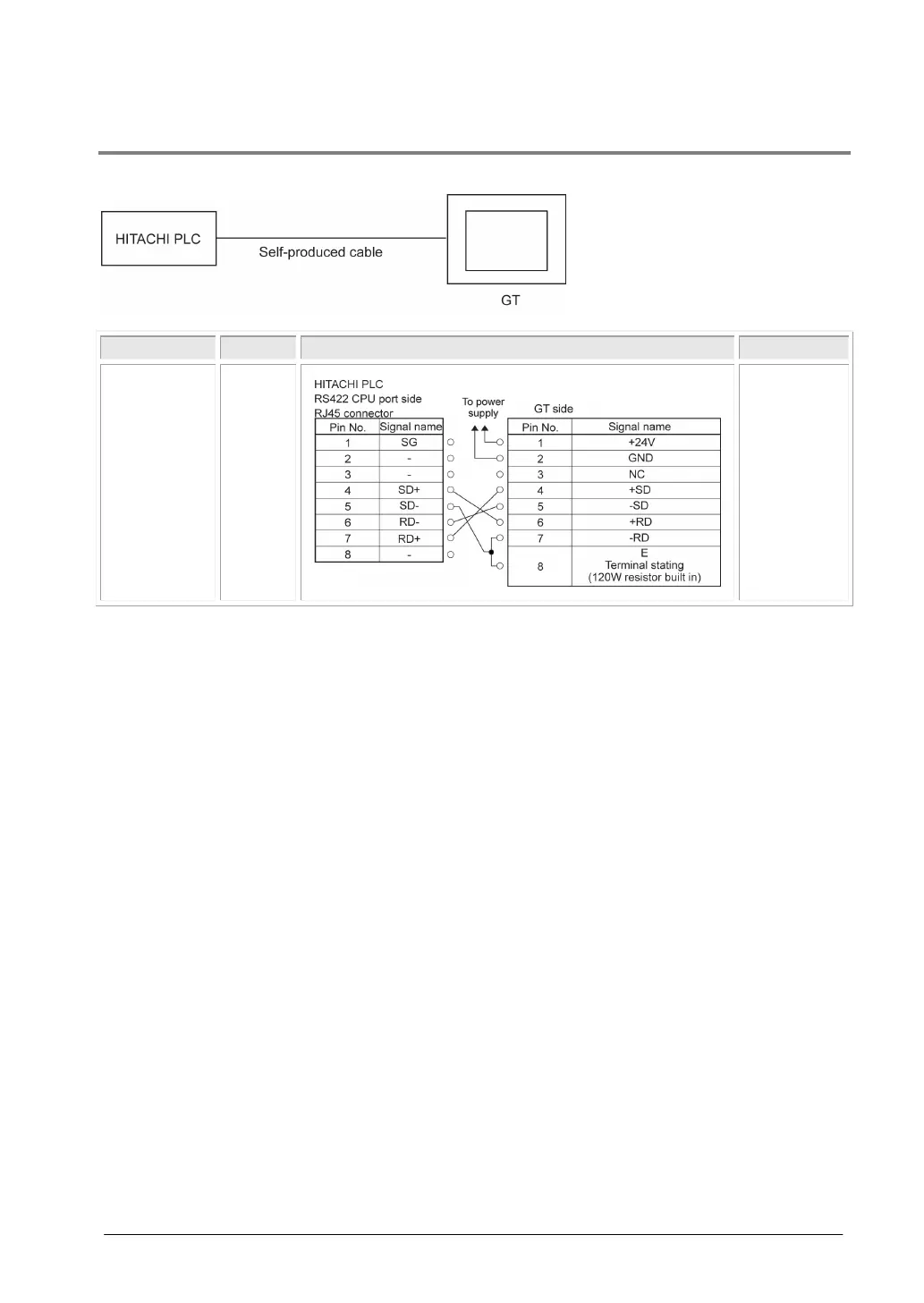

When connecting with self-produced cable using a RJ45 connector
* Refer to the above drawing of RJ45 modular port.
PLC type
Link I/F
Wiring diagram
GT series
23 points
(EH
-WD23DR)
Serial port
on CPU
RS422/
RS485 type
