Panasonic GT02

2-20
2.2.3 SYSMAC CS1/CJ1 series (1:1) (RS422/RS485)
Connected with Adapter, or Unit
CPU
Link I/F

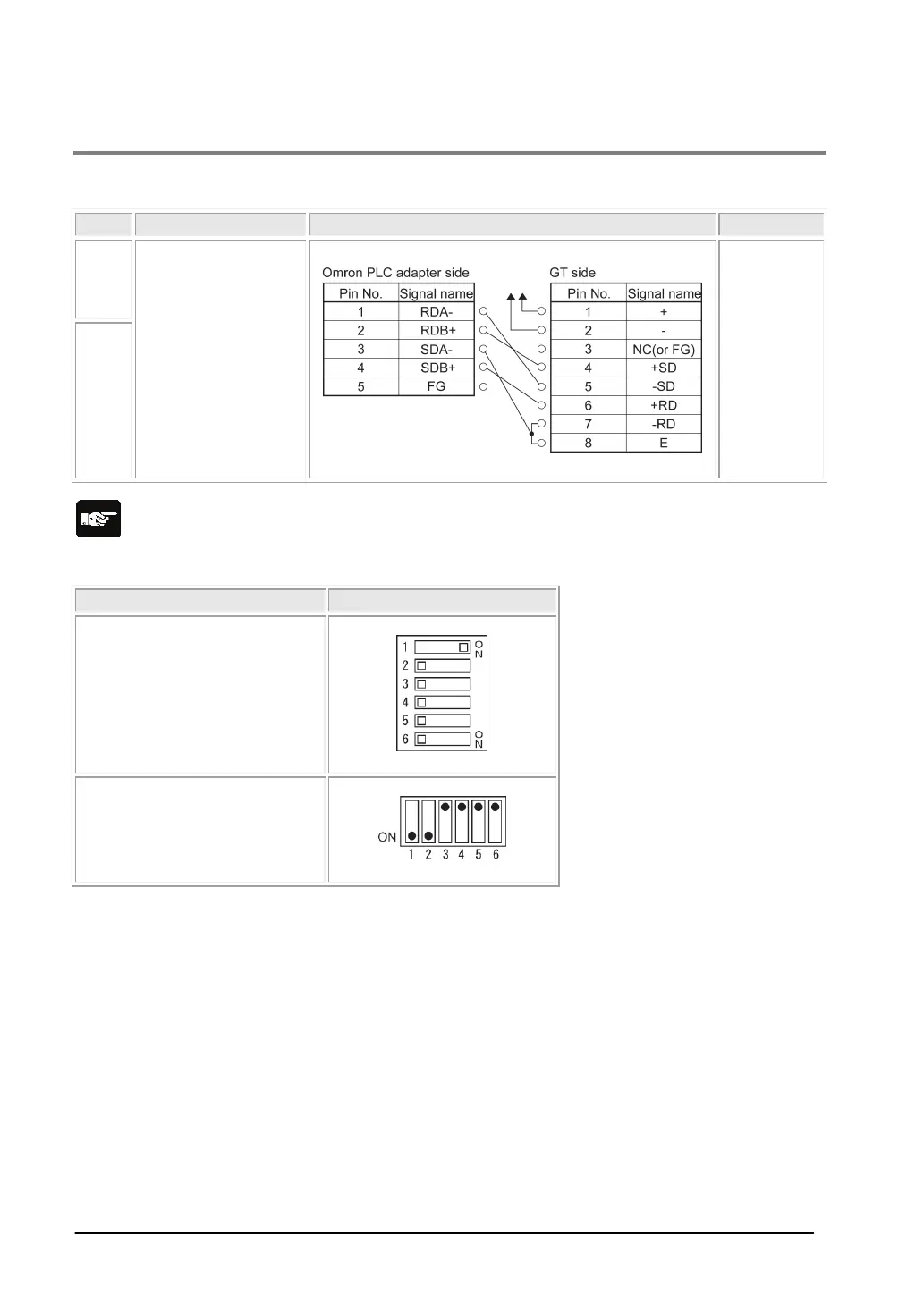

Wiring diagram
GT series
C
S1
series
RS422 conversion
adapter
CJ1W
-CIF11
RS422 conversion unit
NT
-AL001
RS422/RS485
type
CJ1
series
Note:
Refer to the figures below for the settings of the dip switches of RS422/485 optional board CPW-CFIF11
and RS422 conversion unit NT-AL001.
Adapter or unit
Dip switches
RS422 conversion adapter
CJ1W
-CIF11
RS4
22 conversion unit
NT
-AL001
The RS422 conversion adapter CJ1W-CIF11 is a non-insulated type, and the RS422 conversion adapter
NT-AL001 is a isolated type.
When the transmission distance is long, use the isolated type.
