Panasonic GT02

4-4
Usable devices (When the version of GTWIN is 2.95 or older)
Bit/Word Device
No.
Bit Device
Bit
B3:000/ 0-B3:255/ 15
Word Device
Bit
B3:000-B3:255
Integer
N7:000-N7:255

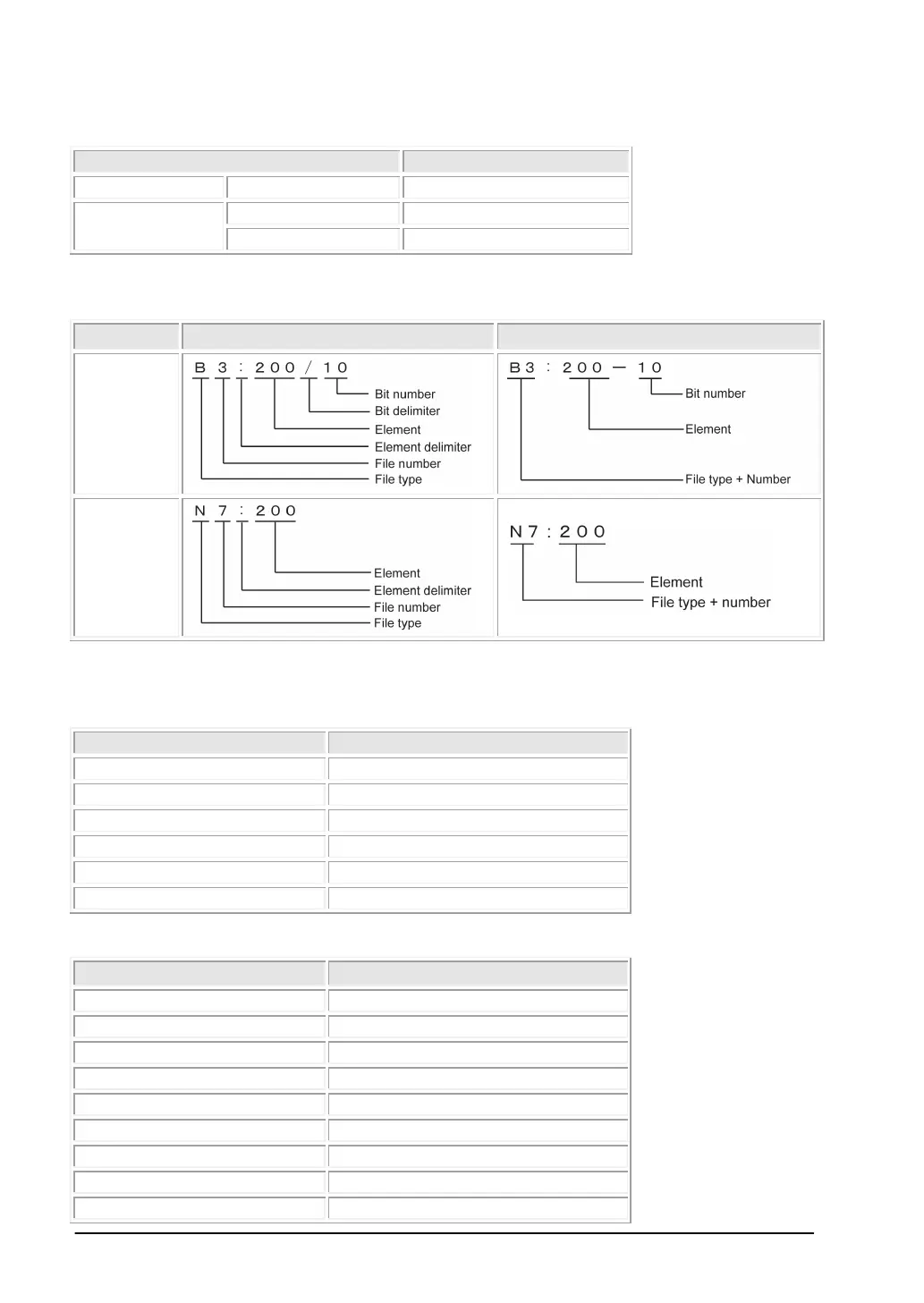

The following list illustrates each expression of PLC device in GTWIN.
When you enter a value of devices, follow below expression.
Expression in PLC
Expression in GTWIN
Bit Device
Word Device
Communication Parameters Settings
The example of communication settings of GT and PLC is shown below.
Setting Values for GT (Set in the configuration setting of GTWIN.)
Item
Setting
GT Unit No.
01
PLC Unit No.
00
Baud Rate
19200bps
Data Bits
8
Stop Bits
1
Parity
None
Setting Values for PLC
Item
Setting
Baud Rate
192000bps
Parity
None
Stop Bits
1
Data Bits
8
Communication Driver
DF1 Full Duplex
Control Line
No Handshaking
Error Detection
CRC
Embedded Responses
Enabled
Duplicate Packet Detect
Enable
