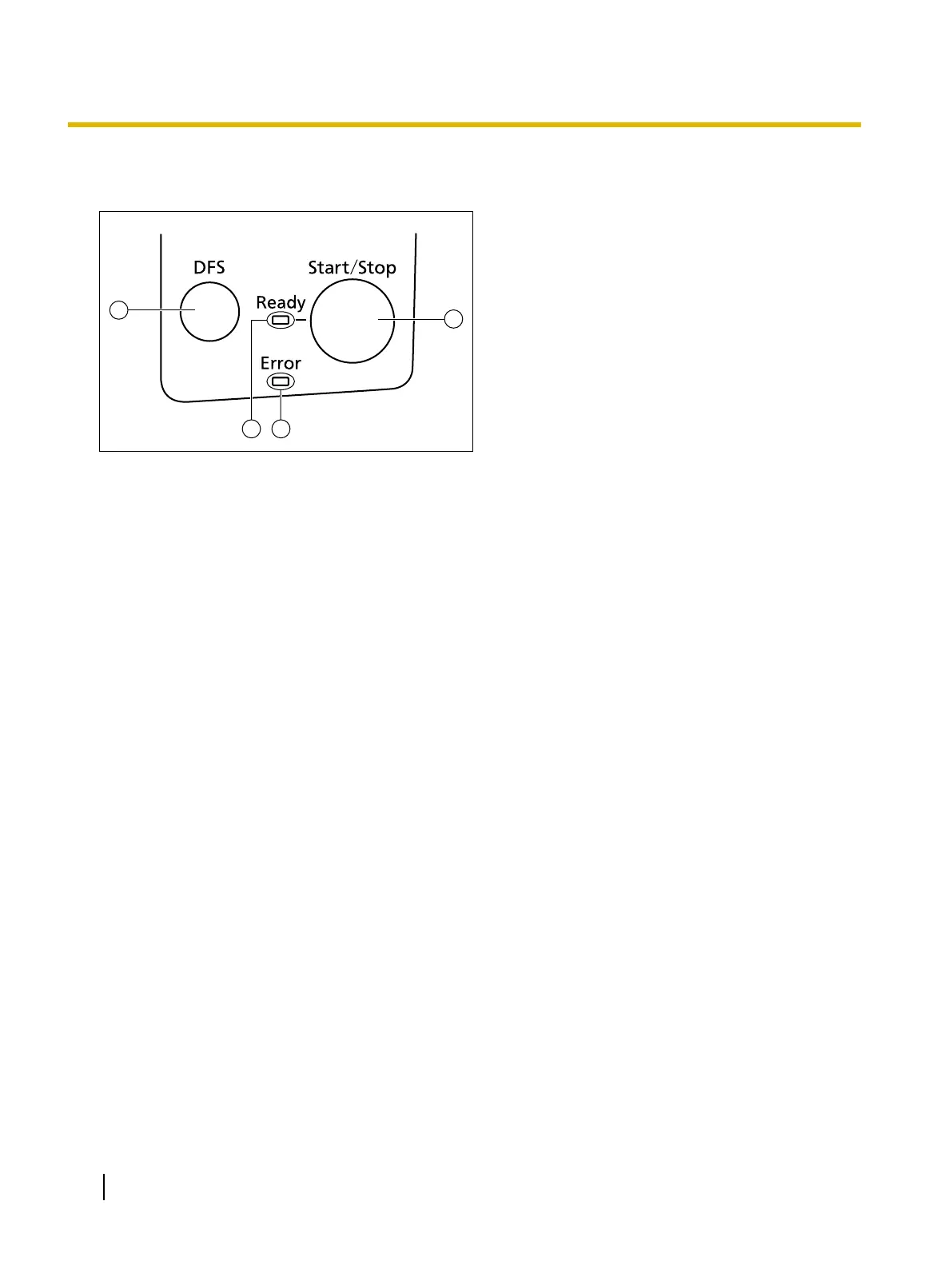

Control Panel and Status Indicators
A Double Feed Skip key (DFS)
If you press this key when a double feed occurs, the sheet that was detected as a double feed will
be scanned, and scanning will continue.
B Start/Stop key (Start/Stop)
• If you set [Wait Key] for "Manual Feed Mode"
*1
in your application software, pushing this key
starts scanning.
• During scanning, pushing this key stops scanning.
• If you press this key when a double feed occurs, the sheet that was detected as a double feed
will be ejected from the scanner without being scanned. Scanning will stop.
C Ready indicator (Ready)
Shows the scanner's status.
D Error indicator (Error)
Lights when an error occurs.
*1
For details on "Manual Feed Mode", refer to the help for ICP.
16 Operating Manual
Location of Controls
