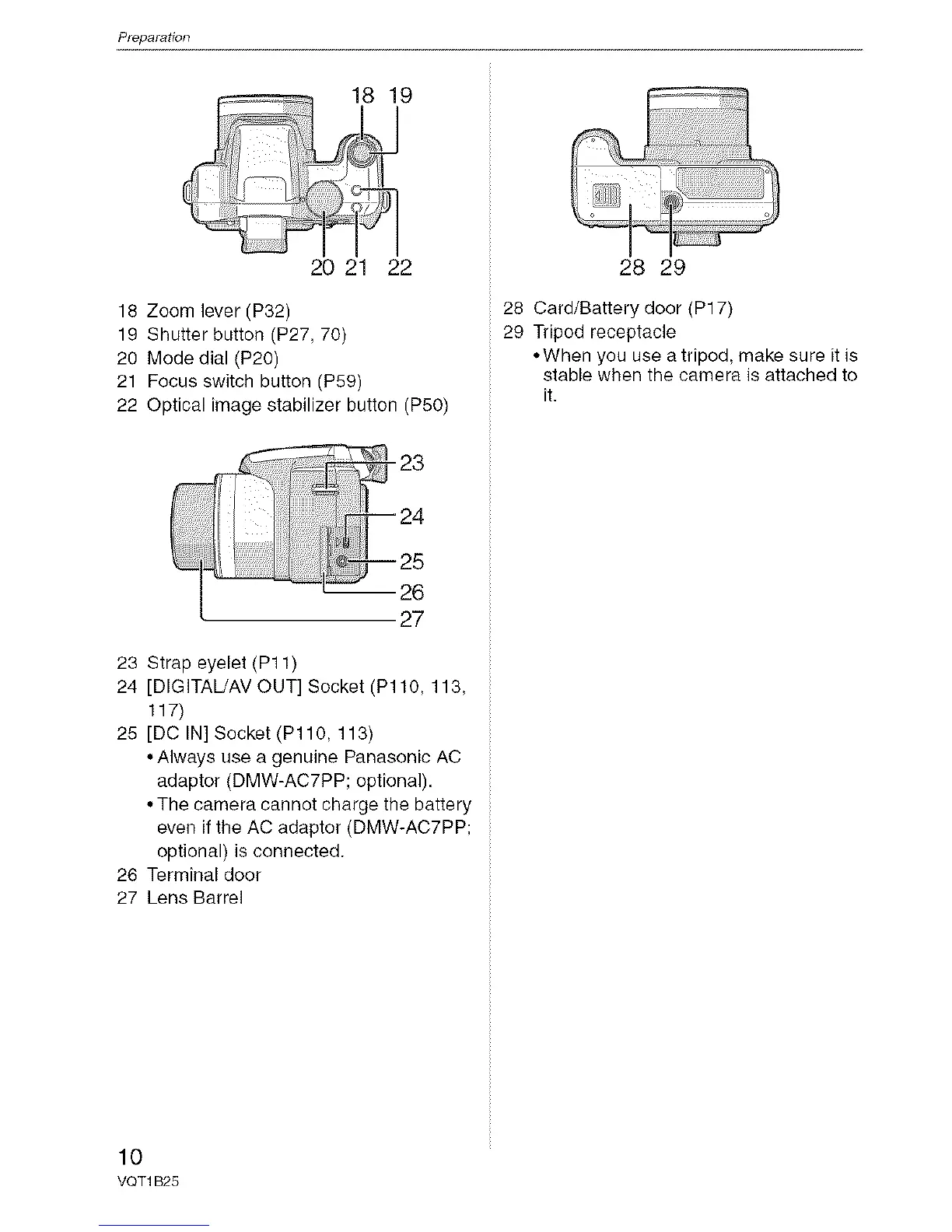

Preparation
20 21 22
18 Zoom lever (P32)
19 Shutter button (P27, 70)
20 Mode dial (P20)
21 Focus switch button (P59)
22 Optical image stabilizer button (PS0)
28 29
28 Card/Battery door (P17)
29 Tripod receptacle
• When you use a tripod, make sure it is
stable when the camera is attached to
it.
27
23 Strap eyelet (P11)
24 [DIG ITAL/AV OUT] Socket (P110, 113,
117)
25 [DC IN] Socket (Pl10, 113)
• Always use a genuine Panasonic AC
adaptor (DMW-AC7PP; optional).
• The camera cannot charge the battery
even if the AC adaptor (DMW-AC7PP;
optional) is connected.
26 Terminal door
27 Lens Barrel
10
VQT1 B25
