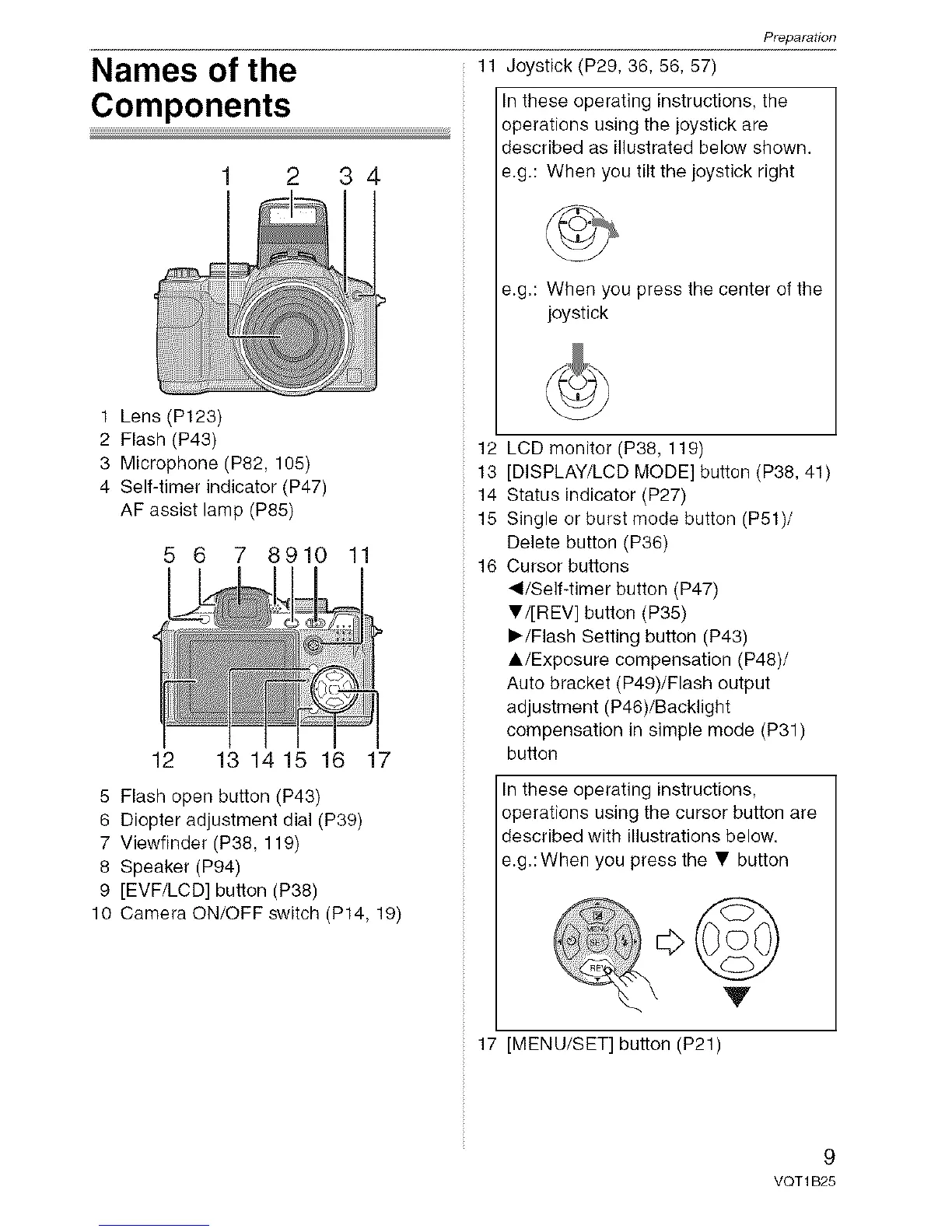

Names of the
Components
1 2 34
1 Lens (P123)
2 Flash (P43)
3 Microphone (P82, 105)
4 Self-timer indicator (P47)
AF assist lamp (P85)
5 6 7 8910 11
12 13 14 15 16 17
5 Flash open button (P43)
6 Diopter adjustment dial (P39)
7 Viewfinder (P38, 119)
8 Speaker (P94)
9 [EVF/LCD] button (P38)
10 Camera ON/OFF switch (P14, 19)
Preparation
11 Joystick (P29, 36, 56, 57)
In these operating instructions, the
operations using the joystick are
described as illustrated below shown.
e.g.: When you tilt the joystick right
e.g.: When you press the center of the
joystick
12 LCD monitor (P38, 119)
13 [DISPLAY/LCD MODE] button (P38, 41)
14 Status indicator (P27)
15 Single or burst mode button (P51)/
Delete button (P36)
16 Cursor buttons
_l/Self-timer button (P47)
• /[REV] button (P35)
I_/Flash Setting button (P43)
&/Exposure compensation (P48)/
Auto bracket (P49)/Flash output
adjustment (P46)/Backlight
compensation in simple mode (P31)
button
In these operating instructions,
operations using the cursor button are
described with illustrations below.
e.g.:When you press the • button
17 [MENU/SET] button (P21)
9
VQT 1B25
