Connecting to other equipment
VQT4M51 (ENG)
Playing Back Pictures on a TV Screen
1
Connect the camera and a TV.
• Check the direction of the terminals and plug in/out straight holding onto the plug. (It
may result in malfunction by the deforming of the terminal if it is plugged in obliquely or
in wrong direction.)
2
Turn on the TV and select the input to match the connector in use.
3
Turn the camera on and then press [(].
• Input of the TV will switch automatically and playback screen is displayed when
connected to a VIERA Link compatible TV using an HDMI mini cable with the [VIERA
Link] set to [ON].
Preparations: Turn this unit and the TV off.
To connect with an HDMI mini cable (optional)
•
Always use a genuine Panasonic HDMI mini cable (RP-CDHM15, RP-CDHM30: optional).
Part numbers: RP-CDHM15 (1.5 m) (5 feet), RP-CDHM30 (3.0 m) (10 feet)
To connect with an AV cable (optional)
•
Always use a genuine Panasonic AV cable (DMW-AVC1: optional).

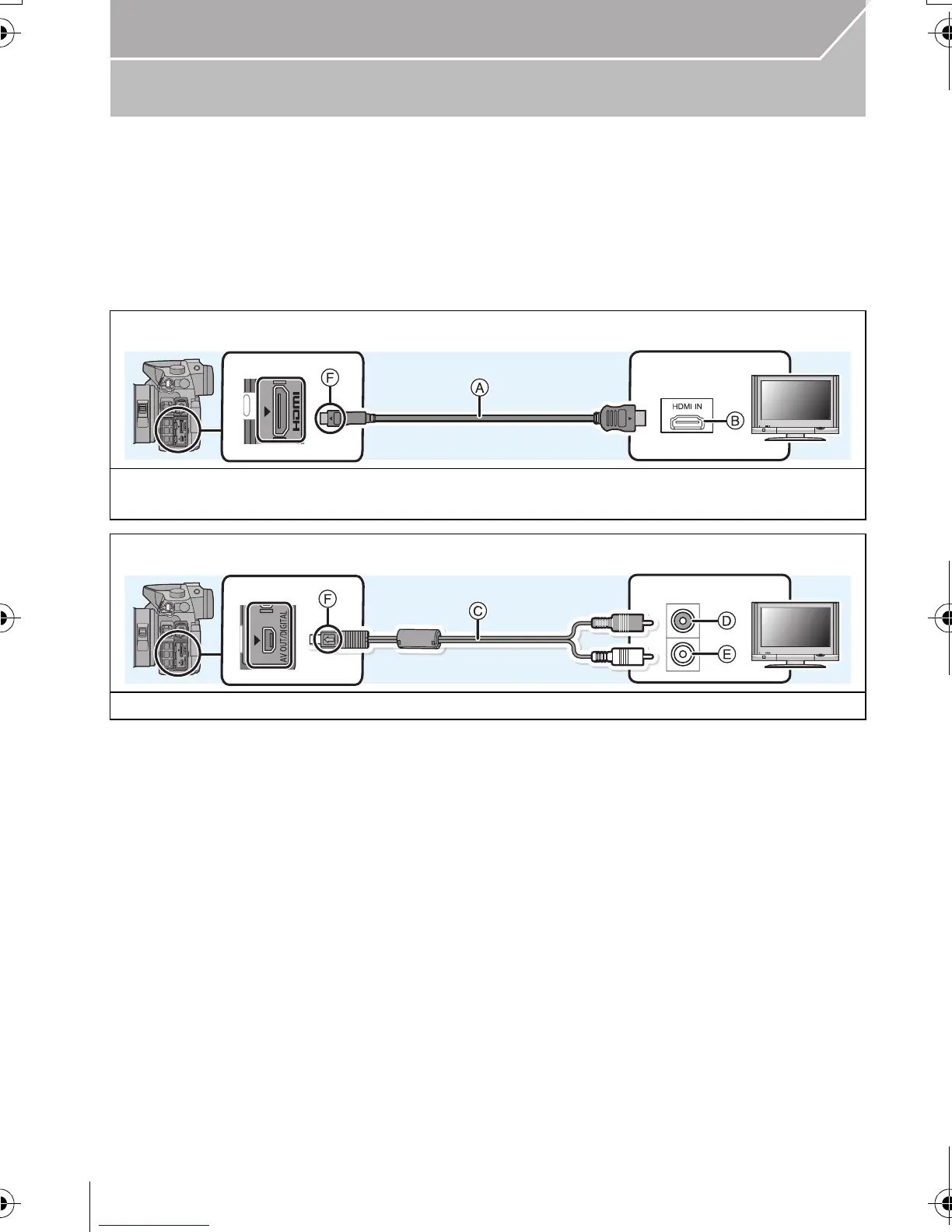

A HDMI mini cable (optional)
B HDMI socket
C AV cable (optional)
D Yellow: to the video input socket
E White: to the audio input socket
F Align the marks, and insert.
