Panasonic NV-GS44EB - Controls and Components; Camera Body Controls

Before Use
-6-

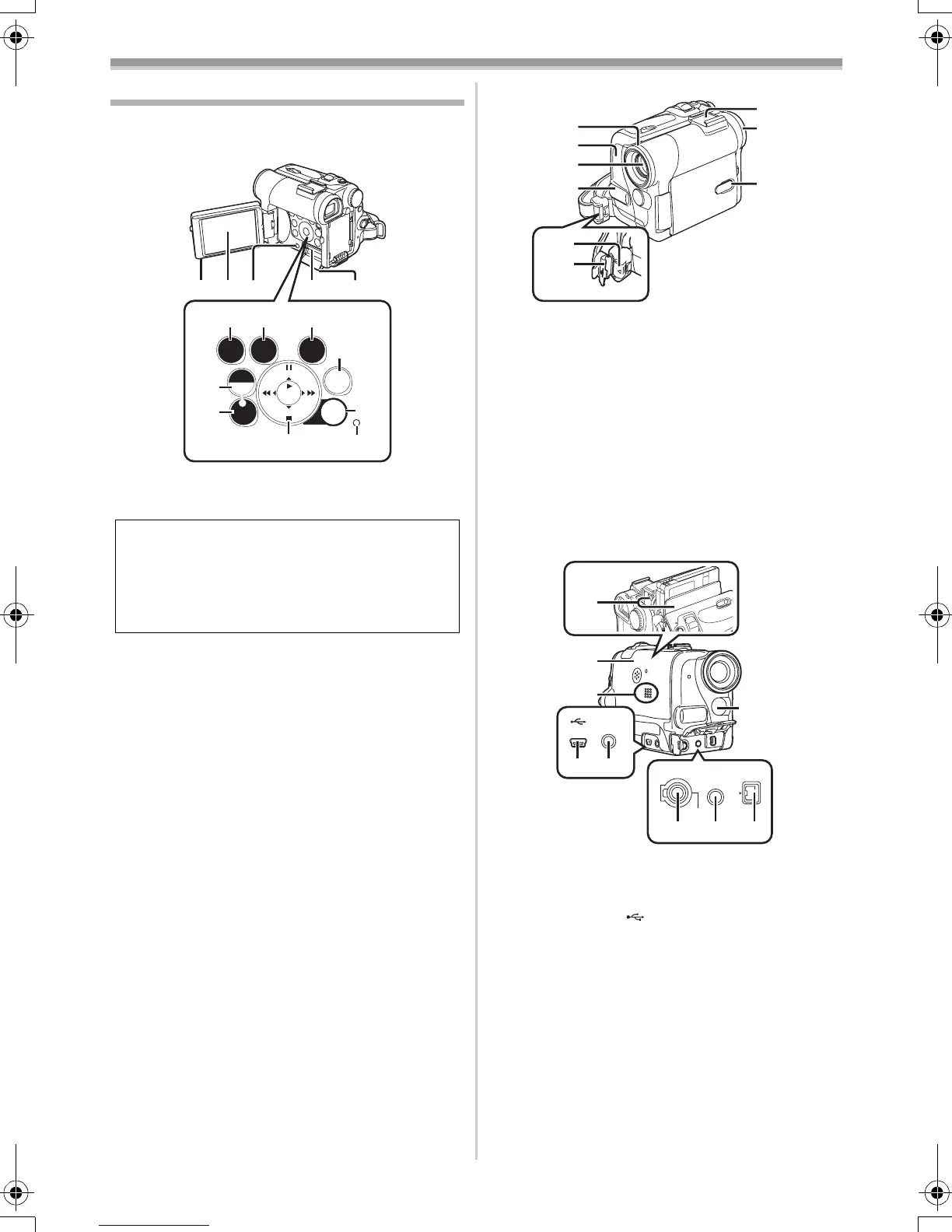

Controls and Components
ª Movie Camera
(1) LCD Monitor Open Knob [OPEN4] -13-
(2)
LCD Monitor -13-, -57-
(3)
Card Slot Cover Open Lever [OPEN] -12-
(4)
Card Slot -12-
(5)
Card Slot Cover -12-
(6)
Colour Night View Button
[COLOUR NIGHT VIEW]
-25-
(7)
Soft Skin Button [SOFT SKIN] -26-
(8)
Tele Macro Button [TELE MACRO] -24-
(9)
Multi Button [MULTI] - 30-, -36-
Picture-in-Picture Button [P-IN-P] -31-
(10)
Recording Check Button [S] -20-
Recording Button [REC] (Available only
with NV-GS55)
-43-
(11)
Backlight Button [BACK LIGHT] -25-
(12)
Pause Button [;] -33-, -35-
Still Button [STILL] -21-
(13)
Fast Forward/Cue Button [5] -32-, -35-
(14)
Play Button [1] -32-, -35-
Enter Button [ENTER] -14-
(15)
Stop Button [∫] -32-, -35-
Fade Button [FADE] -25-
(16)
Rewind/Review Button [6] -32-, -35-
(17)
Card Access Lamp -12-
(18)
Menu Button [MENU] -14-
Due to limitations in LCD production
technology, there may be some tiny bright or
dark spots on the LCD Monitor screen.
However, this is not a malfunction and does
not affect the recorded picture.
STILL
ENTER
FADE
MENU
BACK
LIGHT
MULTI/
P-IN-P
COLOUR
NIGHT
VIEW
SOFT
SKIN
TELE
MACRO
S
REC
is
(1)(2) (3)
(6)
(7) (8)
(12)(13)(14)(15)(16)
(17)
(10)
(9)
(11)
(18)
(4)
(5)
(19) Lens Hood -57-
(20)
Recording Lamp -20-
(21)
Lens
(22) Microphone (built-in, stereo) -24-, -26-
(23)
Lock Button -11-
(24)
Lock Cover -11-
(25)
Accessory Shoe
≥Accessories, such as a stereo microphone
(VW-VMS2E; optional), are attached here.
(26) Eyecup
(27) Power LCD Button [POWER LCD] -14-
Power LCD Lamp -14-
(28)
Cassette Holder
(29) Cassette Compartment Cover -12-
(30)
Speaker -32-
(31)
USB Socket [ ] -44-
(32)
S-Video Input/Output Socket
[S-VIDEO IN/OUT] (Input function on
NV-GS55 Model only)
-40-
(33)
White Balance Sensor -28-
Remote Control Sensor -9-
(34)
Socket for Free Style Remote Controller
with Mic [REMOTE]
-21-
Microphone Socket [MIC]
≥When connecting an external microphone
or audio equipment to this socket, the
built-in microphone does not operate.
-52-
≥When connecting the Free Style Remote
Controller with Mic to this socket and the
(19)
(20)
(21)
(22)
(23)
(24)
(25)
(26)
(27)
S-VIDEO
IN/OUT
AV IN/OUT
PHONES
REMOTE/MIC
DV
(PLUG IN POWER)
(28)
(29)
(30)
(31)
(32)
(33)
(34)
(35) (36)
