Panasonic NV-RX11A - Inserting the Cassette; Ejecting the Cassette

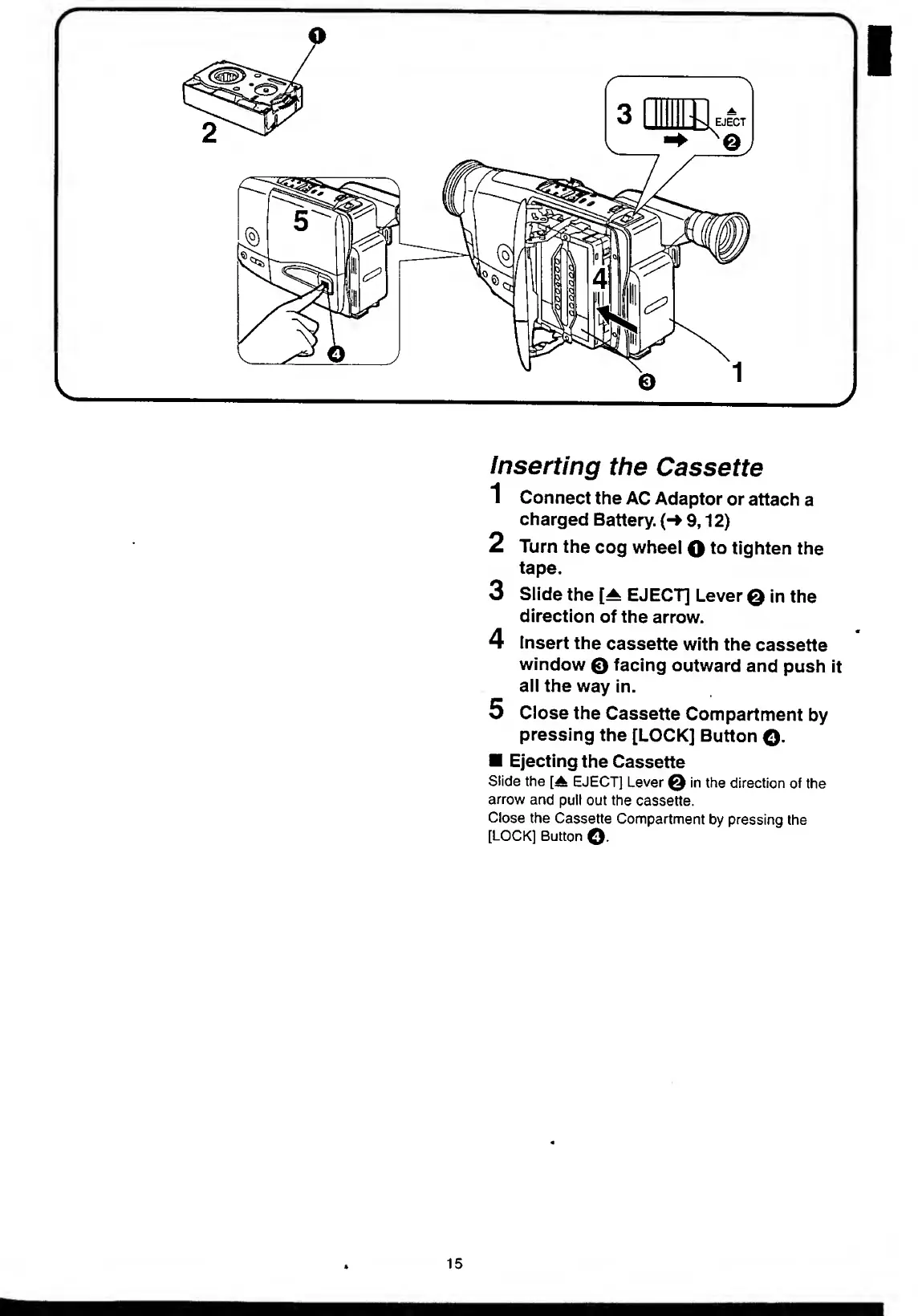

Inserting the Cassette
1 Connect the AC Adaptor or attach a
charged Battery. (-> 9,12)
2 Turn the cog wheel O to tighten the
tape.
3 Slide the [A EJECT] Lever Q in the
direction of the arrow.
4 Insert the cassette with the cassette
window 0 facing outward and push it
all the way in.
5 Close the Cassette Compartment by
pressing the [LOCK] Button ©•
■ Ejecting the Cassette
Slide the [A EJECT] Lever 0 in the direction of the
arrow and pull out the cassette.
Close the Cassette Compartment by pressing the
[LOCK] Button ©•
