Panasonic NV-RX11A - Page 29

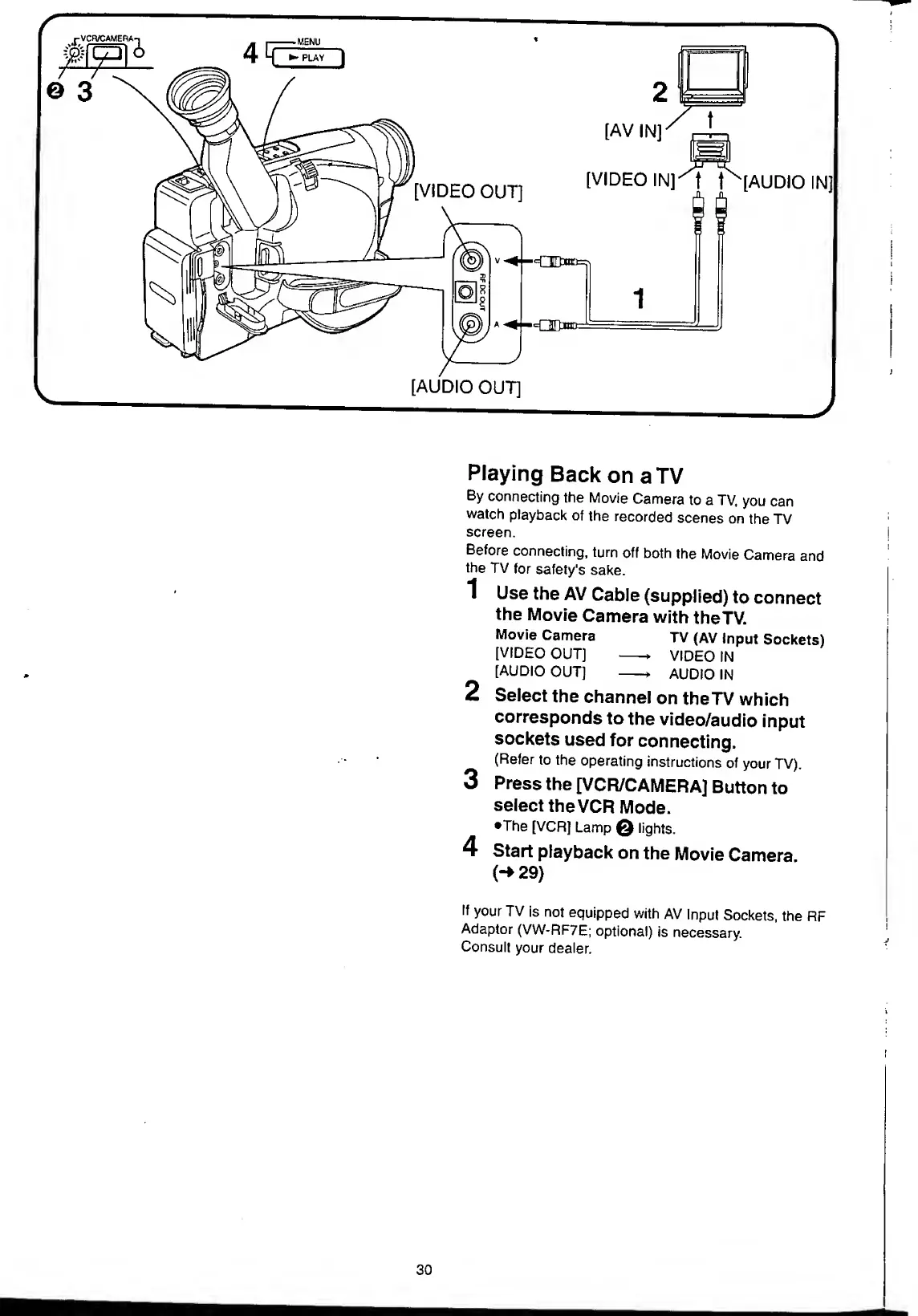

Playing Back on a TV
By connecting the Movie Camera to a TV, you can
watch playback of the recorded scenes on the TV
screen.
Before connecting, turn off both the Movie Camera and
the TV for safety's sake.
1 Use the AV Cable (supplied) to connect
the Movie Camera with theTV.
Movie Camera TV (AV Input Sockets)
[VIDEO OUT) -* VIDEO IN
[AUDIO OUT] -* AUDIO IN
2 Select the channel on theTV which
corresponds to the video/audio input
sockets used for connecting.
(Refer to the operating instructions of your TV).
3 Press the [VCR/CAMERA] Button to
select the VCR Mode.
•The [VCR] Lamp © lights.
4 Start playback on the Movie Camera
(- ♦ 29)
If your TV is not equipped with AV Input Sockets, the RF
Adaptor (VW-RF7E; optional) is necessary.
Consult your dealer.
30
