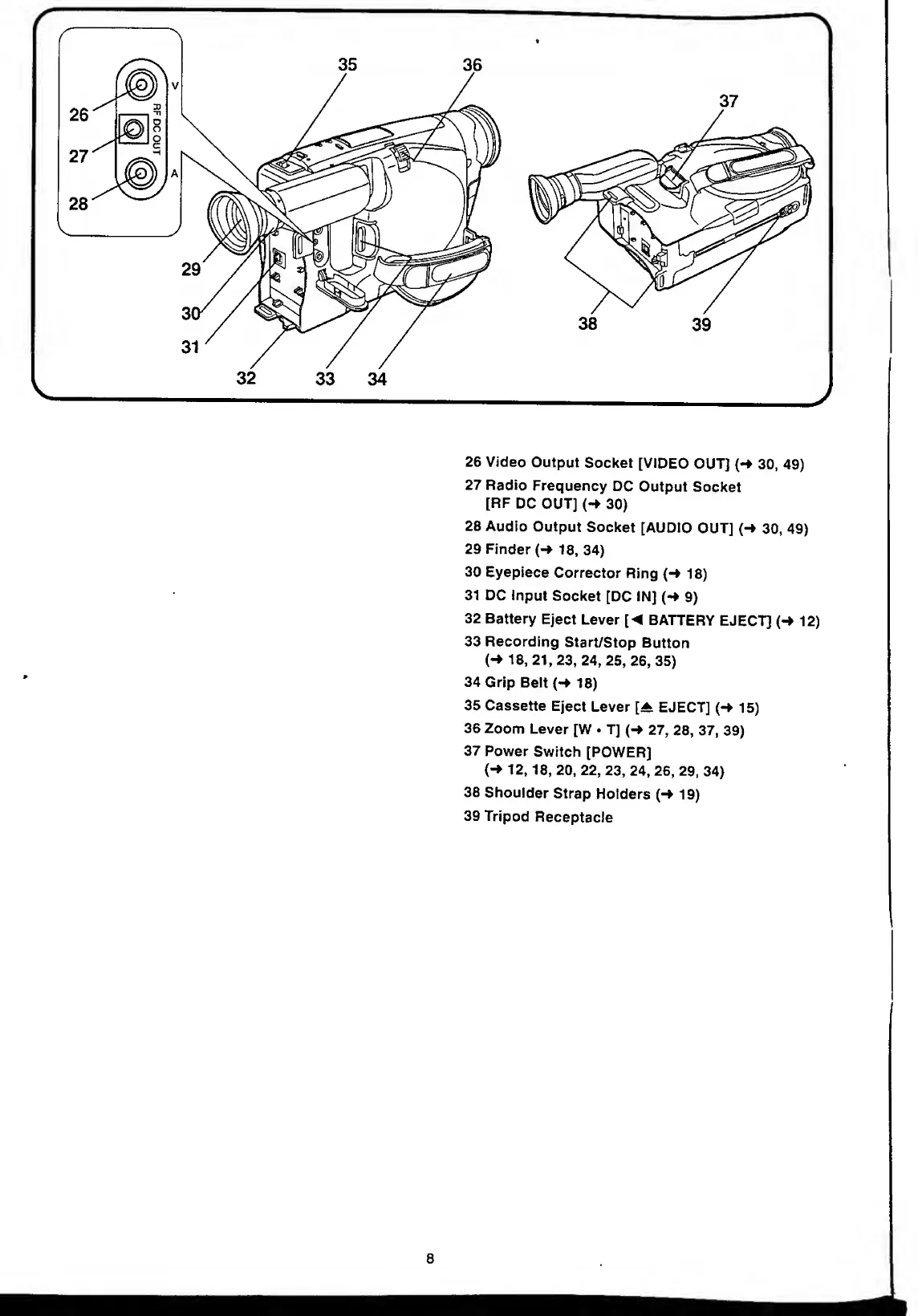

26 Video Output Socket [VIDEO OUT] {- ♦ 30, 49)
27 Radio Frequency DC Output Socket
[RF DC OUT] (-> 30)
28 Audio Output Socket [AUDIO OUT] (-> 30, 49)
29 Finder 18, 34)
30 Eyepiece Corrector Ring {-f 18)
31 DC Input Socket [DC IN] (- ♦ 9)
32 Battery Eject Lever [< BATTERY EJECT] (•* 12)
33 Recording Start/Stop Button
(* ♦ 18, 21,23, 24, 25, 26, 35)
34 Grip Belt («4 18)
35 Cassette Eject Lever [^ EJECT] (- ♦ 15)
36 Zoom Lever [W • T] (- ► 27, 28, 37, 39)
37 Power Switch [POWER]
(-> 12,18, 20, 22, 23, 24, 26, 29, 34)
38 Shoulder Strap Holders (-> 19)
39 Tripod Receptacle
8
