Panasonic NV-SD440EG/ - Page 59

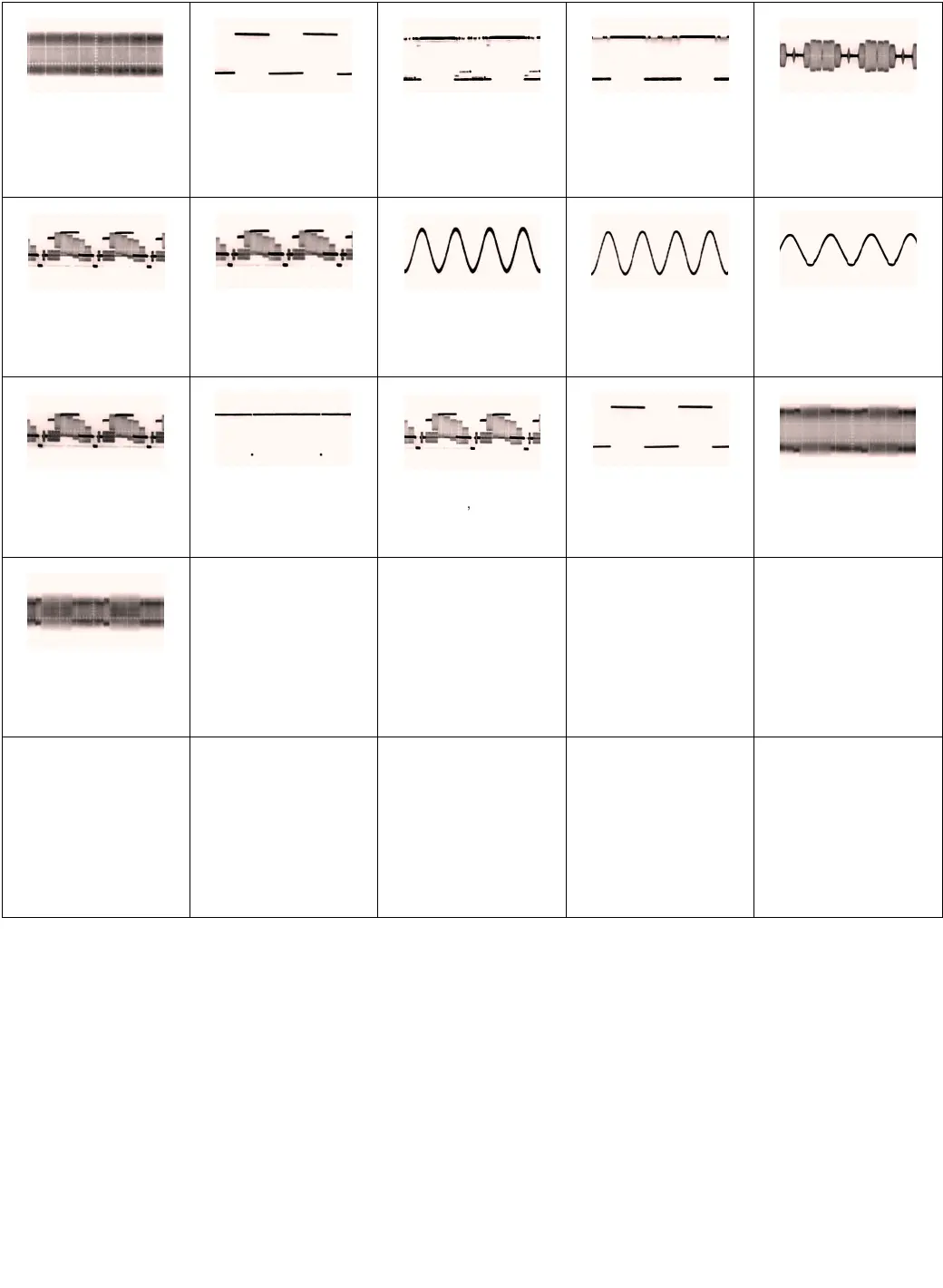

IC3001-20 PLAY
150mVp-p
(20µsec. div.)
IC3001-24 REC/PLAY
5.0Vp-p (10msec. div.)
IC3001-37 REC/PLAY
5.0Vp-p (5msec. div.)
IC3001-38 REC/PLAY
5.0Vp-p (5msec. div.)
IC3001-42,43 PLAY
0.4Vp-p (20µsec. div.)
IC3001-48 REC
1.0Vp-p (20µsec. div.)
IC3001-52 REC/PLAY
2.0Vp-p (20µsec. div.)
IC3001-73 REC
1.2Vp-p (5msec. div.)
IC3001-78 REC/PLAY
1.2Vp-p (5msec. div.)
Q4005-C REC
Q4007-C REC
9.0Vp-p (5µsec. div.)
Q4907-B REC/PLAY
Q4909-B REC/PLAY
1.0Vp-p (20µsec. div.)
PK7701-8,9 REC/PLAY
5.0Vp-p (10msec. div.)
PK7702-13,15 REC/PLAY
2.0Vp-p (20µsec. div.)
P501-5 REC/PLAY
5.0Vp-p (10msec. div.)
P501-6 REC
0.3Vp-p (5msec. div.)
P501-7 PLAY
0.5Vp-p (5msec. div.)
