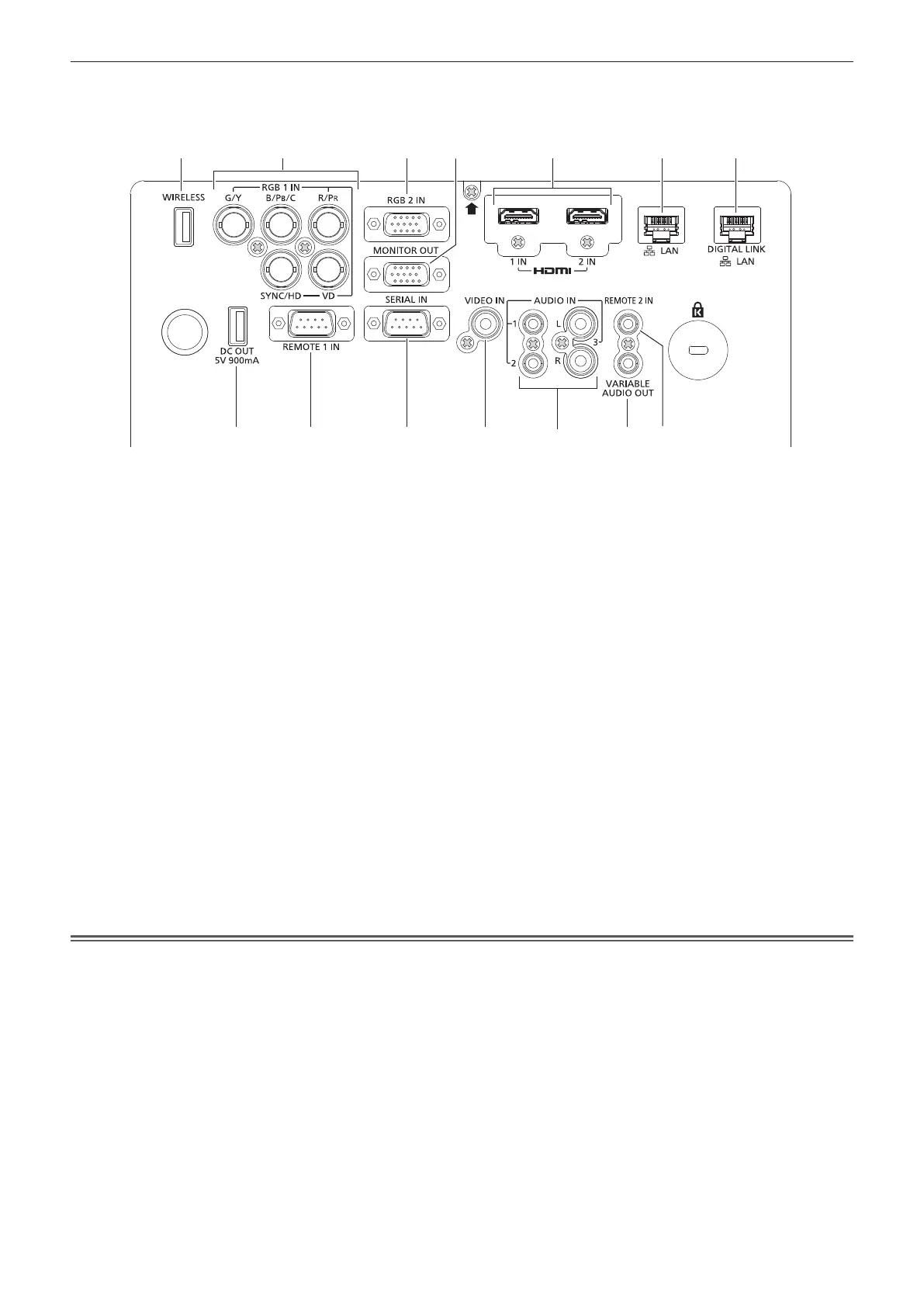

r Connecting terminals
1 2 3 4 5 6 7
8 109 11 12 13 14
1 <WIRELESS> terminal
Insert the optional wireless module (Model No.: ET-WML100)
directly to this terminal when using the wireless LAN function.
2 <RGB 1 IN> (<G/Y>, <B/P
B
/C>, <R/P
R
>, <SYNC/HD>, <VD>)
terminals
This is the terminal to input RGB signals, YC
B
C
R
/YP
B
P
R
signals,
or Y/C signals.
3 <RGB 2 IN> terminal
This is the terminal to input RGB signals or YC
B
C
R
/YP
B
P
R
signals.
4 <MONITOR OUT> terminal
This is the terminal to output analog RGB signals and YC
B
C
R
/
YP
B
P
R
signals that were input to the <RGB 1 IN> terminal or
the <RGB 2 IN> terminal to an external device. When the input
is switched to RGB1 or RGB2, the corresponding signals are
output.
5 <HDMI 1 IN> terminal/<HDMI 2 IN> terminal
This is the terminal to input HDMI signals.
6 <LAN> terminal
This is the LAN terminal to connect to the network.
7 <DIGITAL LINK/LAN> terminal
(Only for PT-EZ590, PT-EW650 and PT-EX620)
This is the LAN terminal to connect to the network. This is also
used when connecting a video signal transmission device via
the LAN terminal.
8 <DC OUT> terminal
This is a USB terminal only for power supply. (DC 5 V,
maximum 900 mA)
This can be used when power is to be supplied to a wireless
display adapter, etc.
9 <REMOTE 1 IN> terminal
This is a terminal to remotely control the projector using the
external control circuit.
10 <SERIAL IN> terminal
This is the RS-232C compatible terminal to externally control
the projector by connecting a computer.
11 <VIDEO IN> terminal
This is the terminal to input video signals.
12 <AUDIO IN 1> terminal/<AUDIO IN 2> terminal/
<AUDIO IN 3> terminal
This is the terminal to input audio. Left input <L> and right input
<R> are provided for the <AUDIO IN 3> terminal.
13 <VARIABLE AUDIO OUT> terminal
This is the terminal to output the input audio signal to the
projector.
14 <REMOTE 2 IN> terminal
This is the terminal to connect to the remote control by cable
when controlling the projector by wired remote control.
Attention
f
When a LAN cable is directly connected to the projector, the network connection must be made indoors.
