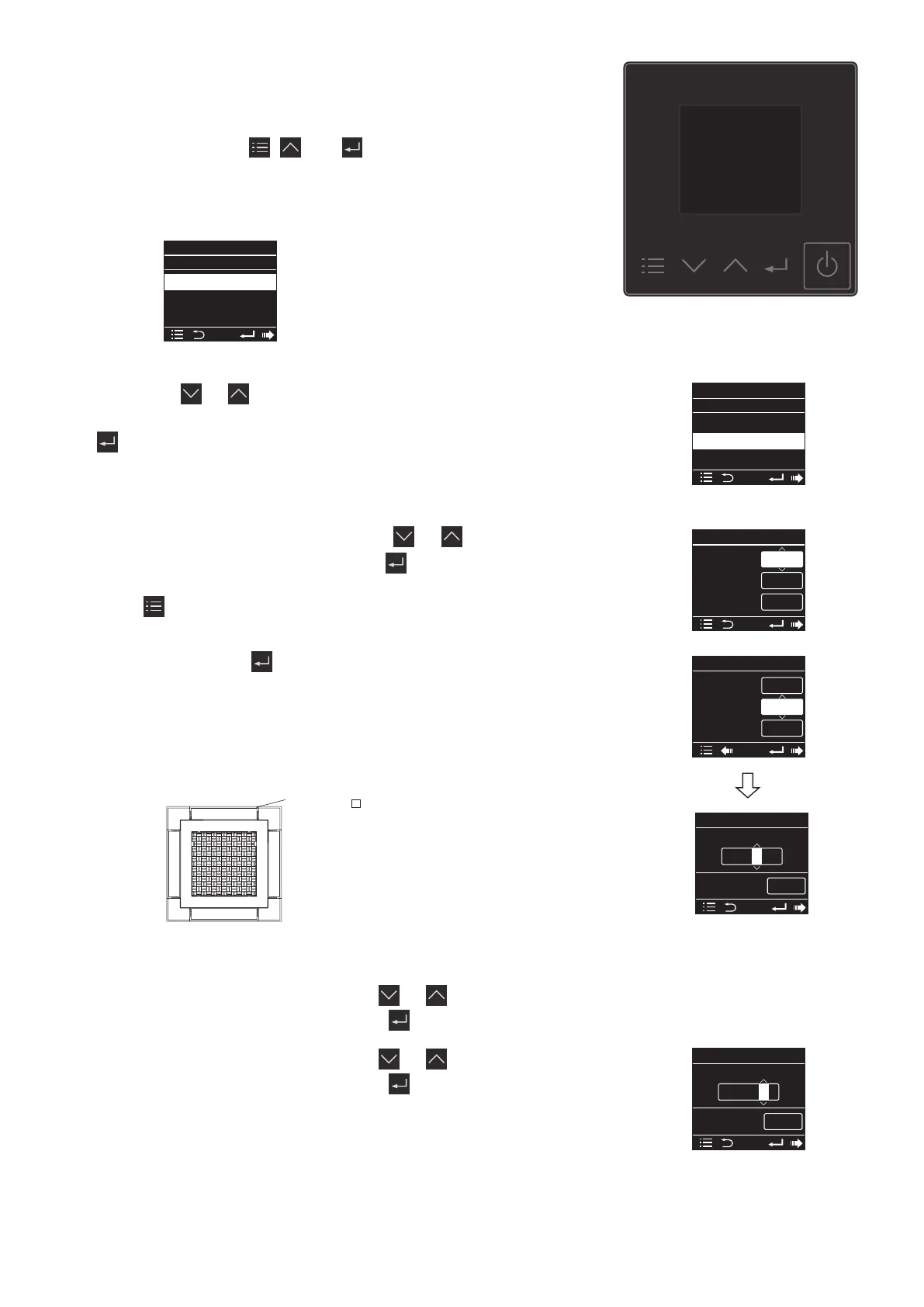

<Procedure of CZ-RTC6 series>
Stop the system before performing these steps.
1
Keep pressing the
, and buttons simultaneously
for 4 or more seconds.
The “Maintenance func” screen appears on the LCD
display.
Maintenance func
XX / XX
[ ][ ]
ECONAVI
nanoeX
RC. setting mode
2
Press the
or button to see each menu.
Select “Detailed settings” on the LCD display and press the
button.
The “Detailed settings” screen appears on the LCD display.
3
Select the “Unit no.” by pressing the
or button.
After selecting “Unit no.”, press the button and proceed to
Step
4
.
If the button is pressed, proceed to Step
6
.
4
Keep pressing the
button for 2 seconds or more during
selecting “Code no.”.
Change the “Code no.” one digit at a time so that it becomes
[0000XX] along with the following procedures.
XX=90
XX=91
XX=92
XX=93
(Outlet 1)
(Outlet 3)
(Outlet 2) (Outlet 4)
The square mark
(indented
)
Change the value by pressing the or button.
After changing the value, press the button and set the next digit.
Change the value by pressing the
or button.
After changing the value, press the button and set the next
digit.
Maintenance func
XX / XX
[ ][ ]
Simple settings
Detailed settings
Auto address
Detailed settings
[ ][ ]
Unit no.
Code no.
1-1
000010
Set data 00010001
Detailed settings
[ ][ ]
Unit no.
Code no.
1-1
000010
Set data 00010001
]
Code no.
[ ][ ]
000001 - XXXXXX
0 1 0
Set data 0001
0001
0 0 0
Code no.
[ ][ ]
000001 - XXXXXX
0 X 0
Set data 0001
0001
0 0 0
Fig. A
Fig. B
