Panasonic SA-PM19E - Disassembly of Side Panel L & R; Disassembly of Top Cabinet

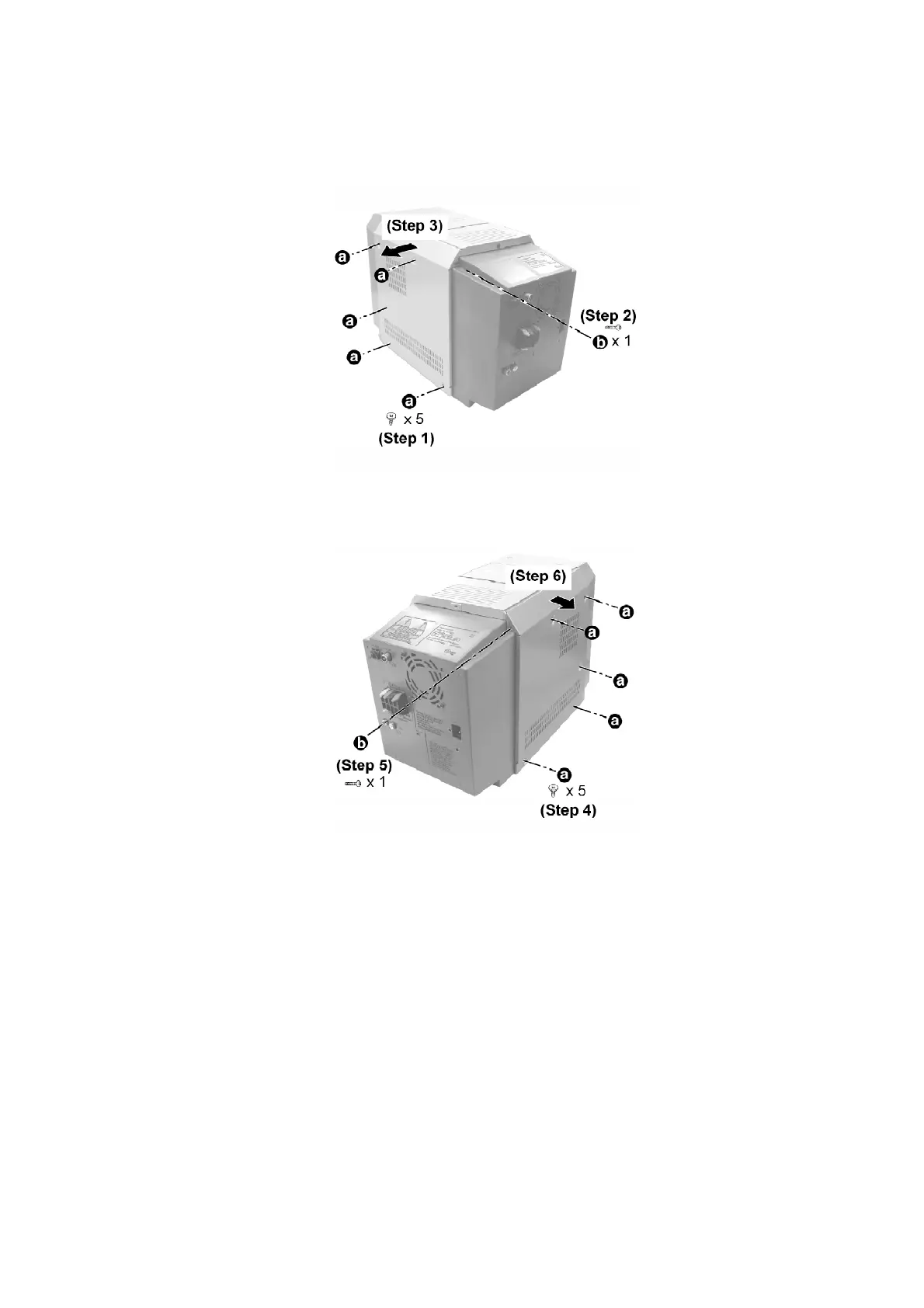

9.2. Disassembly of Side Panel L & R
Step 1 : Remove all the screws.
Step 2 : Remove the screw.
Step 3 : Remove the panel L as arrow shown.
Step 4 : Remove all the screws.
Step 5 : Remove the screw.
Step 6 : Remove the panel R as arrow shown.
9.3. Disassembly of Top Cabinet
- Follow the (Step 1) - (Step 6) of Item 9.2.
