Panasonic SA-PM19E - Troubleshooting Flowchart (CD Section Circuit)

Pin No. Mark I/O Function
87 MOTOR O MOTOR Control Output
L=OFF, H=ON
88 PLUNGER O Deck PLUNGER Control
Output L=OFF, H=ON
89 DECK_AD1 I DECK AD Input 1
90 DECK_AD2 I DECK AD Input 2
91 REG1 I Region Setting 1
92 KEY3 I KEY3 INPUT
93 KEY2 I KEY2 INPUT
94 KEY1 I KEY1 INPUT
95 VOL_JOG1 I Volume Jog 1
96 AVSS
-
Analog Power Supply
Input (Connect to GND)
97 N.C. - No Connection
98 VREF - Reference for A-D (5V)
99 AVCC - Analog Power Supply
Input
100 N.C. - No Connection

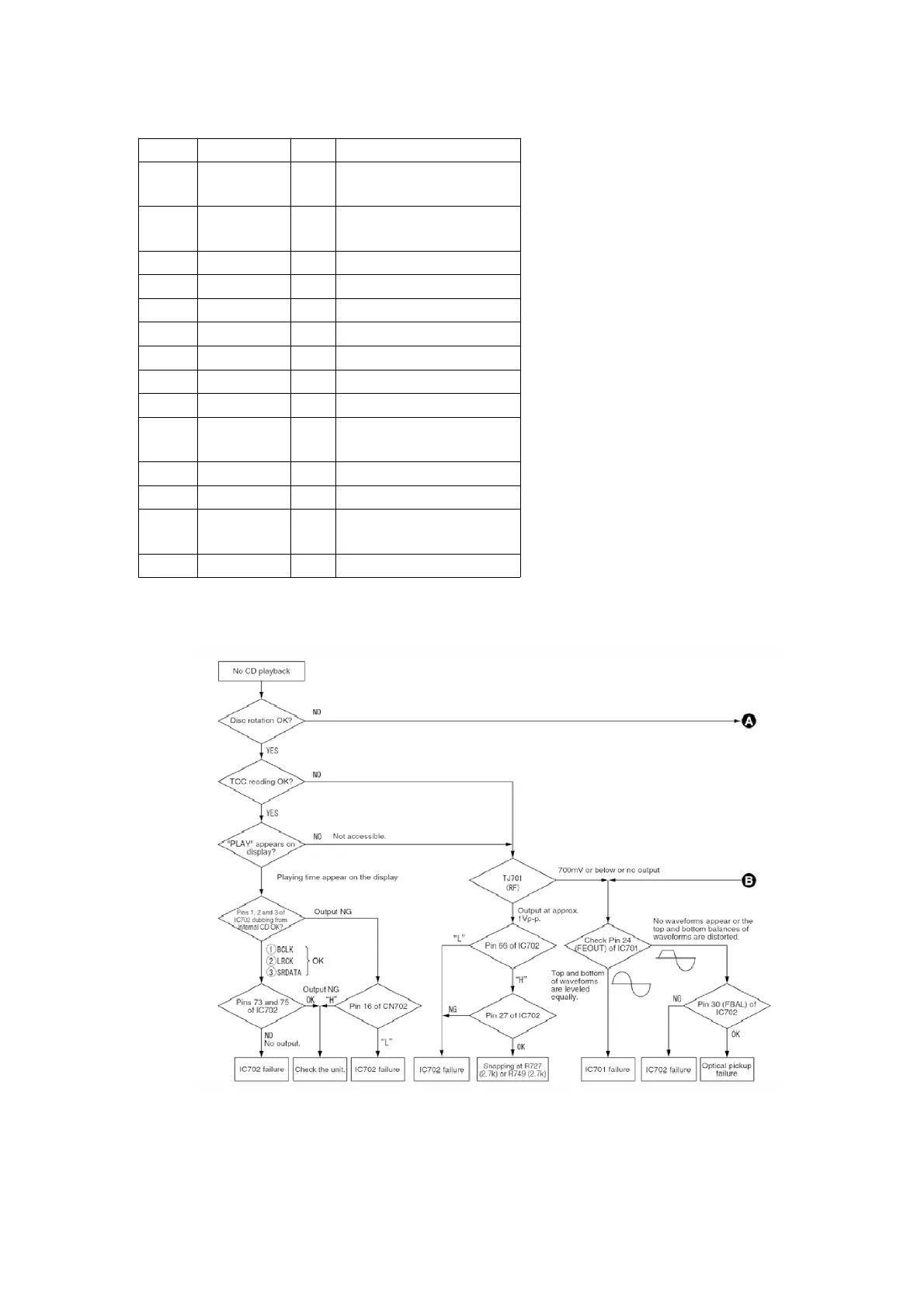

21. Troubleshooting Flowchart (CD Section Circuit)
96
