Panasonic SA-PM19E - Disassembly of Main P.C.B

- Follow the (Step 1) - (Step 4) of Item 9.5.

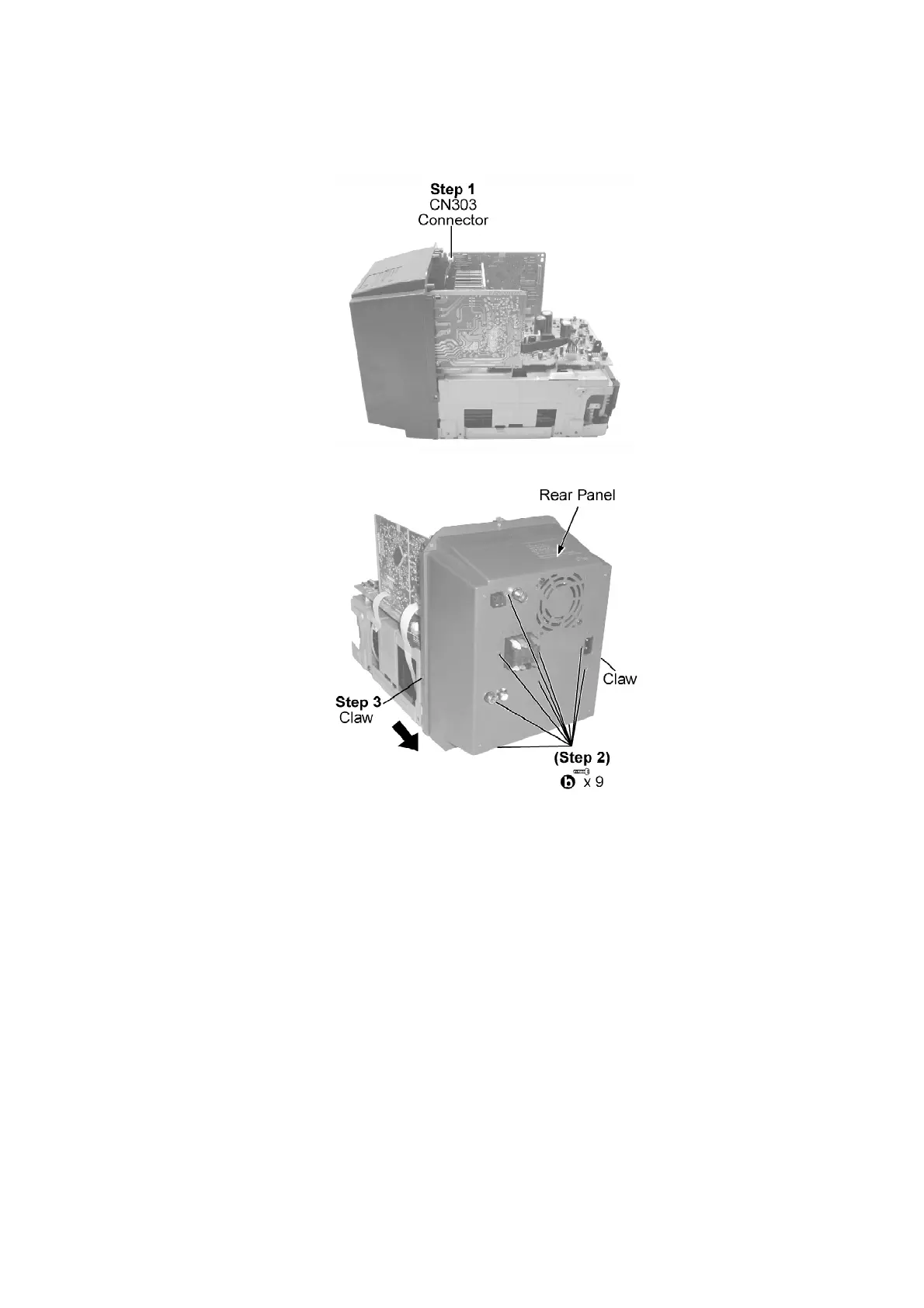

Step 1 : Detach the wire at CN303 Connector.
Step 2 : Remove all the screws.
Step 3 : Release the Claws and remove Rear Panel as arrows shown.
9.9. Disassembly of Main P.C.B.
- Follow the (Step 1) - (Step 6) of Item 9.2.
- Follow the (Step 1) - (Step 3) of Item 9.3.
- Follow the (Step 1) - (Step 4) of Item 9.5.
- Follow the (Step 1) - (Step 3) of Item 9.8.
16
