Panasonic SA-PM19E - Disassembly of Tact Switch P.C.B; Disassembly of Rear Panel

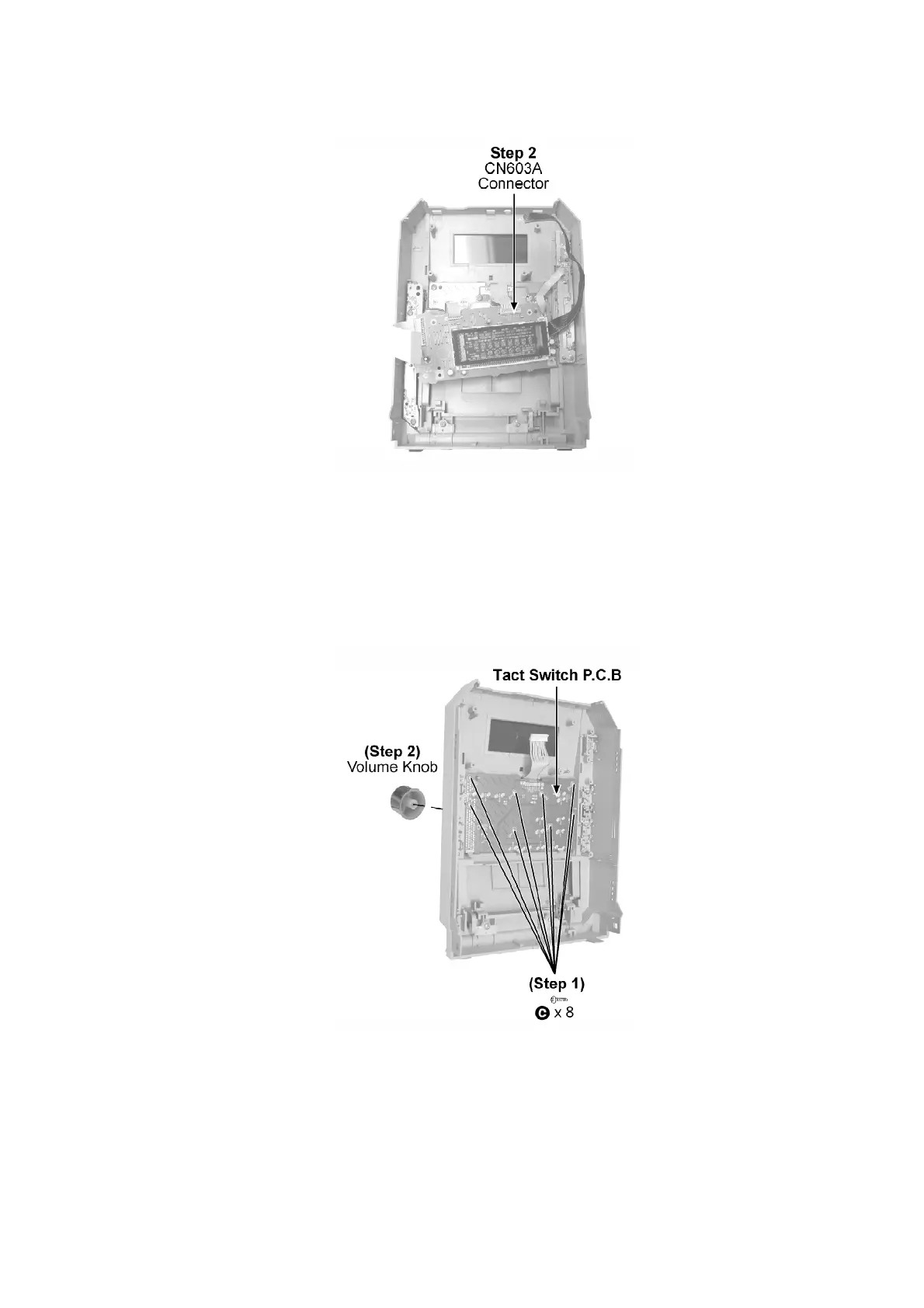

Step 2 : Detach the CN603A Connector.
9.7. Disassembly of Tact Switch P.C.B.
- Follow the (Step 1) - (Step 6) of Item 9.2.
- Follow the (Step 1) - (Step 3) of Item 9.3.
- Follow the (Step 1) - (Step 4) of Item 9.5.
- Follow the (Step 1) - (Step 2) of Item 9.6.
Step 1 : Remove all the screws.
Step 2 : Remove the Volume Knob.
9.8. Disassembly of Rear Panel
- Follow the (Step 1) - (Step 6) of Item 9.2.
- Follow the (Step 1) - (Step 3) of Item 9.3.
15
