Panasonic SA-PM19E - Page 14

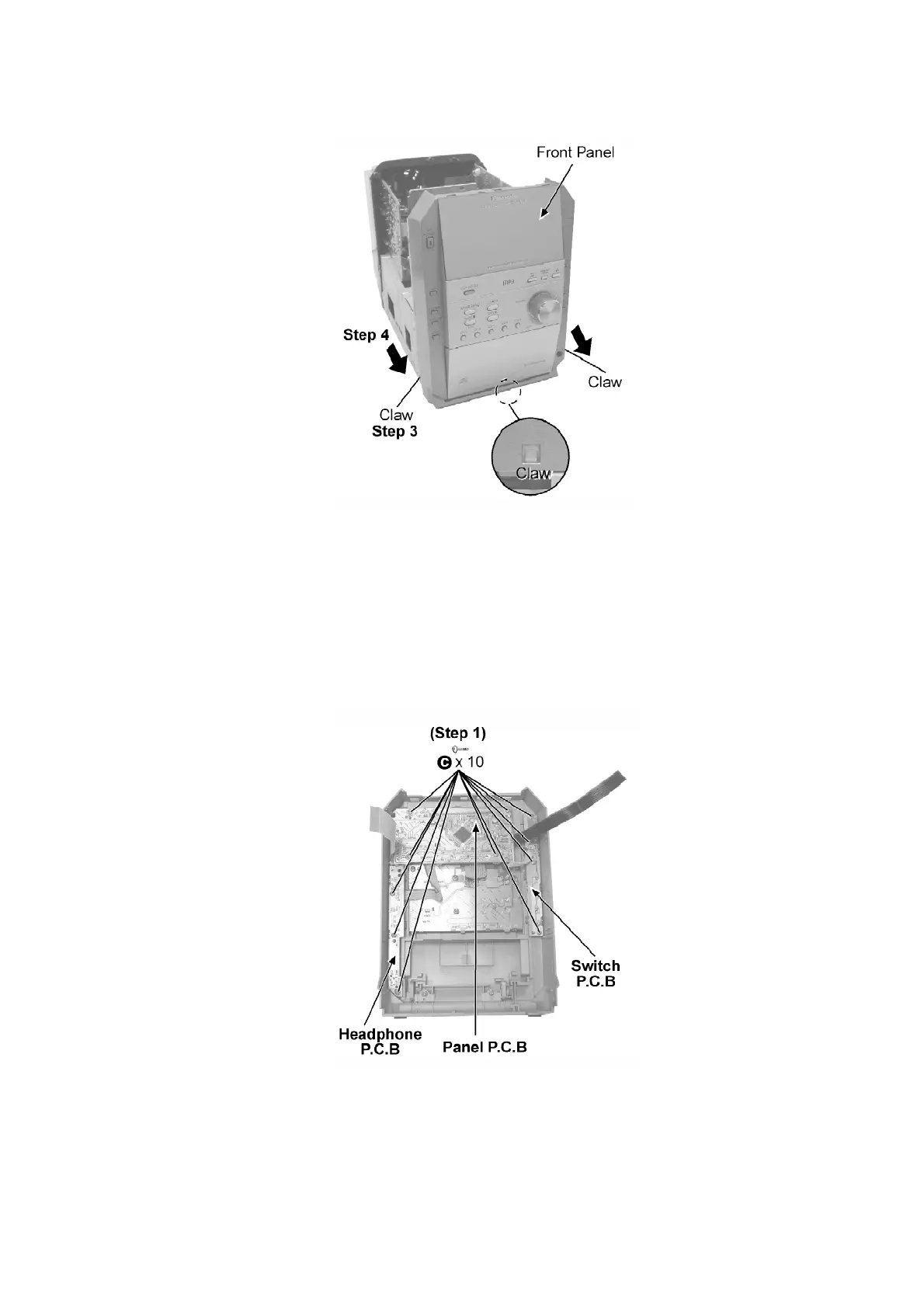

Step 3 : Release all the Claw.
Step 4 : Push the Front Panel as arrow shown.
9.6. Disassembly of Panel P.C.B., Headphone P.C.B. and Switch
P.C.B.
- Follow the (Step 1) - (Step 6) of Item 9.2.
- Follow the (Step 1) - (Step 3) of Item 9.3.
- Follow the (Step 1) - (Step 4) of Item 9.5.
Step 1 : Remove all the screws.
14
