Panasonic SA-PM19E - Measurement and Adjustments

12.2. Operation Check without Cassette Tape

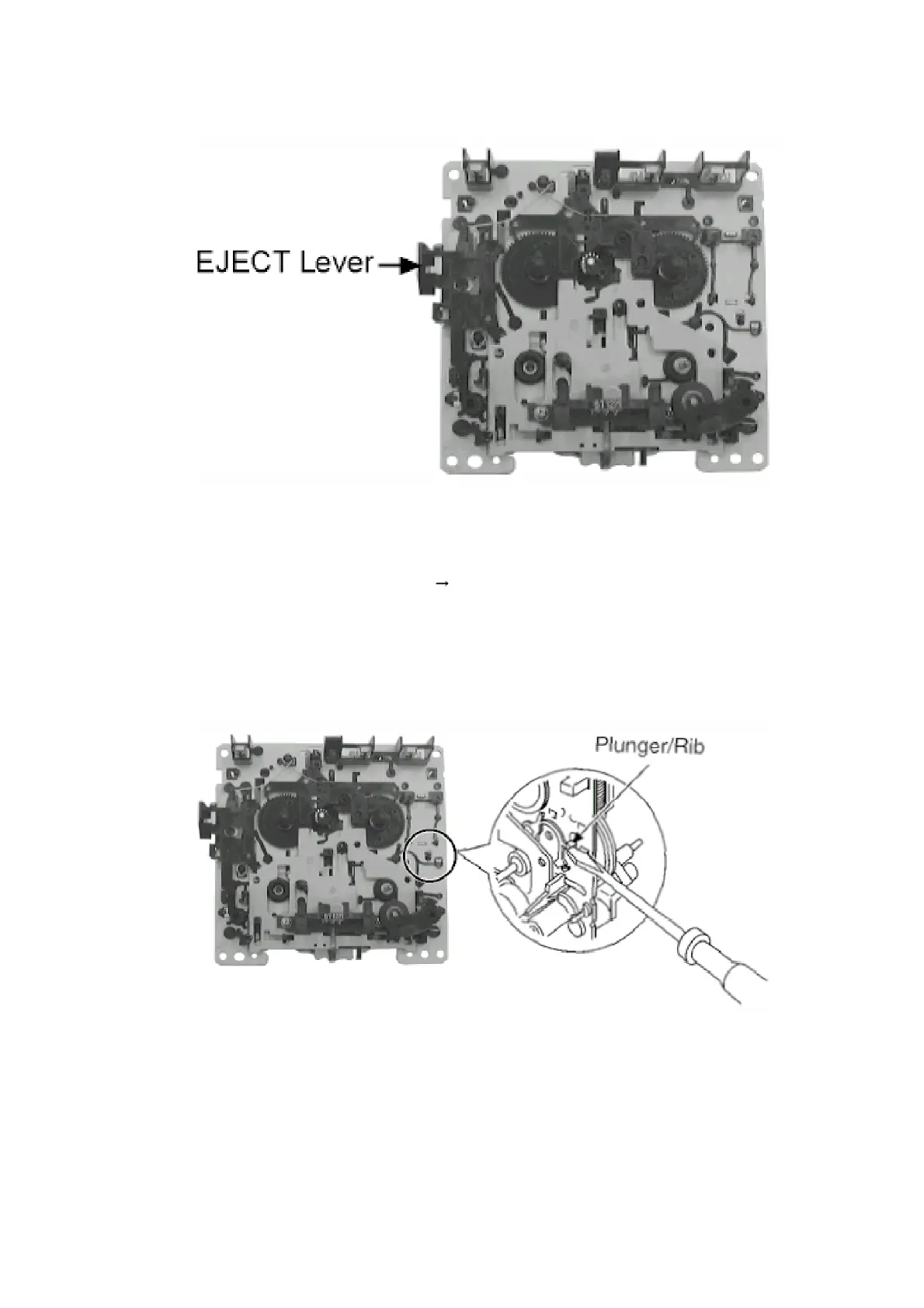

1. Pull up the EJECT lever using a rubber band. (Cf. Fig. 6)
2. Supply DC5V to MOTOR. ( MOTOR rotates.)
3. Lift up the mechanism unit’s plunger/rib with the tip of a negative
screwdriver, and operate the unit in the same timing as /
supplying the power. (Cf. Fig. 7) /
Fig. 7
13. Measurement And Adjustments
13.1. Tuner/CD Sections
No adjustment required.
13.2. Cassette Deck Section
79
