Panasonic SA-PM19E - Disassembly of Transformer P.C.B

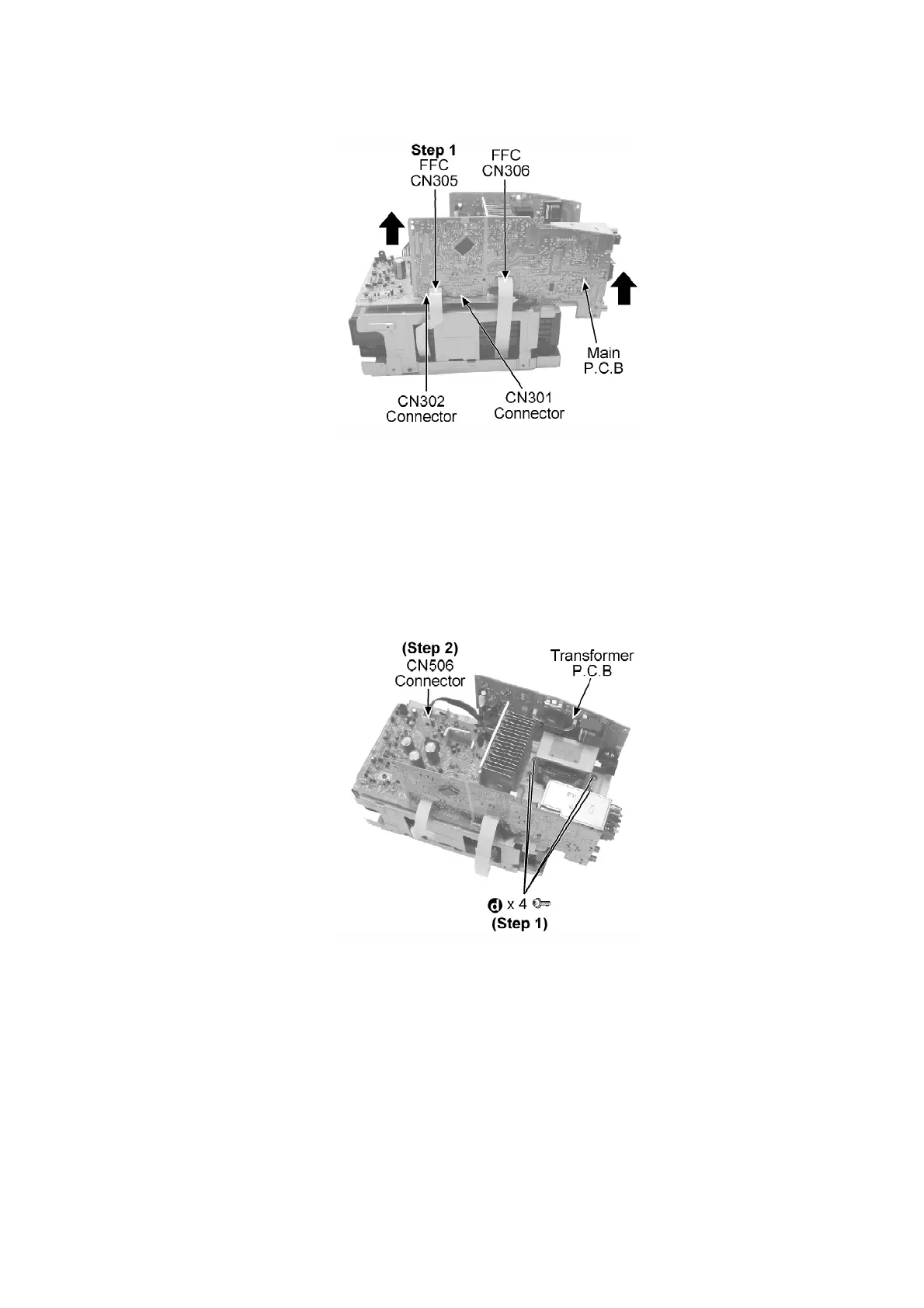

Step 1 : Remove the CN301, CN302 Connector and FFC CN305, CN306 .
Step 2 : Remove the Main P.C.B as arrow shown.
9.10. Disassembly of Transformer P.C.B.
- Follow the (Step 1) - (Step 6) of Item 9.2.
- Follow the (Step 1) - (Step 3) of Item 9.3.
- Follow the (Step 1) - (Step 4) of Item 9.5.
- Follow the (Step 1) - (Step 3) of Item 9.8.
Step 1 : Remove all the screws.
Step 2 : Detach the CN506 Connector.
9.11. Disassembly of Speaker Terminal P.C.B
- Follow the (Step 1) - (Step 6) of Item 9.2.
- Follow the (Step 1) - (Step 3) of Item 9.3.
- Follow the (Step 1) - (Step 4) of Item 9.5.
- Follow the (Step 1) - (Step 3) of Item 9.8.
- Follow the (Step 1) - (Step 2) of Item 9.9.
17
