Panasonic SA-PM19E - Disassembly of Front Panel

Step 2 : Release the clutch.
Step 3 : Remove all the screws.
Step 4 : Press the lever as arrow shown and remove the Deck Mechanism.
9.5. Disassembly of Front Panel
- Follow the (Step 1) - (Step 6) of Item 9.2.
- Follow the (Step 1) - (Step 3) of Item 9.3.

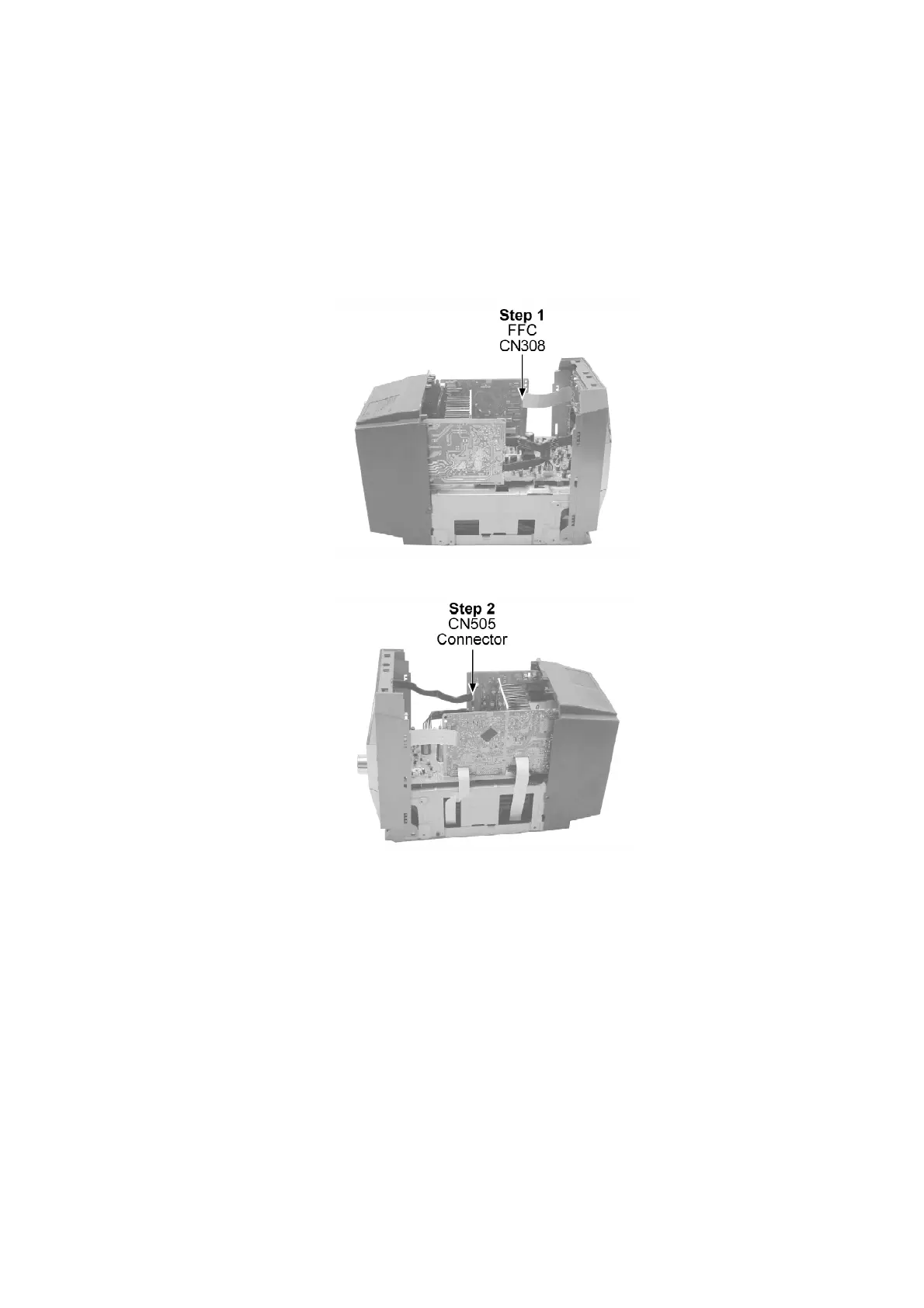

Step 1 : Detach the FFC Board (CN308).
Step 2 : Detach the wire at CN505 Connector.
13
