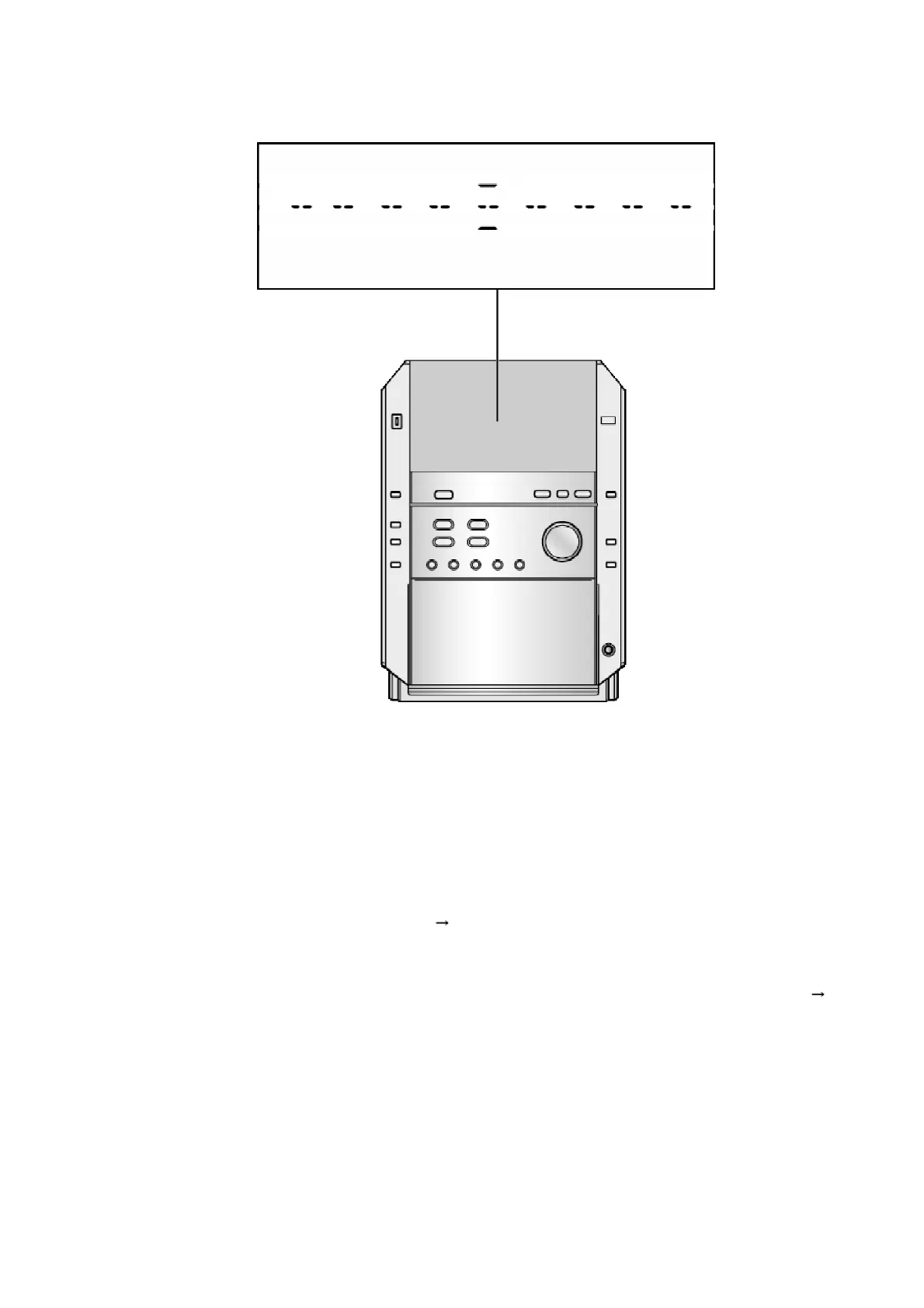

(Note) In the case that you unplug from AC outlet after this mode was set, then plug to AC
again, a cold start shall begin. / And “- - - - - - - - -” is displayed in the FL for 2 seconds.
12. Procedure for Checking Operation of Individual
Parts of Cassette Mechanism Unit
12.1. Operation Check with Cassette Tape
1. Pull up the EJECT lever using a rubber band. (Cf. Fig. 6)
2. Supply DC5V to MOTOR. ( MOTOR rotates.) (Cf. Fig. 5)
3. Insert a cassette tape to the unit.
4. Supply DC9V to the plunger, and turn the power ON and OFF. (
Power +PL, -PL) (Cf. Fig. 5)
A. FWD PLAY: Supply the plunger power in a flash. (ON: approx.
5msec)
B. FWD FF: Supply the plunger power in a flash at PLAY mode.
(ON: approx. 5msec)
77
To Next Page
