13.2.1. Requirements
- Test tape (QZZCFM) (QZZCWAT)
- Normal blank cassette tape (QZZCRA)
- Frequency indicator
- Oscilloscope
- Electrical voltmeter
- Headphone jack output jig (Cf. Fig. 8)
13.2.2. Setting of Unit
- VOLUME: MAX
13.2.3. Preparations
1. Apply [9. Assembling and Disassembling].
2. Remove 4 screws from the mechanism unit to disassemble. [9.
Assembling and Disassembling].
3. Connect the headphone jack output jig (Cf. Fig. 8) to headphone
jack.

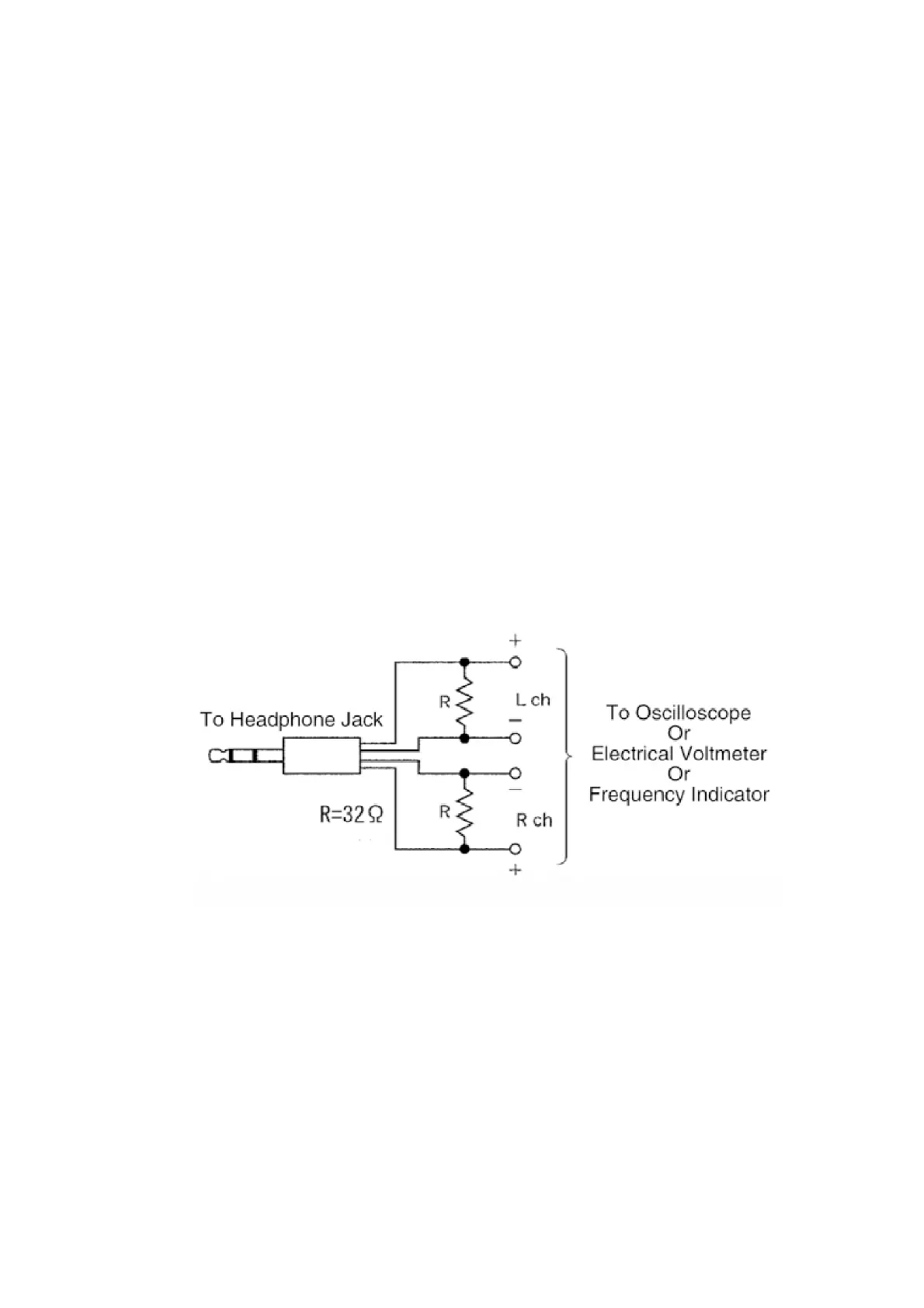

Fig. 8
Fig. 9
