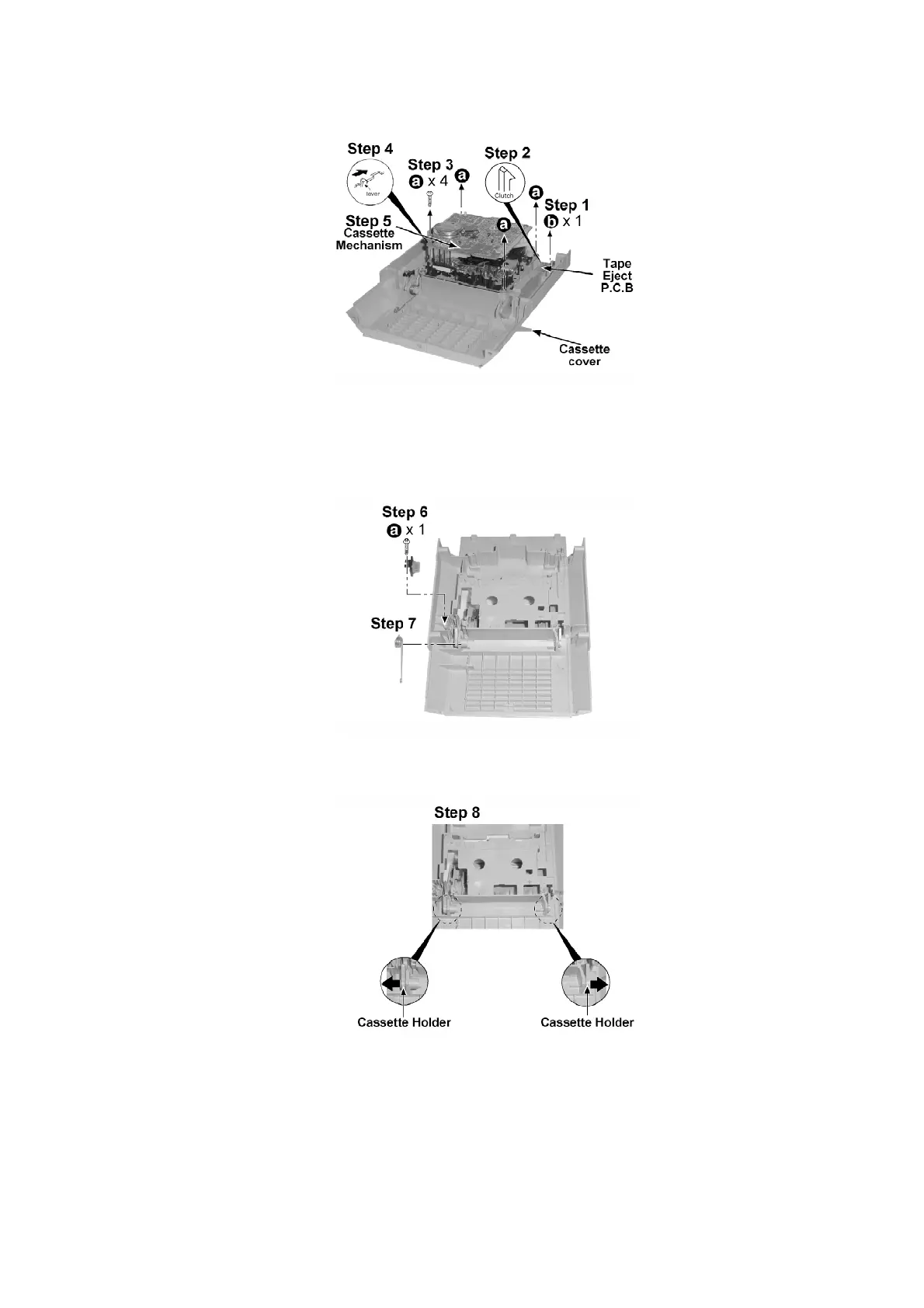

Step 1 : Remove the screw.
Step 2 : Release the clutch.
Step 3 : Remove all the screws.
Step 4 : Press the lever to open the cassette cover.
Step 5 : Remove the cassette mechanism unit.
Step 6 : Remove the screw and damper gear.
Step 7 : Remove the cassette open spring.
Step 8 : Pull out the cassette holder to the direction of the arrow shown.
9.16. Procedure for Replacing Pinch Roller and Head Block
(Cassette Mechanism Unit)
- Follow the (Step 1) - (Step 6) of Item 9.2.
