Panasonic SA-VK31EE - Operation Checks and Main Component Replacement; 9 Operation Checks and Main Component Replacement Procedures

Some chassis components may have sharp edges.
Be careful when disassembling and servicing.
9 Operation Checks and Main Component Replacement
Procedures
“ATTENTION SERVICER”
1. This section describes procedures for checking the operation of the major printed circuit boards and replacing the
main components.
2. For reassembly after operation checks or replacement, reverse the respective procedures.
Special reassembly procedures are described only when required.

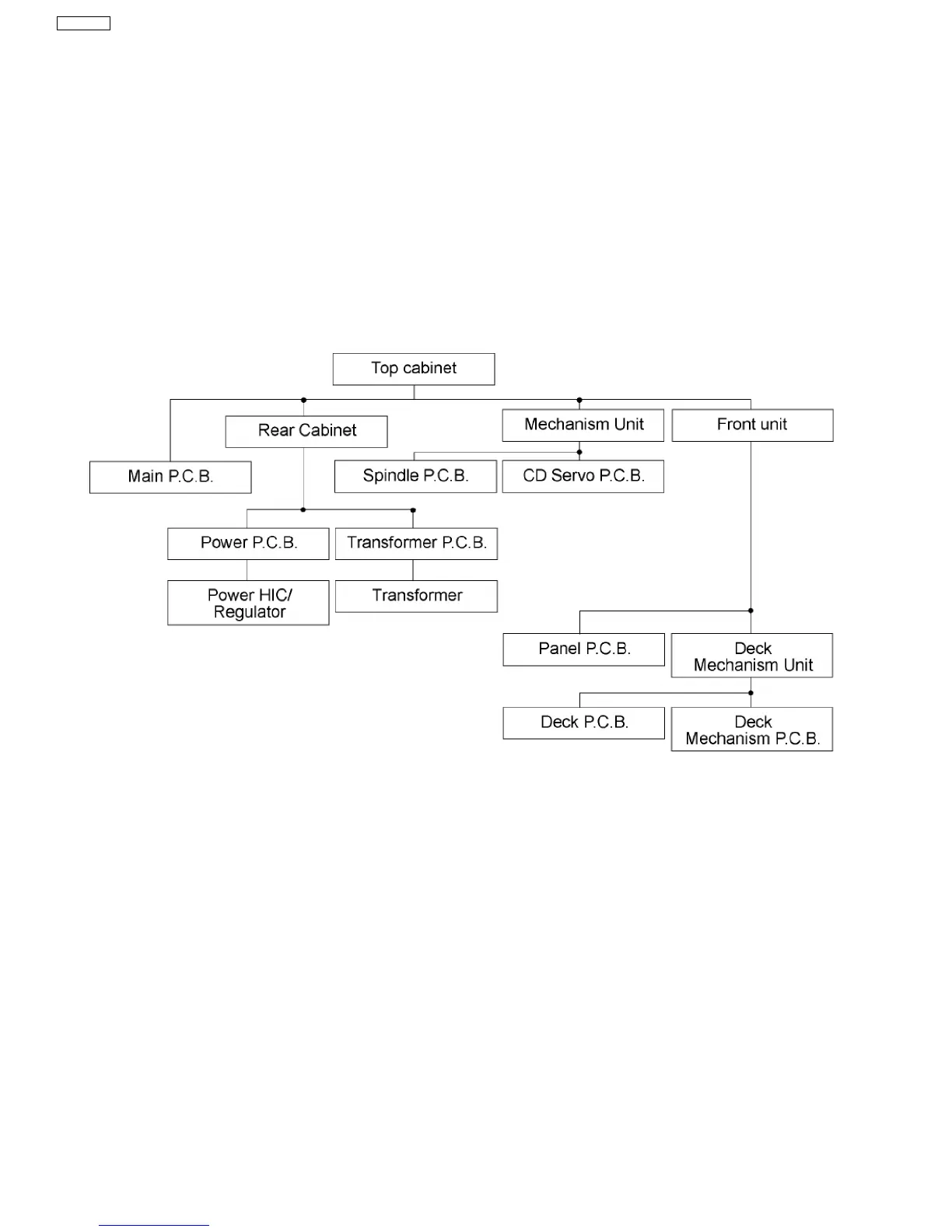

3. Select items from the following index when checks or replacement are required.
Warning:
This product uses a laser diode. Refer to caution statement Precaution of Laser Diode.
10
SA-VK31EE
