9.8. Replacement for the cassette
lid ass’y
· Follow the (Step 1) - (Step 2) of Item 9.1 - Disassembly of
Top Cabinet and Rear Panel

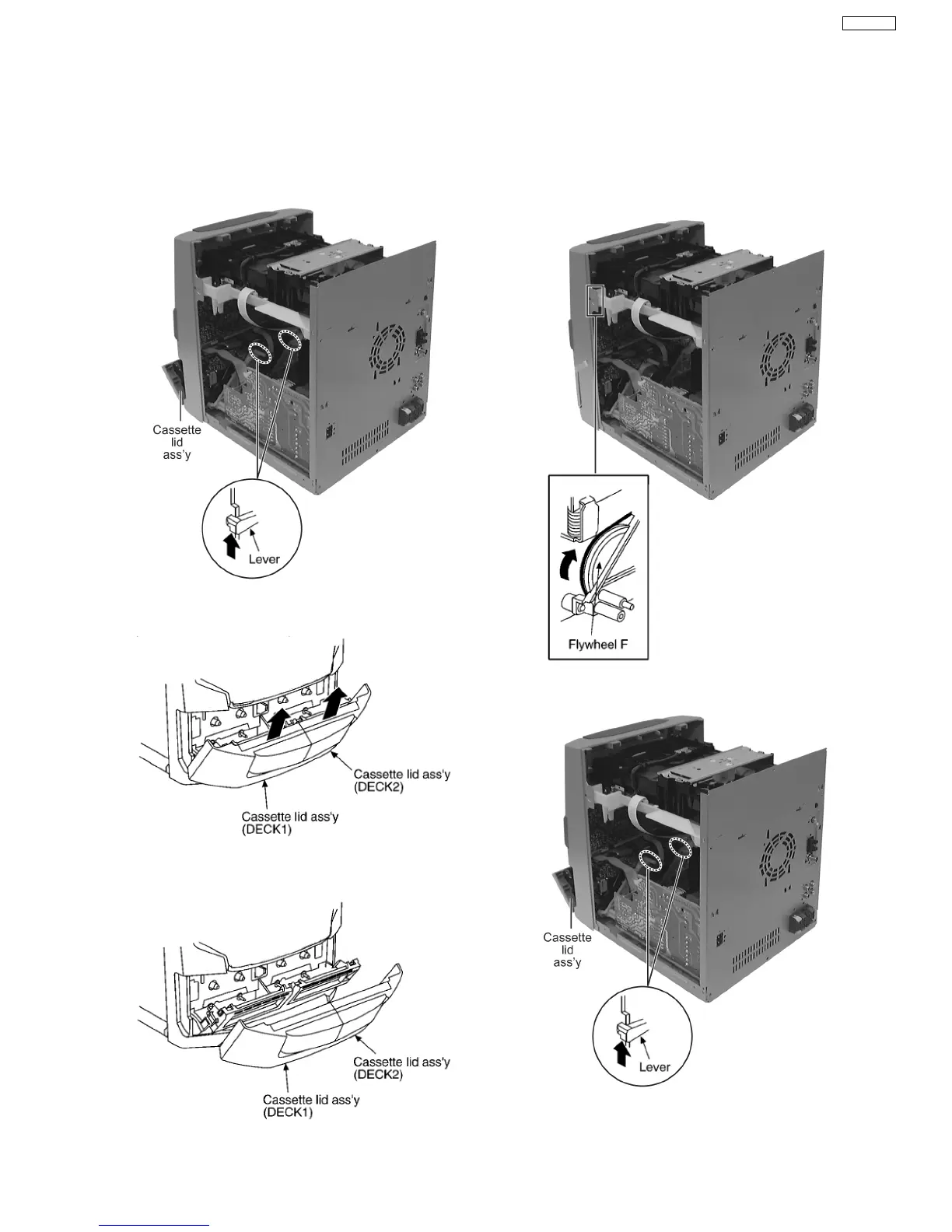

Step 1 Push the lever upward, open the cassette lid ass’y. (For
DECK1 and DECK2)
Step 2 Lift up the cassette lid ass’y in the direction of arrow.
(For DECK1 and DECK2).
Step 3 Remove the cassette lid ass’y. (For DECK1 and
DECK2).
9.9. Measure for tape trouble
· Follow the (Step 1) - (Step 2) of Item 9.1 - Disassembly of
Top Cabinet and Rear Panel
Step 1 If a cassette tape cannot be removed from the deck
since the tape is caught by the capstan or pinch roller during
playback or recording, rotate the flywheel F in the direction of
the arrow to remove the tape.
Step 2 Push the lever upward and open the cassette lid ass’y.
Take the cassette tape off.
