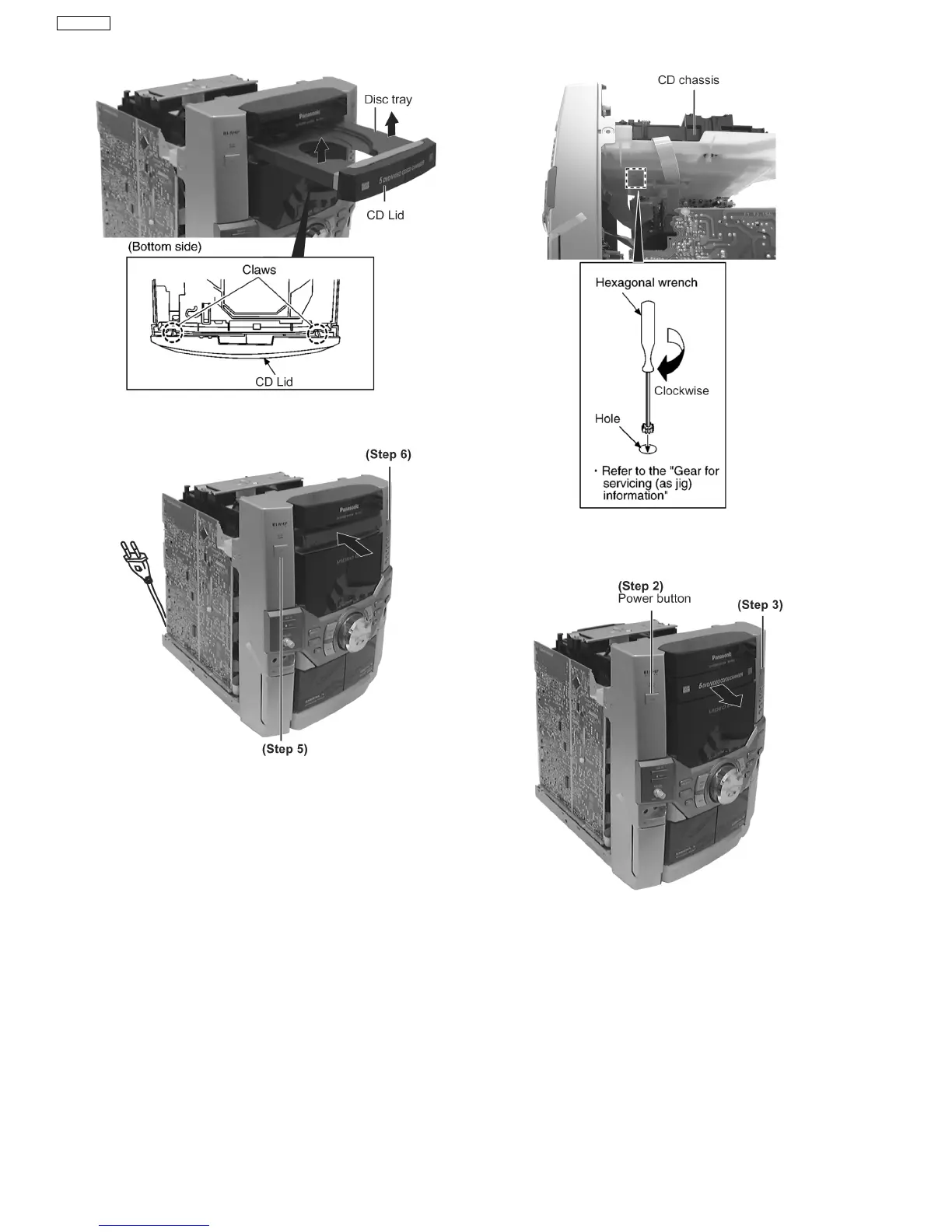

Step 4 Release the 2 claws, and then remove the CD Lid.
Step 5 Press the POWER button to turn the power on.
Step 6 Press the OPEN/CLOSE button, the disc tray will be
close.
[Open the disc tray manually (Using service tools)]
Step 1 Insert the gear tool into the hole on the underside of CD
chassis and then rotate in the direction of arrow. The disc tray
will be open.
Step 2 Release the 2 claws, and then remove the CD lid cover.
12
SA-VK31EE
To Next Page
