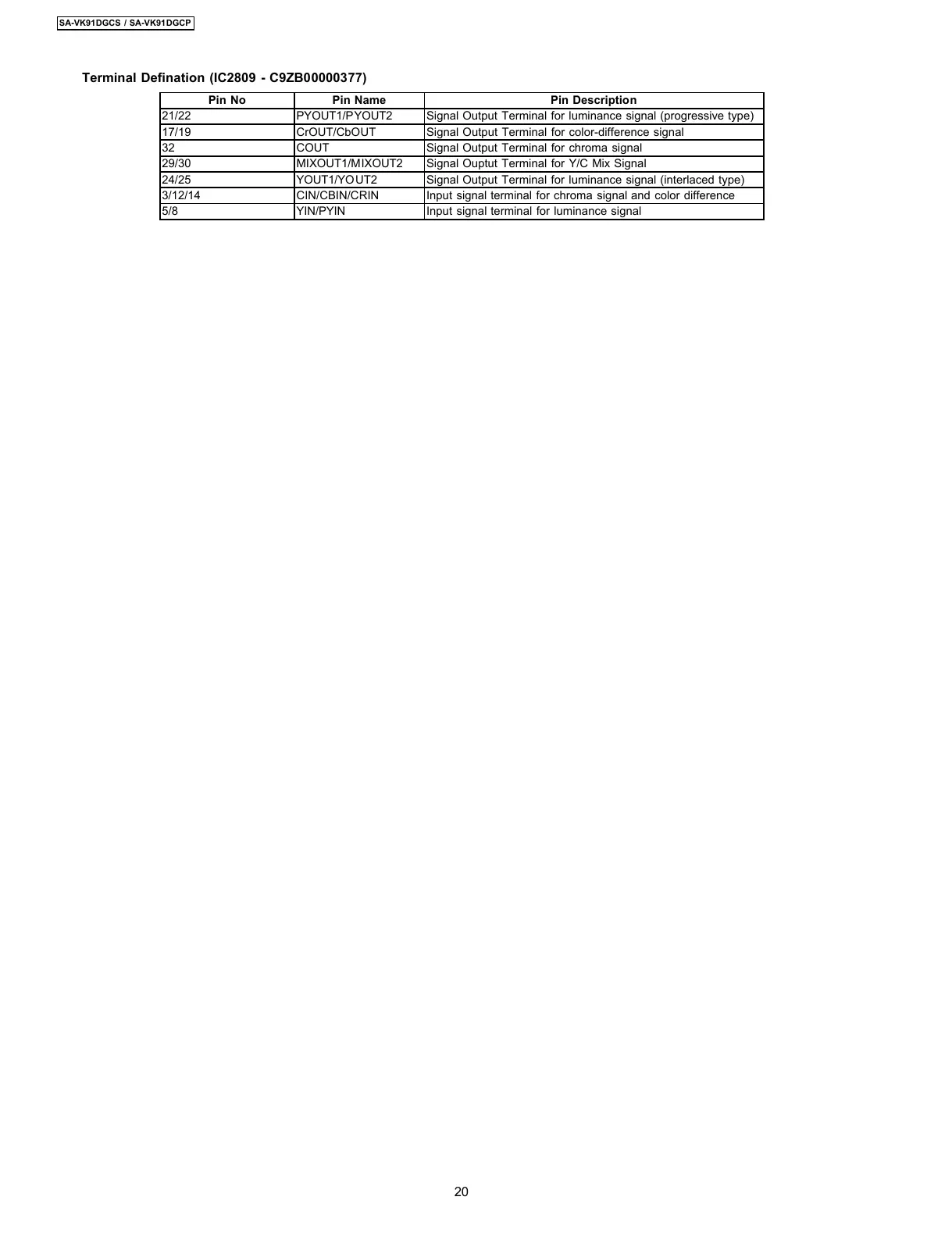

Terminal Defination (IC2809 - C9ZB00000377)
Pin No Pin Name Pin Description
21/22 PYOUT1/PYOUT2 Signal Output Terminal for luminance signal (progressive type)
17/19 CrOUT/CbOUT Signal Output Terminal for color-difference signal
32 COUT Signal Output Terminal for chroma signal
29/30 MIXOUT1/MIXOUT2 Signal Ouptut Terminal for Y/C Mix Signal
24/25 YOUT1/YOUT2 Signal Output Terminal for luminance signal (interlaced type)
3/12/14 CIN/CBIN/CRIN Input signal terminal for chroma signal and color difference
5/8 YIN/PYIN Input signal terminal for luminance signal
20
SA-VK91DGCS / SA-VK91DGCP
